L-Shaped Modular Sectional Sofa Specifications

SEC-L4-LGR-001

代码:L9VN51V1
获取供应商报价
2026-09-08 14:05人气: 6
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

SEC-L4-LGR-001

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions3600 x 1800 x 850 mm
Seat Cushion Thickness180 mm
Back Cushion Thickness160 mm
Leg Height / Floor Clearance160 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Product net weight180 kg
Total static load capacity600 kg
Recommended maximum user count4
Foam density (seat cushions)45 kg/m³
Foam rebound rate60%
Seat surface durability cycles50000
Back cushion fill density30 kg/m³
Frame static load rating800 kg
Warranty period3 years
Seat Foam Density / Rebound40 kg/m³ / 60%
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Outer upholstery1.2mm thick matte faux leather
Seat cushion coreHigh-resilience polyurethane foam
Backrest coreMedium-density polyurethane foam
Inner frameKiln-dried solid pine + plywood structure
Support feetReinforced black polypropylene
Seam constructionContrast light gray stitched edge piping
Lumbar pillow fillDown-mixed polyester fiber fill
Module connection hardwareHeavy-duty metal interlocking brackets
Upholstery abrasion resistance50000 Martindale cycles
Timber Frame Section / MoisturePrimary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing SpecificationSinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector SpecificationReference M8-M10 with at least 1 mechanical fixing per leg
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Modular configuration4 interlocking modules that rearrange to right or left chaise layouts
Fixed back supportTall upright fixed backrests with attached lumbar pillows for lower back support
Block armrest supportWide padded left armrest functioning as an arm rest and side surface
Chaise lounge extensionExtended right chaise segment for full leg rest and reclined seating
Low-floor profileLow-profile base with minimal ground clearance for modern minimalist aesthetic
Module stabilityInterlocking metal brackets prevent shifting between connected segments during use
Detachable throw pillows4 matching rectangular lumbar pillows that can be repositioned for individual comfort
Surface maintenanceSmooth non-porous upholstery that wipes clean with mild detergent and soft cloth
Cushion Service ConfigurationRecommended 2removable/replaceable cushion methods
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Module Carton Dimensions2200× 1050× 850 mm
Reference Packaging Volume1.8 m³/item
Reference Packaged Gross Weight110 kg/item
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open-plan living roomSuits modern minimalist residential living spaces requiring 4-person seating
Loft apartment loungeFits open urban loft layouts with space for extended chaise seating
Office reception areaAppropriate for casual contemporary office waiting and guest reception zones
Showroom displayWorks as a display piece for modern home furniture retail showrooms
Small family media roomProvides plush multi-position seating for home movie and relaxation use
Recommended pairingPairs with low-profile light-toned coffee tables and neutral area rugs
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 12520:2015Domestic furniture seating strength, durability and safety performance benchmark
EN 1021-1:2014Upholstered furniture cigarette ignition resistance safety benchmark
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to inner frame quality inspection
GB/T 16799-2008Faux leather material performance standard, applicable to upholstery materialAcceptance
GB 18584-2001Indoor decoration material hazardous substance limit, applicable to formaldehyde emission testing
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to inner frame quality inspection;
2. GB/T 16799-2008:Faux leather material performance standard, applicable to upholstery materialAcceptance;
3. GB 18584-2001:Indoor decoration material hazardous substance limit, applicable to formaldehyde emission testing;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · SEC-L4-LGR-001

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · SEC-L4-LGR-001

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · SEC-L4-LGR-001打开导出工具

页面快速操作

发布采购询价

产品描述

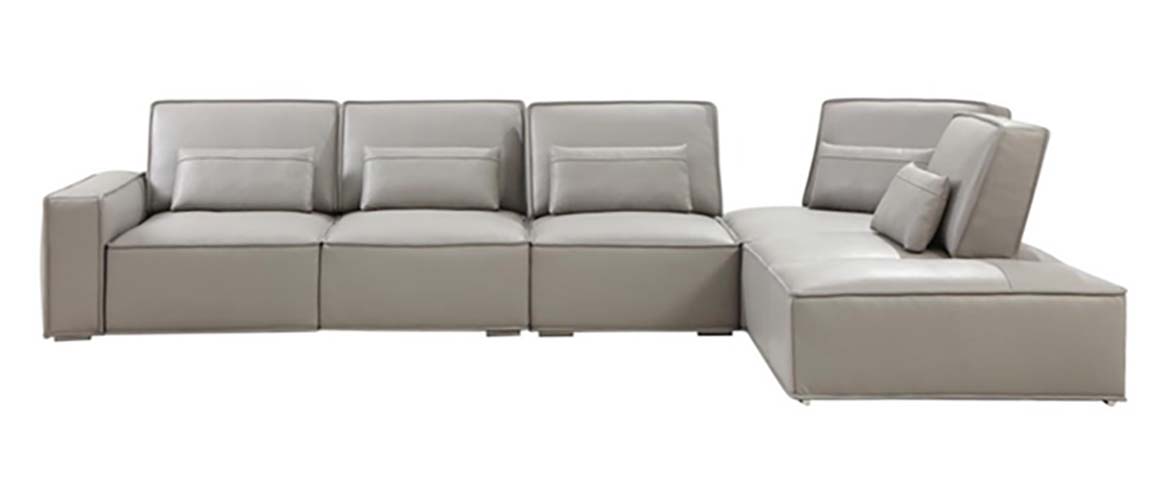

This L-Shaped Modular Sectional Sofa, model SEC-L4-LGR-001, delivers a streamlined block-style design in a consistent light gray matte finish, defined by clean linear silhouettes, contrast light gray stitched edge piping along upholstery seams, and a low-profile base that aligns with modern minimalist aesthetic principles. The configuration creates a spacious, structured seating layout anchored by a wide padded armrest and extended lounge segment, with visual balance suited to open, uncluttered floor plans. Built for long-term regular use, the sofa features a kiln-dried solid pine and plywood inner frame supported by reinforced black polypropylene feet. Its outer upholstery is 1.2mm thick matte faux leather rated for 50000 Martindale abrasion cycles, with seat cushions filled with 45 kg/m³ high-resilience polyurethane foam offering 60% rebound rate, and back cushions filled with 30 kg/m³ medium-density polyurethane foam. Heavy-duty metal interlocking brackets connect individual modules to prevent shifting during use, while four matching rectangular lumbar pillows filled with down-mixed polyester fiber come attached as standard support. The sofa comprises four interlocking modules that can be rearranged to support either right or left chaise layouts, allowing flexible setup to match room orientation. The tall upright fixed backrests and included lumbar pillows deliver targeted lower back support, while the wide padded left armrest doubles as a flat side surface for resting items. The extended chaise segment enables full leg rest for reclined seating, and the detachable lumbar pillows can be repositioned to suit individual comfort preferences. The unit supports a maximum of four users, with tested seat surface durability across 50000 use cycles and 600 kg total static load capacity. This sectional is well suited for open-plan residential living rooms, urban loft lounge spaces, small family media rooms, casual contemporary office reception areas, and modern furniture showroom displays. It pairs seamlessly with low-profile light-toned coffee tables and neutral area rugs for a cohesive interior scheme. For procurement planning, note the sofa ships across two cartons per set, with a 40-minute assembly time per unit. It carries a net weight of 180 kg, so delivery routes and access points should be confirmed ahead of installation to avoid placement barriers.
