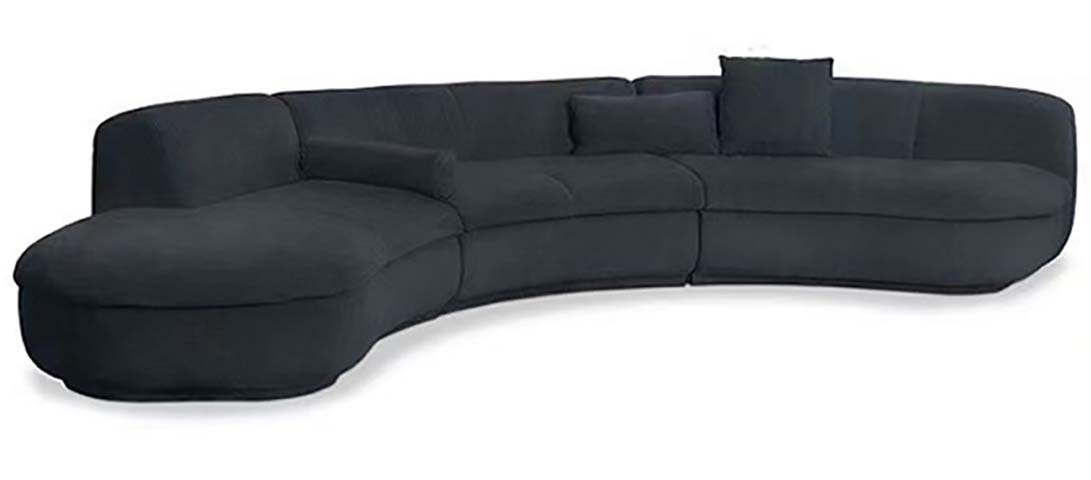

Black Low-Profile Curved Modular Sectional Sofa with Left Chaise Specifications

CURV-LCHS-4000-BLK

代码:NJ82WLV1
获取供应商报价
2026-09-08 13:34人气: 7
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

CURV-LCHS-4000-BLK

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions4000 x 1750 x 800 mm
Seat height from floor500 mm
Left chaise extended depth1750 mm
Standard seating segment depth1000 mm
Seat cushion thickness250 mm
Backrest height above seat300 mm
Hidden support leg height30 mm
Individual modular segment width1330 mm
Seam pitch for upholstery stitching30 mm
Included throw pillow size500 x 500 mm
Back Cushion Thickness160 mm
Leg Height / Floor Clearance160 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Overall product weight96 kg
Total static load capacity408 kg
Seating capacity5 people
Seat foam density (base support layer)45D
Seat foam density (top comfort layer)35D
Foam rebound rate60%
Upholstery abrasion resistance40000 Martindale cycles
Product warranty period2 years
Seat Foam Density / Rebound40 kg/m³ / 60%
Upholstery Abrasion ReferenceFabric 60000 cycles; leather-class cover 1.4 mm
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Internal load-bearing frameKiln-dried solid pine + 15mm multi-layer plywood
Seat suspension system3.8mm heavy-duty sinuous steel springs + 50mm high-tension elastic webbing
Seat cushion filling45D HR foam base + 35D foam top + 200g synthetic fiber batting
Backrest filling30D high-resilience foam + hollow conjugated fiber wrap
Upholstery fabric380gsm matte black chenille woven fabric
Concealed support legs30mm tall black matte plastic foot glides
Modular connection hardwareZinc-plated steel alligator clips with 2mm thick brackets
Included throw pillowsFabric-matched chenille cover, 30D foam + polyfiber fill
Timber Frame Section / MoisturePrimary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing SpecificationSinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector SpecificationReference M8-M10 with at least 1 mechanical fixing per leg
Reference Upholstery Color CountRecommended 8fabric/leather color options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Modular segment configuration3 connected segments: left chaise, middle seat, right curved end
Segment connection methodTool-free steel clip locking between adjacent modular units
Seating orientationFixed inward-facing curved lounge layout for group conversation
Support leg designConcealed low glides prevent floor scuffing without visible feet
Cushion designAttached integrated seat and back cushions for tailored curved fit
Assembly requirementNo on-site assembly required, vacuum-compressed delivery for easy placement
Throw pillow configuration2 included decorative pillows (1 rectangular lumbar, 1 square)
Cushion Service ConfigurationRecommended 2removable/replaceable cushion methods
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Module Carton Dimensions2200× 1050× 850 mm
Reference Packaging Volume1.8 m³/item
Reference Packaged Gross Weight110 kg/item
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Residential living roomOpen-concept lounge space as primary seating for modern minimalist interiors
High-end residential loungePenthouse, villa or luxury apartment casual reception seating
Contract lounge spaceBoutique hotel lobby, creative office breakout area or luxury waiting room
Group conversation layoutCentered placement to face inwards for small group social interaction
Large open plan zoningUsed to define seating zones in studio or loft spaces without visual clutter
Recommended complementary furnitureCurved coffee table matching sofa arc, low-pile area rug, minimal side tables
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Upholstered furniture safety standardEN 1021:2014
Furniture stability standardEN 12520:2015
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

Seating static load standardANSI/BIFMA X2022
Seating durability cycle standardANSI/BIFMA X2022
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Upholstered furniture safety standardGB 17927.1
Furniture structural strength standardGB/T 3324
Formaldehyde emission standardGB 18584
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. Upholstered furniture safety standard:GB 17927.1;
2. Furniture structural strength standard:GB/T 3324;
3. Formaldehyde emission standard:GB 18584;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · CURV-LCHS-4000-BLK

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · CURV-LCHS-4000-BLK

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CURV-LCHS-4000-BLK打开导出工具

页面快速操作

发布采购询价

产品描述

This unbranded black low-profile curved modular sectional sofa, model CURV-LCHS-4000-BLK, features a smooth, gently arced silhouette tailored for connected, social seating arrangements. Its fixed inward-facing layout connects three segments—an extended left chaise, central standard seat, and curved right end—into a continuous lounge form anchored by concealed 30mm matte black plastic glides that eliminate visible feet for a streamlined, floor-aligned profile. The design balances deep, plush seating proportions with clean, unbroken lines, accented by two included coordinating throw pillows: one rectangular lumbar support and one square decorative cushion, both covered in the same fabric as the main upholstery. Constructed for long-term durability, the sofa’s internal load-bearing frame combines kiln-dried solid pine cut to 30×50mm primary sections with 15mm multi-layer plywood, conditioned to 12% recommended moisture content to resist warping. Seat support relies on 3.8mm heavy-duty sinuous steel springs paired with 50mm high-tension elastic webbing, topped with layered cushioning: a 45D high-resilience foam base, 35D foam comfort top, and 200g synthetic fiber batting for seats, with backrests filled with 30D high-resilience foam wrapped in hollow conjugated fiber. The 380gsm matte black chenille woven upholstery delivers a soft, dark textured finish rated for 40000 Martindale abrasion cycles, while modular units lock together via zinc-plated steel alligator clips with 2mm thick brackets for a secure fit. The sofa supports up to 5 people with a total static load capacity of 408kg, and ships vacuum-compressed across two cartons with no on-site assembly required, allowing easy placement after an 40 minutes of unboxing and segment alignment. Its integrated attached cushions maintain a tailored fit to the curved frame, while hidden glides prevent floor scuffing without disrupting the low-profile aesthetic. This piece is suited for open-concept residential living rooms in modern minimalist interiors, high-end residential lounges in penthouses, villas, or luxury apartments, and contract spaces including boutique hotel lobbies, creative office breakout areas, and premium waiting rooms. It functions well as a central focal point to facilitate small group conversation, or to define distinct seating zones in large studio or loft spaces without creating visual clutter. For a cohesive layout, pair it with a curved coffee table matching the sofa’s arc, a low-pile area rug, and minimal streamlined side tables. When planning procurement, account for the 110kg packaged gross weight, 1.8m³ packaging volume, and 4000mm total length to confirm access through entryways and suitability for intended space dimensions.
