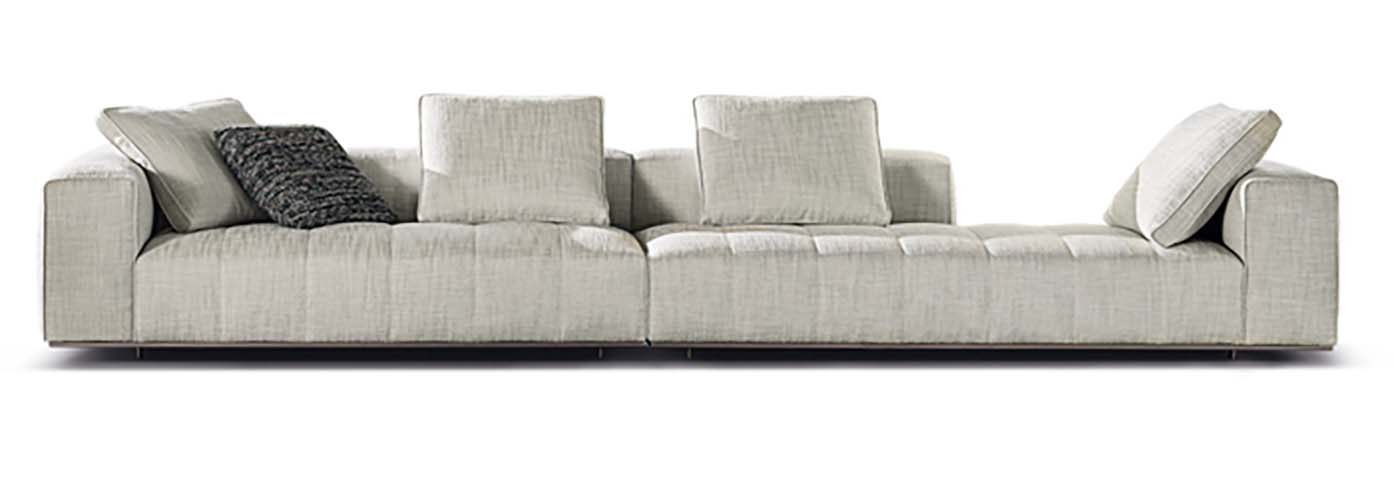

Low-Profile 2-Module Light Gray Fabric Modular Sectional Sofa Specifications

MS-LP2-2400DG-LG

代码:SGXFSRV1
获取供应商报价
2026-09-09 11:04人气: 7
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

MS-LP2-2400DG-LG

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions3300 x 1400 x 940 mm
Seat height470 mm
Left module seat depth710 mm
Right chaise module seat depth1100 mm
Armrest width200 mm
Armrest height620 mm
Back cushion dimensions700 x 700 x 180 mm
Throw cushion dimensions500 x 500 mm
Support foot height30 mm
Seat cushion thickness220 mm
Armrest thickness200 mm
Back Cushion Thickness160 mm
Leg Height / Floor Clearance160 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total static load capacity454 kg
Net weight110 kg
Seating capacity3 persons
Seat foam density55D
Back foam density35D
Fabric abrasion resistance30000 Martindale cycles
Seam pitch30 mm
Foam rebound rate60%
Frame warranty10 years
Seat Foam Density / Rebound40 kg/m³ / 60%
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Upholstery fabricLight gray textured woven linen-blend fabric
Seat cushion fillMulti-layer high-resilience foam wrapped in soft fiber
Back cushion fillBlown polyester fiber wrap over foam core
Internal frameKiln-dried engineered hardwood with corner blocking
Support feetDark powder-coated slim steel cylinder feet
Seat support system8-gauge sinuous springs with polypropylene webbing
Quilted seat detailingChannel-stitched fabric over segmented foam cores
Throw pillow coverDark gray textured woven accent fabric
Module connectorsPowder-coated steel bracket clips
Timber Frame Section / MoisturePrimary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing SpecificationSinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector SpecificationReference M8-M10 with at least 1 mechanical fixing per leg
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Modular reconfigurationInterchangeable modules secured via metal bracket clips
Cushion removabilityLoose seat and back cushions with removable zippered covers
Chaise loungingRight-side extra-deep seat module supports full leg extension
Floor protectionSlim metal feet with non-marking plastic glides
Accent pillow supportIncluded matching and contrast throw pillows for lumbar support
Low-profile access30mm foot clearance allows easy cleaning under the sofa
Modular expansionAdditional same-width modules can be added to extend length
Cushion Service ConfigurationRecommended 2removable/replaceable cushion methods
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Module Carton Dimensions2200× 1050× 850 mm
Reference Packaging Volume1.8 m³/item
Reference Packaged Gross Weight110 kg/item
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Modern living room loungeSuitable for open-plan residential living spaces requiring deep lounge seating
Apartment small-space configurationLow-profile linear form fits compact urban living rooms without blocking sightlines
Neutral contemporary interiorsLight gray fabric finish complements minimalist, wabi-sabi or Scandinavian decor
Casual reception areasAppropriate for low-traffic office breakout spaces or creative studio lounges
Media room seatingDeep chaise module supports relaxed reclining for long viewing sessions
Recommended configurationPair with low-profile rectangular coffee tables 400 mm lower than seat height
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 12520:2015Furniture - Strength, durability and safety for domestic seating
EN 1021-1:2014Upholstered furniture ignitability resistance for smouldering cigarettes
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to internal frame quality
GB 18584-2001Indoor decorating material limit of harmful substances for wood furniture
GB/T 19817-2005Upholstered furniture general safety and performance requirements
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to internal frame quality;
2. GB 18584-2001:Indoor decorating material limit of harmful substances for wood furniture;
3. GB/T 19817-2005:Upholstered furniture general safety and performance requirements;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · MS-LP2-2400DG-LG

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · MS-LP2-2400DG-LG

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · MS-LP2-2400DG-LG打开导出工具

页面快速操作

发布采购询价

产品描述

The Low-Profile 2-Module Light Gray Fabric Modular Sectional Sofa, model MS-LP2400DG-LG, is an unbranded modern minimalist seating solution designed for flexible, comfortable use across residential and light commercial spaces. It carries a clean, linear low-slung silhouette with a slim, unobtrusive profile that avoids blocking interior sightlines, paired with a structured two-module layout: a standard left seat and an extra-deep right chaise, accented by slim dark cylindrical support feet and a set of coordinated cushions in matching light gray and contrasting dark gray textured woven fabric. Its construction prioritizes lasting durability and everyday comfort, built around a kiln-dried engineered hardwood frame reinforced with corner blocking. The seat support system uses 8-gauge sinuous springs paired with polypropylene webbing, topped with multi-layer high-resilience foam wrapped in soft fiber for seat cores, and blown polyester fiber wrap over a foam core for back cushions. Channel-stitched quilted detailing runs across seat surfaces over segmented foam cores, while upholstery uses light gray textured woven linen-blend fabric rated for 30000 Martindale abrasion cycles, with 30mm seam pitch for consistent, sturdy stitching. Slim dark powder-coated steel feet are fitted with non-marking plastic glides, and modules lock together via powder-coated steel bracket clips. Practical functions are tailored to flexible daily use: interchangeable modules can be resecured to rearrange the layout, and additional same-width modules may be added to extend overall seating length. Loose seat and back cushions come with removable zippered covers for easy upkeep, the right-side chaise offers full leg extension for relaxed lounging, and 30mm of floor clearance allows simple cleaning beneath the frame. The sofa seats 3 people, supports 454 kg of total static load, and includes matching and contrast throw pillows for added lumbar support. It is well suited for open-plan residential living rooms, compact urban apartments where low-profile forms preserve open sightlines, neutral contemporary spaces decorated in minimalist, wabi-sabi, or Scandinavian aesthetics, low-traffic office breakout areas, creative studio lounges, and home media rooms where deep chaise seating supports long viewing sessions. For coordinated styling, pair it with low-profile rectangular coffee tables that sit 400mm lower than the sofa’s 470mm seat height. Procurement teams should note each set ships in 2 cartons, requires 40 minutes of assembly time, and carries a net weight of 110 kg, with planning required to accommodate delivery access for the packaged unit dimensions.
