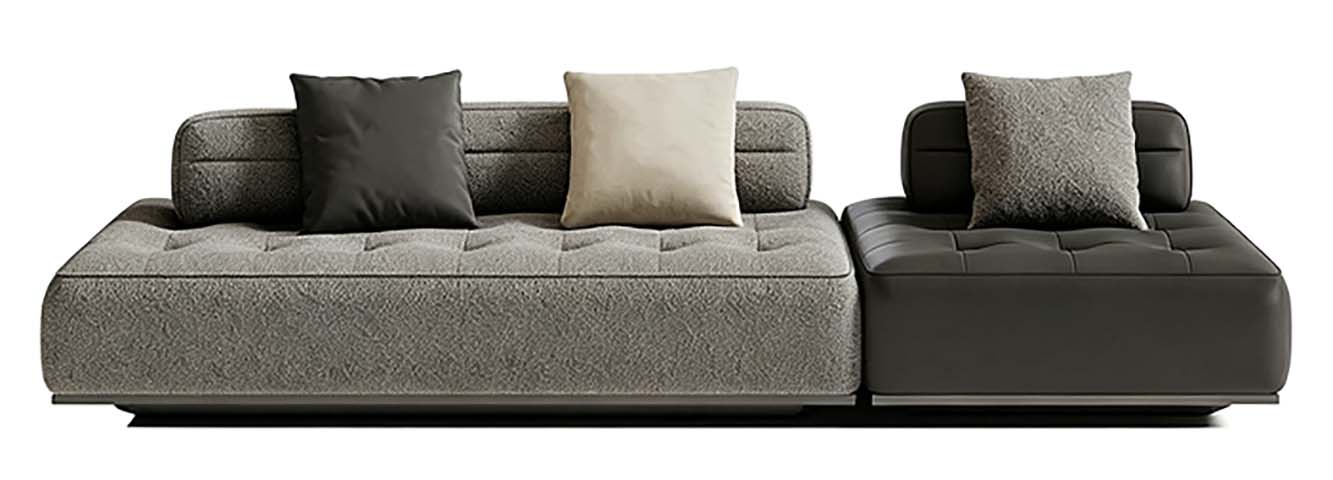

Mixed Upholstery Armless Modular Sectional Sofa with Recessed Plinth Base Specifications

MS-ARL-2M-TFT-PLT-01

代码:STG4Y7V1
获取供应商报价
2026-09-08 14:39人气: 7
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

MS-ARL-2M-TFT-PLT-01

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions2800 x 1050 x 720 mm
Seat height from floor420 mm
Seat depth920 mm
Backrest height above seat300 mm
Left fabric module width1900 mm
Right leather module width900 mm
Seat cushion thickness220 mm
Backrest cushion thickness150 mm
Base recess clearance under sofa110 mm
Throw pillow size500 x 500 mm
Tuft grid spacing200 mm
Back Cushion Thickness160 mm
Leg Height / Floor Clearance160 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Overall static load capacity660 kg
Seat foam density45 kg/m³
Seat foam rebound rate60%
Fabric lightfastness rating4
Back cushion fill weight per unit2.5 kg
Seam stitch pitch8 stitches per 30mm
Warranty period5 years
Seat Foam Density / Rebound40 kg/m³ / 60%
Upholstery Abrasion ReferenceFabric 60000 cycles; leather-class cover 1.4 mm
Per-seat Load Reference130 kg/seat
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Internal frameKiln-dried solid hardwood and engineered wood
Left module upholsteryTextured nubby grey boucle-style fabric
Right module upholsteryDark charcoal full-grain/vegan leather
Seat suspension80mm wide elastic webbing and pocket coil springs
Seat cushion coreHigh-density polyurethane foam with fiber wrap
Back cushion fillBlended polyester fiber and shredded foam
Base constructionRecessed engineered wood plinth with gunmetal metal trim strip
Throw pillow coversMixed faux leather, linen-blend and boucle fabric
Upholstery attachmentHidden zipper access for cover removal
Timber Frame Section / MoisturePrimary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing SpecificationSinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector SpecificationReference M8-M10 with at least 1 mechanical fixing per leg
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Modular connectionAll-metal interlocking connectors between modules
Tufted seat designButton-tufted grid pattern on all seat cushions
Segmented backrestsHorizontally split padded back cushions per module
Reconfigurable layoutArmless modules support straight, L-shape or open lounge configurations
Floor clearance access110mm recessed base gap allows robot vacuum access
Decorative pillow positioningThree included throw pillows are freely positionable
Stationary fixed baseNo recline, swivel or moving mechanisms
Edge cushioningRounded soft upholstered edges on all frame sides
Cushion Service ConfigurationRecommended 2removable/replaceable cushion methods
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Module Carton Dimensions2200× 1050× 850 mm
Reference Packaging Volume1.8 m³/item
Reference Packaged Gross Weight110 kg/item
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Modern residential living roomLow-profile minimalist design fits contemporary open-plan lounge spaces
Luxury apartment loungeMixed material aesthetic pairs with upscale minimalist interior design schemes
Boutique hotel receptionArmless modular configuration supports flexible guest seating arrangements
Open-concept loft spaceFloating base and low silhouette maintains unobstructed sight lines in large spaces
Casual media room seatingDeep seat depth supports relaxed reclining for movie and media viewing
Small-space studio seatingArmless profile maximizes usable seating width without occupying excess floor space
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 12520:2015Furniture – Strength, durability and safety for domestic seating, applicable for residential use
EN 1021-1:2014Upholstered furniture flammability – smouldering cigarette ignition resistance requirement
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to frame and base construction
GB 18401-2010National textile safety technical code, applicable to fabric upholstery components
GB/T 1952.1-2012Test methods for upholstered sofas, applicable to load and durability verification
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to frame and base construction;
2. GB 18401-2010:National textile safety technical code, applicable to fabric upholstery components;
3. GB/T 1952.1-2012:Test methods for upholstered sofas, applicable to load and durability verification;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · MS-ARL-2M-TFT-PLT-01

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · MS-ARL-2M-TFT-PLT-01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · MS-ARL-2M-TFT-PLT-01打开导出工具

页面快速操作

发布采购询价

产品描述

The Mixed Upholstery Armless Modular Sectional Sofa with Recessed Plinth Base, model MS-ARL-2M-TFT-PLT-01, presents a sleek low-profile silhouette defined by its mixed-material aesthetic and clean, armless form. The two-module layout pairs a wider left section upholstered in textured nubby grey boucle-style fabric with a narrower right section finished in dark charcoal full-grain or vegan leather, unified by tufted grid-patterned seat cushions, horizontally split padded backrests per module, and a recessed plinth base accented with gunmetal metal trim that creates a subtle floating visual effect. Three complimentary throw pillows with mixed faux leather, linen-blend and boucle covers are included for flexible styling. Its internal structure relies on a kiln-dried solid hardwood and engineered wood frame, supported by 80mm wide elastic webbing and pocket coil springs for seat suspension. Seat cushions feature a high-density polyurethane foam core wrapped in fiber, while back cushions are filled with a blend of polyester fiber and shredded foam. The recessed engineered wood plinth base sits to leave sufficient clearance for robot vacuum access, and all-metal interlocking connectors secure modules together. Hidden zippers allow easy removal of upholstery covers for maintenance, and the stationary fixed base includes no recline, swivel or moving mechanisms. The armless modular design supports reconfiguration into straight, L-shape or open lounge layouts to suit evolving spatial needs, with a deep seat dimension that supports relaxed reclining for extended seating sessions. It is well suited for a range of spaces, including modern residential living rooms in open-plan layouts, luxury apartment lounges with upscale minimalist schemes, boutique hotel reception areas requiring flexible guest seating, open-concept lofts where its low silhouette preserves unobstructed sight lines, casual media rooms, and small-space studios where the armless profile maximizes usable seating width without excess floor occupation. Procurement teams and buyers should note the product ships across two cartons per set, with a listed assembly time of 40 minutes per unit. It is offered as an unbranded product, backed by a 5-year warranty, and delivered as a complete set with required connection hardware and included throw pillows. No additional tools or accessory components are specified for standard assembly.
