基础物理尺寸
mm / 英寸自动双单位换算 · 工程采购基础规格
数据来源:工厂资料结构化字段,最终以实测值为准
| 产品外部尺寸(宽 × 深 × 高) | 1600 × 840 × 840 mm | |
|---|---|---|
| Overall module dimensions | 1600 x 840 x 840 mm | |
| Seat height from floor | 420 mm | |
| Seat depth (chaise reclining length) | 1280 mm | |
| Seat width (usable sitting surface) | 1200 mm | |
| Backrest height from seat surface | 420 mm | |
| Extra-wide armrest width | 280 mm | |
| Armrest height from seat surface | 220 mm | |
| Support foot height | 45 mm | |
| Seat cushion thickness | 220 mm | |
| Back cushion thickness | 180 mm | |
| Matching throw pillow dimensions | 500 x 500 mm | |
| Leg Height / Floor Clearance | 160 mm |
重量、承重与性能参数
净重 / 最大承重 / 适用人数 / 耐久性能
数据来源:产品性能数据,采购前请核对具体测试口径
| Total module static load capacity | 250 kg | |
|---|---|---|
| Seat cushion foam density | 55D | |
| Seat foam rebound rate | 60% | |
| Fabric abrasion resistance | 40000 Martindale cycles | |
| Frame static load durability | 100000 cycle test | |
| Net weight of single chaise module | 48 kg | |
| Product warranty period | 10 years | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm | |
| Per-seat Load Reference | 130 kg/seat |
材质与结构参数
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
数据来源:以工厂材质清单与验货报告为准
| Inner support frame | Kiln-dried solid pine + steel reinforced joint construction | |
|---|---|---|
| Seat support system | 3.8 mm sinuous spring + elastic webbing suspension | |
| Seat fill material | 55D high-resilience polyurethane foam + 40 mm natural latex top layer | |
| Back cushion fill | Blown high-loft polyester fiber wrap over foam core | |
| Upholstery fabric | 380 gsm matte cream chenille velvet | |
| Stitching and edge finish | 10 stitches per inch contrast piping along all seams | |
| Support feet | 45 mm tall matte black non-slip polypropylene feet | |
| Module connection hardware | Heavy-duty steel buckle connectors between adjacent modules | |
| Accent pillow fill | 100% 3D hollow polyester fiber fill | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg |
功能与调节参数
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
数据来源:功能配置参数,以供应商正式规格为准
| Modular connection system | Steel clip connectors attach to adjacent sofa modules for custom layout configuration | |
|---|---|---|
| Reversible chaise orientation | Armrest can be configured for left or right facing placement | |

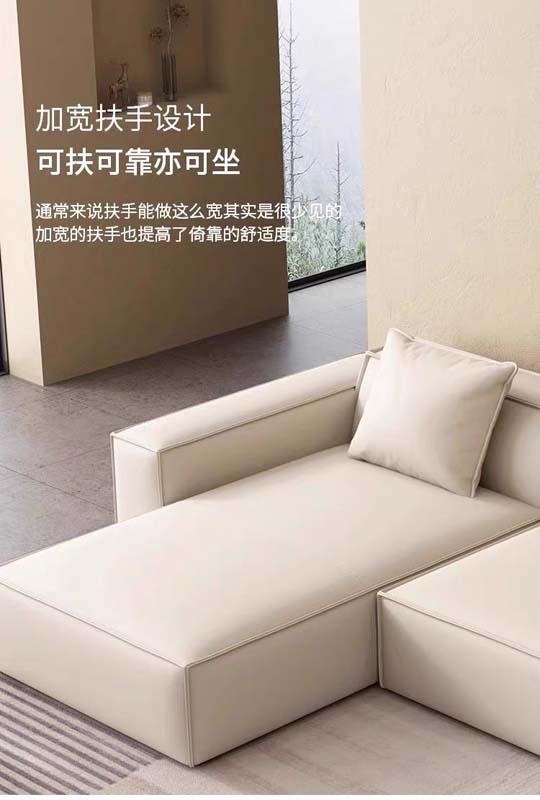

| Extra-wide armrest function | 280 mm padded armrest supports arm resting, leaning, or temporary seating for one person | |
| Cushion recovery feature | Compressed cushions fully expand to designed thickness within 48 hours of unpacking | |
| Non-slip foot function | Rubber-padded feet prevent sofa sliding on hard flooring and reduce floor scratches | |
| Removable cover option | Hidden zipper design allows upholstery covers to be removed for spot cleaning or replacement | |
| Reclining support function | 1280 mm extended seat surface supports full reclined posture without additional footrest | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
包装与物流参数
经核验的外箱 / 毛重 / 组装 / 装柜数据
数据来源:外贸报价与装柜测算参考
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
应用场景与使用方式
推荐空间 / 目标用户 / 使用方式
数据来源:依据产品结构与品类整理的推荐应用场景
| Residential living room | Suitable for cream/wabi-sabi style interiors as main lounge seating | |
|---|---|---|
| Boutique hotel lounge areas | Durable upholstery and modular design work for common area seating | |
| Open-plan loft spaces | Modular connection allows reconfiguration to fit large open floor plans | |
| Vacation rental properties | Stain-resistant fabric option and easy assembly suit high-turnover rental use | |
| Private lounge/reading nook | Extended chaise length supports extended reclining for reading or relaxation |
欧盟市场准入要求 * EN 标准
欧洲市场准入与化学品要求
| EN 12520:2015 | Furniture - Strength, durability and safety for domestic seating, applicable to structural performance verification | |
|---|---|---|
| EN 1021-1:2014 | Furniture - Assessment of ignitability of upholstered furniture, ignition source smouldering cigarette, applicable to fire safety |
适用于中国市场项目的标准 * GB 标准
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to frame structural integrity inspection | |
|---|---|---|
| GB 18584-2001 | Indoor decorating and refurbishing materials - limit of harmful substances in wood furniture, applicable to formaldehyde emission testing | |
| GB/T 19889.3-2005 | Acoustics - measurement of sound insulation in buildings, applicable to fabric acoustic performance reference |
本产品须满足以下技术参数要求: 1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to frame structural integrity inspection; 2. GB 18584-2001:Indoor decorating and refurbishing materials - limit of harmful substances in wood furniture, applicable to formaldehyde emission testing; 3. GB/T 19889.3-2005:Acoustics - measurement of sound insulation in buildings, applicable to fabric acoustic performance reference; 最终交付参数、检测报告和验收标准以双方采购合同为准。
