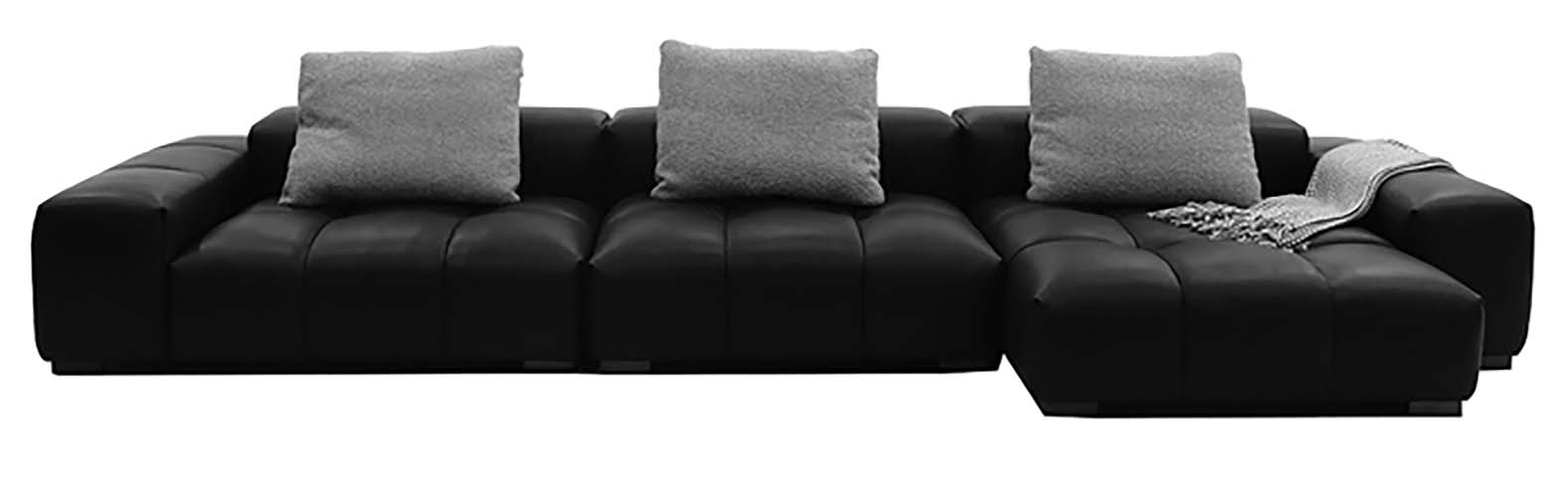

Black Low-Profile Grid-Quilted L-Shaped Right-Chaise Modular Sectional Sofa Specifications

LSEC-BLK-GRID-3S-RC

代码:Y8D4ZGV1
获取供应商报价
2026-09-09 13:39人气: 6
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

LSEC-BLK-GRID-3S-RC

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions3290 x 1890 x 890 mm
Seat height from floor480 mm
Main seating area depth660 mm
Chaise lounge segment length1800 mm
Chaise lounge depth1100 mm
Back cushion dimensions650 x 650 x 180 mm
Backrest height above seat410 mm
Seat Cushion Thickness180 mm
Back Cushion Thickness160 mm
Leg Height / Floor Clearance160 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total static weight capacity1050 kg
Per-seat static weight capacity136 kg
Seating capacity4 people
Seat cushion foam density50 kg/m³
Seat foam compression rebound rate60%
Upholstery abrasion resistance50000 double rubs
Product net weight122 kg
Seam stitch pitch30 mm
Seat Foam Density / Rebound40 kg/m³ / 60%
Upholstery Abrasion ReferenceFabric 60000 cycles; leather-class cover 1.4 mm
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Main seat and frame upholstery1.4mm thick black smooth top-grain match leather
Seat core fillHigh-resilience polyurethane foam wrapped with polyester fiber
Internal load-bearing frameKiln-dried pine solid wood with corner-block joinery
Seat support system3.6mm diameter sinuous S-springs spaced 100mm apart
Accent back cushion fabricTextured boucle-style woven polyester fabric
Modular connection hardwarePowder-coated steel alligator clip connectors
Bottom support feetMatte black carbon steel block feet
Throw blanket accessoryKnitted polyester blend fabric with tasseled fringe
Timber Frame Section / MoisturePrimary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing SpecificationSinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector SpecificationReference M8-M10 with at least 1 mechanical fixing per leg
Reference Upholstery Color CountRecommended 8fabric/leather color options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Modular reconfigurationFixed standard 3-seat plus right chaise layout, secured by steel clips
Cushion positioningLoose non-fixed back cushions allow adjustable lumbar support
Surface cleaningSmooth leather upholstery supports wipe-clean spot maintenance
Armrest utilityWide level padded armrests support arm resting and temporary item placement
Chaise lounging functionExtended right chaise allows full leg extension for reclined relaxation
Floor protectionLow steel feet with integrated non-slip pads prevent floor scuffing
Seam constructionReinforced stitched grid seams retain cushion shape with regular use
Block armrest width250 mm
Block armrest height from floor630 mm
Block foot height30 mm
Cushion Service ConfigurationRecommended 2removable/replaceable cushion methods
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Module Carton Dimensions2200× 1050× 850 mm
Reference Packaging Volume1.8 m³/item
Reference Packaged Gross Weight110 kg/item
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Residential living room main seatingSuitable for open-plan modern living rooms for family and guest seating
Minimalist interior aesthetic settingsComplements monochrome, industrial, contemporary and wabi-sabi design schemes
Open lounge space applicationWorks in apartment lofts and open concept entertainment spaces with low sightlines
Home media room seatingDeep chaise provides relaxed reclined seating for extended viewing use
Showroom and model home stagingFits modern residential display settings to showcase minimalist design
Small professional lounge areasAppropriate for modern office break areas and boutique reception lounges
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 12520:2015Domestic furniture seating strength, durability and stability performance requirements
EN 1021-1:2014Upholstered furniture cigarette ignition resistance flammability standard
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to internal frame strength and stability
GB 20400-2006Leather and fur limit of harmful substances, applicable for leather upholstery safety checks
GB/T 1952.1-2012Sofas mechanical and durability test standards for seating performance validation
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to internal frame strength and stability;
2. GB 20400-2006:Leather and fur limit of harmful substances, applicable for leather upholstery safety checks;
3. GB/T 1952.1-2012:Sofas mechanical and durability test standards for seating performance validation;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · LSEC-BLK-GRID-3S-RC

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · LSEC-BLK-GRID-3S-RC

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · LSEC-BLK-GRID-3S-RC打开导出工具

页面快速操作

发布采购询价

产品描述

This black low-profile grid-quilted L-shaped right-chaise modular sectional sofa features a streamlined, minimalist silhouette aligned with modern design sensibilities. Its fixed right-chaise layout pairs a three-seat main section with an extended lounging segment, held together by durable powder-coated steel alligator clip connectors for stable, consistent placement. The low-profile form sits on matte black carbon steel block feet fitted with integrated non-slip pads, keeping sightlines unobstructed while protecting floor surfaces from scuffs. Reinforced stitched grid seams across the seat upholstery create a tailored, structured visual detail, while loose textured boucle-style woven polyester accent cushions add subtle textural contrast to the smooth black upholstery. The sofa is built on a kiln-dried pine solid wood internal frame with corner-block joinery, supported by a sinuous S-spring seat support system. Main seating surfaces are upholstered in smooth black top-grain match leather, with seat cores constructed from high-resilience polyurethane foam wrapped in polyester fiber. A matching knitted polyester blend throw blanket with tasseled fringe is included as a complementary accessory. The static weight capacity supports four total occupants, with seat cushions sized to balance structured support and soft comfort for extended use. Practical functionality is integrated into every design element: the extended right chaise allows full leg extension for reclined relaxation, wide padded armrests accommodate both arm support and temporary placement of small items, loose back cushions can be adjusted to customize lumbar support, and the smooth leather upholstery supports simple wipe-clean spot maintenance for regular upkeep. This sectional suits a wide range of residential and light commercial settings. It works as primary seating for open-plan modern living rooms, home media rooms, apartment lofts, and open-concept entertainment spaces, and complements monochrome, industrial, contemporary, and wabi-sabi interior aesthetics. It is also well-suited for showroom and model home staging, modern office break areas, and boutique reception lounges. Procurement stakeholders should note that the unit ships in two cartons, with a straightforward assembly process suitable for on-site setup. Its fixed modular configuration cannot be repositioned into alternate sectional layouts, so buyers should confirm the right-side chaise orientation aligns with their space layout prior to purchase, to ensure seamless fit with intended room flow and furniture placement plans.
