首页 > 首页 > Residential Furniture > Living Room Furniture > Home Fabric Sofa > MS-PLINTH-2TONE-280

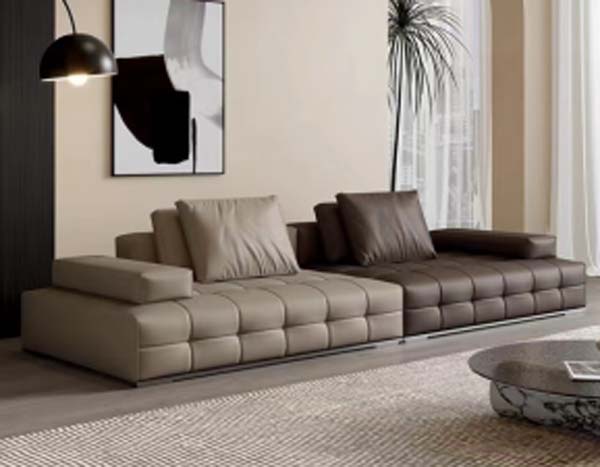

Two-Tone Grid-Quilted Low-Profile Modular Sectional Sofa with Recessed Metal Plinth Base Specifications

MS-PLINTH-2TONE-280

代码:Z2YLD0V1
获取供应商报价
2026-08-08 19:41人气: 41
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

MS-PLINTH-2TONE-280

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall assembled dimensions2800 x 1000 x 700 mm
Seat height from floor460 mm
Seat depth (front edge to back cushion face)820 mm
Single modular seat unit width900 mm
Armrest height (from seat surface to arm top)150 mm
Back cushion height (from seat surface to cushion top)240 mm
Recessed metal plinth base height50 mm
Armrest width (outer edge to seat face)200 mm
Back cushion thickness200 mm
Quilted grid seat cushion panel size200 x 200 mm
Seat Cushion Thickness180 mm
Leg Height / Floor Clearance160 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total sofa net weight145 kg
Per-seat static load capacity150 kg
Seat core foam density50 kg/m³
Seat cushion foam rebound rate60%
Seat suspension elastic webbing width50 mm
Standard upholstery abrasion resistance (Martindale)50000 cycles
Seam stitch pitch8 stitches per 30 mm
Recommended number of seated users3
Seat Foam Density / Rebound40 kg/m³ / 60%
Upholstery Abrasion ReferenceFabric 60000 cycles; leather-class cover 1.4 mm
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Internal load-bearing frameKiln-dried solid larch hardwood + 15mm thick multilayer plywood, glued and screwed for structural rigidity
Seat base suspension50mm wide high-tension elastic webbing, 80mm spacing across seat frame, secured with metal staples
Seat cushion core50D high-resilience polyurethane foam, wrapped in 20mm thick Dacron fiber layer with optional goose down top layer for softness
Back cushion fillBlown polyester fiber + 10% down feather blend, encased in non-woven liner, removable for cover care
Seat and arm upholstery1.4mm thick top-grain cowhide leather (taupe and dark brown two-tone) or equivalent high-martindale performance fabric, uniform grid quilted with foam underlay for tufted definition
Recessed base frame2mm thick powder-coated matte black steel continuous plinth, recessed 30mm inward from sofa outer edge to create floating appearance
Modular connection hardwareZinc-plated steel clip connectors with locking tabs, installed between adjacent modules to prevent shifting during use
Armrest internal padding40D molded polyurethane foam, 100mm total padding thickness, shaped to match blocky rectangular arm profile
Seat panel underlay5mm thick hardboard support panel over webbing to prevent cushion sag and maintain even quilted grid appearance
Upholstery stitching threadBonded nylon thread, UV and abrasion resistant, color-matched to each upholstery tone for clean finished seams
Timber Frame Section / MoisturePrimary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing SpecificationSinuous spring wire 4 mm; elastic webbing 70 mm wide
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Modular reconfigurationTool-free metal clip connectors allow modules to be separated and reconnected into straight, L-shaped or open island layouts; compatible with additional armless, corner or ottoman modules from the same collection
Fixed seat platformPadded quilted seat is integrated with the armrest frame for a rigid, uniform block silhouette; seat cushions are semi-fixed to frame to maintain grid alignment during use
Loose adjustable back cushionsNon-mechanical overstuffed back cushions can be repositioned along the seat back for customized lumbar support, or removed for conversion to a deep lounging daybed surface
Low-profile plinth supportContinuous recessed steel plinth distributes weight evenly across the floor without separate legs, eliminating wobble and creating a clean minimalist floating visual effect
Quilted tufted seat surfaceEvenly spaced grid stitching creates defined padded square panels that retain shape and prevent upholstery shift with regular use
Floor protectionRecessed base underside is fitted with 3mm thick non-marking felt glides along all contact edges to prevent scratching hard flooring surfaces
Two-tone upholstery configurationFactory-finished contrasting taupe and dark brown upholstery across adjacent modules creates a designer two-tone visual effect without requiring custom on-site upholstery
Cushion Service ConfigurationRecommended 2removable/replaceable cushion methods
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Number of shipping cartons4
Largest carton dimensions1300 x 1050 x 650 mm
Total shipping gross weight170 kg
Total shipping volume (CBM)2.1
Required assembly time (2 persons)50 minutes
40ft HQ container loading quantity (assembled configuration)42 units
Packaging protection50mm thick EPE foam wrapping on all upholstered surfaces, hard cardboard corner protectors, 5-layer corrugated outer cartons, plastic hardware bag with assembly instructions
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Module Carton Dimensions2200× 1050× 850 mm
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Residential living room main seatingSuitable for open-concept or formal living rooms, designed for relaxed daily lounging and guest seating with deep seat depth and plush back support
Modern minimalist / contemporary interior schemesComplements neutral, monochrome or warm-toned interiors with its clean blocky silhouette, matte metal base and two-tone neutral upholstery palette
Luxury apartment / loft open-plan spacesLow-profile form does not block sight lines in open-plan layouts, while the wide sectional scale provides ample seating for entertaining
High-end residential reception / lounge areasDesigner two-tone finish and premium upholstery appearance is appropriate for upscale private lounge spaces, home media rooms or executive residential reception areas
Flooring compatibilitySuitable for installation over hardwood, tile, polished concrete or low-pile area rugs; felt glides prevent floor damage, and the continuous plinth base distributes weight evenly to avoid indentation on soft flooring
Configuration flexibility for different room sizesModular design allows extension with additional modules or adjustment to L-shape to fit small to large living spaces, from compact 2-seat layouts to large multi-seat sectionals
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 12520:2015 Furniture - Strength, durability and safety - Requirements for domestic seatingApplies to structural strength, stability, load testing and safety performance for residential sofa use
EN 1021-1:2014 Furniture - Assessment of the ignitability of upholstered furniture - Part 1: Ignition source smouldering cigaretteApplies to minimum fire resistance requirements for upholstery and fill materials for residential seating
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017 General technical requirements for furniture: Wooden furnitureApplies to the internal wooden frame structural strength, dimensional stability and finish quality requirements for the sofa frame
GB 20400-2006 Leather and fur - Limit of harmful matterApplies to leather upholstery options, setting maximum limits for formaldehyde, azo dyes and other harmful substances in contact upholstery
GB/T 16799-2008 Furniture leatherApplies to material performance, color fastness, tear strength and thickness requirements for leather upholstery used on the sofa
GB/T 1952.1-2012 SofasApplies to overall sofa structural durability, load capacity, foam performance, upholstery fastness and safety requirements for residential seating
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017 General technical requirements for furniture: Wooden furniture:Applies to the internal wooden frame structural strength, dimensional stability and finish quality requirements for the sofa frame;
2. GB 20400-2006 Leather and fur - Limit of harmful matter:Applies to leather upholstery options, setting maximum limits for formaldehyde, azo dyes and other harmful substances in contact upholstery;
3. GB/T 16799-2008 Furniture leather:Applies to material performance, color fastness, tear strength and thickness requirements for leather upholstery used on the sofa;
4. GB/T 1952.1-2012 Sofas:Applies to overall sofa structural durability, load capacity, foam performance, upholstery fastness and safety requirements for residential seating;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · MS-PLINTH-2TONE-280

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · MS-PLINTH-2TONE-280

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · MS-PLINTH-2TONE-280打开导出工具

页面快速操作

发布采购询价

产品描述

This two-tone grid-quilted low-profile modular sectional sofa features a streamlined, blocky silhouette defined by its recessed matte black powder-coated steel plinth base, which sits inward from the sofa’s outer edge to create a subtle near-floating visual effect. The straight two-module configuration integrates low, wide padded armrests aligned flush with the seat cushion top edge, while uniform 200x200mm square quilted panels cover the seat surface across the contrasting taupe and dark brown adjacent modules, delivering a polished, designer-ready two-tone finish without custom upholstery work. Loose, overstuffed back cushions rest directly on the seat platform, contributing to the sofa’s clean, low backline that avoids obstructing sight lines in open spaces. Structurally, the sofa is built on a load-bearing frame of kiln-dried solid larch hardwood and multilayer plywood, secured with glued and screwed joinery for consistent rigidity. The seat base uses evenly spaced high-tension elastic webbing topped with a hardboard support panel to prevent cushion sag and preserve the crisp quilted grid pattern over time. Seat cores are formed from high-resilience polyurethane foam wrapped in a Dacron fiber layer, with an optional goose down top layer for enhanced softness, while back cushions hold a blown polyester fiber and down feather blend encased in removable liners for simplified cover care. Upholstery options include 1.4mm top-grain cowhide leather or high-performance fabric, stitched with color-matched bonded nylon thread for durable, clean seams, and the base underside is fitted with non-marking felt glides to protect finished flooring. Designed for flexible use, tool-free zinc-plated steel clip connectors let users separate and reconfigure modules into straight, L-shaped, or open island layouts, with compatibility for additional armless, corner, or ottoman modules from the same collection. Semi-fixed seat cushions maintain grid alignment during regular use, while adjustable loose back cushions can be repositioned for customized lumbar support or removed entirely to convert the seating surface into a deep lounging daybed. The continuous plinth base distributes weight evenly across the floor to eliminate wobble, and the sofa supports three standard adult users for relaxed daily use. This model fits seamlessly in residential open-concept living rooms, modern minimalist interiors, luxury loft apartments, high-end home media rooms, and upscale private residential reception spaces, performing reliably over hardwood, tile, polished concrete, or low-pile area rugs. It suits both everyday household lounging and casual guest entertaining. For procurement, note that select material specifications are subject to supplier bill of materials confirmation. The product ships in knock-down form across multiple cartons, with packaging designed to prevent transit damage for upholstered surfaces. Assembly requires two people, with time allocated for attaching the plinth base, connecting module clips, placing cushions, and adjusting leveling glides. Bulk orders can be optimized for container loading for large residential furnishing projects, and buyers should confirm module compatibility for extended configurations, as well as upholstery material selection to match project wear requirements and interior palettes.
