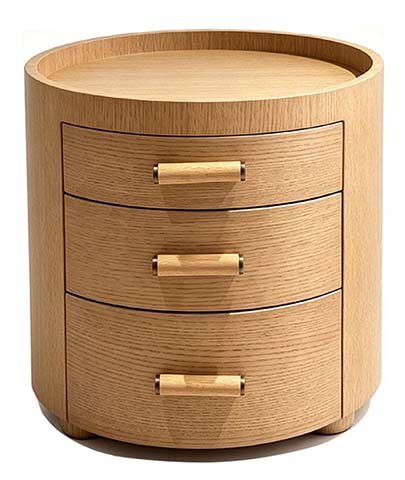

商品供应商Cylindrical 3-Drawer Natural Oak Nightstand with Brass Pulls and Raised Tray Top，MDF core with vertical fluted natural oak veneer, low-sheen lacquer finish
可联系供应商获取生产周期与报价。
PRODUCT MODULE 01 / 06
基础物理尺寸
mm / 英寸自动双单位换算 · 工程采购基础规格
数据来源：工厂资料结构化字段，最终以实测值为准
| 产品外部尺寸（宽 × 深 × 高） | 500 × 500 × 650 mm | |
|---|---|---|
| Top tray rim height | 20 mm | |
| Single drawer front height | 180 mm | |
| Drawer internal usable depth | 380 mm | |
| Drawer pull length | 120 mm | |
| Base foot height | 30 mm | |
| Circular top usable surface diameter | 460 mm | |
| Cabinet wall thickness | 20 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
重量、承重与性能参数
净重 / 最大承重 / 适用人数 / 耐久性能
数据来源：产品性能数据，采购前请核对具体测试口径
| Top surface static load capacity | 40 kg | |
|---|---|---|
| Total unit net weight | 28 kg | |
| Total internal storage volume | 0.08 m³ | |
| Coating surface abrasion resistance | 1000 cycles | |
| Recommended maximum service life | 10 years | |
| Standard color option count | 3 | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
材质与结构参数
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
数据来源：以工厂材质清单与验货报告为准
| Outer cabinet shell | MDF core with vertical fluted natural oak veneer, low-sheen lacquer finish | |
|---|---|---|
| Drawer fronts | Curved oak-veneer panels matching shell finish, precision cut to cylinder radius | |
| Drawer pulls | Polished brass-finish zinc alloy, horizontal cylindrical bar design with end caps | |
| Top surface and rim | Solid oak edge lipped tray top with smooth veneered flat surface, matching cabinet finish | |
| Drawer internal components | 12mm thick hardwood drawer sides with metal ball-bearing glides | |
| Base feet | Small rounded solid oak feet, finished to match cabinet body | |
| Internal drawer bottoms | 5mm thick hardboard panels, secured with stapled joinery | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
功能与调节参数
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
数据来源：功能配置参数，以供应商正式规格为准
| Drawer operation | 3 independent forward-opening curved drawers with full-extension metal glides | |
|---|---|---|
| Top tray function | Raised 20mm rim prevents small items, cups or decor from sliding off surface | |
| Storage configuration | Three equal-height stacked storage compartments for bedside essentials | |
| Surface placement | Flat circular top supports table lamps, books, phones and small decor items | |
| Joinery performance | Doweled and glued cabinet joinery with reinforced drawer box corners | |
| Floor protection | Small rounded feet provide even weight distribution and prevent floor scuffing | |
| Drawer alignment | Curved drawer fronts sit flush with cylindrical cabinet shell when closed | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
包装与物流参数
经核验的外箱 / 毛重 / 组装 / 装柜数据
数据来源：外贸报价与装柜测算参考
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
应用场景与使用方式
推荐空间 / 目标用户 / 使用方式
数据来源：依据产品结构与品类整理的推荐应用场景
| Residential bedroom use | Placed adjacent to bed for storing personal items, books and nighttime essentials | |
|---|---|---|
| Living room side table use | Positioned next to sofas or armchairs as a rounded end table with concealed storage | |
| Hotel guest room application | Used as paired bedside cabinets in boutique or modern hotel rooms | |
| Small apartment configuration | Suitable for compact bedrooms with limited floor space due to rounded no-corner design | |
| Recommended surface accessories | Pairs with small table lamps, ceramic decor, wireless charging pads and bedtime reading materials | |
| Design style matching | Coordinates with modern minimalist, Scandinavian, Japandi and light luxury interior schemes |
STANDARD S1
欧盟市场准入要求 * EN 标准
欧洲市场准入与化学品要求
| EN 312:2010 | Particleboard performance requirements, applicable if MDF/particleboard core is used | |
|---|---|---|
| EN 14749:2016 | Domestic and kitchen storage furniture safety and strength requirements | |
| EN 1022:2005 | Domestic furniture seating and storage stability test for upright units |
STANDARD S3
适用于中国市场项目的标准 * GB 标准
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for dimensional and structural acceptance | |
|---|---|---|
| GB 18584-2001 | Indoor decorating material limit of harmful substances for wooden furniture, formaldehyde emission requirement | |
| GB/T 4893.8-2013 | Furniture surface test for abrasion resistance, applicable for lacquer finish durability |
招标文件标准化描述文本
本产品须满足以下技术参数要求： 1. GB/T 3324-2017：General technical requirements for wooden furniture, applicable for dimensional and structural acceptance； 2. GB 18584-2001：Indoor decorating material limit of harmful substances for wooden furniture, formaldehyde emission requirement； 3. GB/T 4893.8-2013：Furniture surface test for abrasion resistance, applicable for lacquer finish durability； 最终交付参数、检测报告和验收标准以双方采购合同为准。
