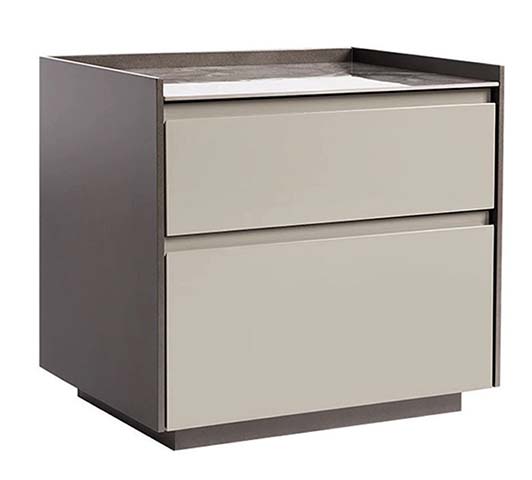

Two-Drawer Freestanding Nightstand with Raised Gallery Top Specifications

NS-2DR-GL600

代码:JY67XXV1
获取供应商报价
2026-09-08 10:32人气: 25
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

NS-2DR-GL600

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions600 x 420 x 550 mm
Side Rail Thickness40 mm
Slat Spacing80 mm
Center Support Leg CountRecommended 6legs
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Unit net weight32 kg
Per drawer static load capacity15 kg
Drawer slide cycle rating50000 open/close cycles
Surface scratch resistance2000 abrasion cycles
Recommended maximum user weight for top surface50 kg
Total internal storage volume78 L
Bed Static Load Reference400 kg
Per-slat Load Reference60 kg
Recommended Procurement WarrantyFrame 10 years; hardware 5 years; upholstery 2 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Outer case panels18mm melamine-faced particleboard, dark woodgrain finish
Drawer front panels18mm MDF substrate, high-gloss light taupe lacquer finish
Top work surface18mm melamine-faced particleboard, matching dark woodgrain finish
Plinth base18mm melamine-faced particleboard, dark woodgrain finish
Drawer internal boxes12mm melamine-faced MDF, light neutral interior finish
Drawer slidesFull-extension zinc-plated cold-rolled steel, soft-close mechanism
Edge banding2mm PVC edge banding, color-matched to adjacent panels
Back panel3mm hardboard, dark matte finish
Slat Thickness15 mm bent plywood or solid timber
Primary Connector SpecificationReference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color CountRecommended 6timber/upholstery options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Top gallery lip30mm raised perimeter edge around top surface to prevent items sliding off
Drawer operationRecessed integrated gap handles, no protruding hardware, push-to-open compatible
Drawer extensionFull-extension slides allow 100% drawer access for full interior visibility
Soft-close dampingIntegrated hydraulic dampers prevent slamming and pull drawers closed gently
Freestanding installationLeveling feet on plinth base allow adjustment for uneven floor surfaces
Storage configurationTwo equal-height deep drawers for folded clothing, accessories and bedside essentials
Wall anchoringPre-drilled rear anchor points for anti-tip restraint securing unit to wall
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight130 kg/set
Reference Packaging Volume0.9 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Residential bedroom usePositioned beside single or double beds as bedside storage for lamps, books and personal items
Apartment living space useUsed as small side storage next to sofas in compact living rooms for media accessories
Hotel guest room useInstalled as matching bedside storage in mid-range hotel guest rooms for guest convenience
Small home office useUsed as under-desk or side storage for stationery and documents in compact home workspaces
Recommended matching furniturePairs with two-tone platform beds, dressers and wardrobes from the same product collection
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 14749:2016Safety requirements for domestic storage furniture, including anti-tip stability requirements
EN 312:2010Performance requirements for particleboard panels used in furniture load-bearing structures
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to case construction and finish durability
GB/T 4893.4-2013Surface abrasion resistance test for furniture surfaces, applicable to top and drawer finishes
GB 28007-2011Formaldehyde emission limit for wooden furniture components, maximum E1 grade 0.124mg/m3
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to case construction and finish durability;
2. GB/T 4893.4-2013:Surface abrasion resistance test for furniture surfaces, applicable to top and drawer finishes;
3. GB 28007-2011:Formaldehyde emission limit for wooden furniture components, maximum E1 grade 0.124mg/m3;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · NS-2DR-GL600

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · NS-2DR-GL600

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · NS-2DR-GL600打开导出工具

页面快速操作

发布采购询价

产品描述

The AIMENGSHI NS-2DR-GL600 Two-Drawer Freestanding Nightstand with Raised Gallery Top is a versatile bedside storage solution defined by a polished two-tone aesthetic and streamlined handleless design. Its overall dimensions measure 600 x 420 x 550 mm, with a cohesive visual balance created by matching dark woodgrain finishes across the outer case, plinth base, and top work surface, contrasted by high-gloss light taupe lacquer on the drawer front panels. A 30mm raised perimeter gallery lip wraps the top surface, creating a defined boundary that prevents placed items from sliding off, while color-matched 2mm PVC edge banding delivers a clean, seamless look across all panel edges with no protruding hardware to disrupt the sleek silhouette. Constructed for long-term regular use, the nightstand uses durable panel materials tailored to each component: 18mm melamine-faced particleboard forms the outer case, top, and plinth base, while drawer fronts use an 18mm MDF substrate for a smooth high-gloss finish. Internal drawer boxes are built from 12mm melamine-faced MDF with a light neutral interior, set on full-extension zinc-plated cold-rolled steel slides fitted with integrated hydraulic soft-close dampers that prevent slamming and pull drawers closed gently. The slides are rated for 50000 open/close cycles, while exterior surfaces resist scuffs through 2000 abrasion cycles. The 3mm dark matte hardboard back panel adds structural rigidity, and adjustable leveling feet on the plinth base compensate for uneven floor surfaces, with pre-drilled rear anchor points included for anti-tip wall restraint. Each drawer supports 15 kg of static load, the top surface holds a maximum of 50 kg, and the unit delivers 78 L of total internal storage across two equal-height deep drawers. Recessed integrated gap handles enable smooth operation, with push-to-open compatibility, and full slide extension allows unobstructed access to the full drawer interior for easy organization of folded clothing, accessories, and daily essentials. This nightstand suits a range of spaces: it works as primary bedside storage beside single or double beds in residential bedrooms, holding lamps, books, and personal items, functions as compact side storage next to sofas in small apartment living rooms for media accessories, serves as consistent matching bedside storage in mid-range hotel guest rooms, and fits as under-desk or side storage for stationery and documents in compact home offices. It pairs seamlessly with two-tone platform beds, dressers, and wardrobes from the same product collection. For procurement, note the unit ships across 2 cartons per set, requires 40 minutes of assembly per unit, has a net weight of 32 kg, and a packaged gross weight of 130 kg per set.
