首页 > 首页 > Hospitality Project Furniture > Hotel Guest Room Furniture > Hotel Nightstand > NS-UPL-1DR-GUN-550

Modern Upholstered Single-Drawer Nightstand with Curved Metal Carry Handle Specifications

NS-UPL-1DR-GUN-550

代码:Z0LP2AV1
获取供应商报价
2026-09-07 18:51人气: 30
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

NS-UPL-1DR-GUN-550

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions480 x 400 x 550 mm
Tabletop lip height20 mm
Drawer internal dimensions400 x 330 x 150 mm
Leg diameter10 mm
Rear handle height above tabletop220 mm
Floor clearance under drawer200 mm
X-brace height from floor100 mm
Drawer front pull diameter30 mm
Body corner radius30 mm
Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Tabletop static load capacity68 kg
Net product weight9 kg
Recommended maximum load on rear handle10 kg
Upholstery abrasion resistance30000 cycles
Floor glide scratch resistancePass residential floor protection requirements
Reference Static Load150 kg depending on category
Moving-part Durability ReferenceAcceptance target 50000 cycles
Recommended Procurement WarrantyStructure 5 years; hardware 3 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Body core substrate15 mm thick MDF engineered wood
Exterior upholstery1.2 mm thick stitched faux leather
Leg and frame material1.2 mm thick gunmetal powder-coated steel
Cross bracing8 mm diameter steel rod X-brace
Drawer hardwareZinc alloy ring pull with antique bronze finish
Drawer slidesSide-mounted Euro-style metal glides
Leg feetPolyethylene non-marking floor glides
Stitching details8 mm stitch pitch along upholstery seams
Primary Connector SpecificationReference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Drawer operationSingle front drawer with 300 mm extension on side glides
Rear handle functionCurved tubular bar for lightweight repositioning and towel hanging
Tabletop surface functionRaised lip tray surface to prevent small item slippage
Base stabilityX-shaped metal cross brace reduces leg wobble during use
Floor protectionNon-marking glides prevent scuffs on hard and soft flooring
Assembly requirementKnock-down leg and handle attachment with included hardware
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Packaging Volume0.8 m³/set
Reference Packaged Gross Weight120 kg/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Primary placementBedroom bedside position next to twin or queen size beds
Secondary placementLiving room side table next to sofas or accent chairs
Target userResidential consumers seeking modern minimalist upholstered storage furniture
Surface use caseHolds table lamps, smartphones, books, and small bedside essentials
Drawer use caseStores remote controls, reading glasses, skincare, and personal accessories
Style suitabilityWorks with modern, contemporary, and Scandinavian interior design schemes
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Surface flammabilityEN 1021:2014 cigarette resistance
Structural strengthEN 12521:2015
Hardware performanceEN 15338:2007
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Formaldehyde emissionGB/T 18580E1 grade
Mechanical stabilityGB/T 10357.1
Hardware durabilityGB/T 10357.5
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. Formaldehyde emission:GB/T 18580E1 grade;
2. Mechanical stability:GB/T 10357.1;
3. Hardware durability:GB/T 10357.5;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · NS-UPL-1DR-GUN-550

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · NS-UPL-1DR-GUN-550

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · NS-UPL-1DR-GUN-550打开导出工具

页面快速操作

发布采购询价

产品描述

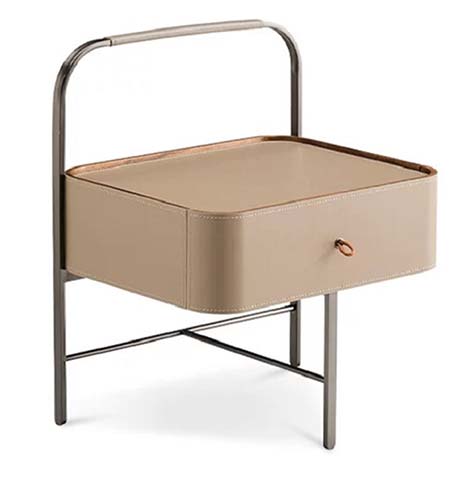

The Modern Upholstered Single-Drawer Nightstand offers a sleek, refined storage solution aligned with modern, contemporary, and Scandinavian interior design sensibilities. Its streamlined form features a softly upholstered body paired with a slim gunmetal-finish steel frame and legs, anchored by a low-profile X-shaped cross brace to minimize structural wobble during regular use. A raised integrated lip runs along the tabletop perimeter, while a smoothly curved tubular metal handle rises from the rear edge, creating a balanced visual silhouette that complements both soft upholstered furnishings and linear metal fixtures. The nightstand is built around a 15mm thick MDF engineered wood core, fully wrapped in 1.2mm thick stitched faux leather with consistent 8mm pitch seams for a tailored, polished finish. Its supporting frame and legs are constructed from 1.2mm thick gunmetal powder-coated steel, reinforced with an 8mm diameter steel rod X-brace at the base. The single front drawer is fitted with a zinc alloy antique bronze finish ring pull and side-mounted Euro-style metal glides that support full extension for easy access, while polyethylene non-marking glides on the leg feet prevent scuffs across both hard and soft residential flooring surfaces. Major joints use appropriately sized connectors with at least two fixing points each to support stable long-term use. Practical design features address everyday household needs: the raised tabletop lip stops small items from slipping off the surface, which easily supports table lamps, smartphones, books, and common bedside essentials. The drawer offers enclosed storage for remote controls, reading glasses, skincare products, and personal accessories, while the rear curved bar handle serves dual purposes as a lightweight repositioning aid and a hanging point for small linens or towels. The elevated base creates open clearance below the drawer for a light, uncluttered visual profile. This unbranded model, SKU NS-UPL-1DR-GUN-550, is suited for residential use, designed primarily as a bedside fixture positioned next to twin or queen size beds in private bedrooms, and works equally well as a compact side table placed beside sofas or accent chairs in living spaces. It targets homeowners seeking minimalist, upholstered storage pieces that blend soft texture with durable metal framing. For procurement planning, note that the unit ships knock-down with all required hardware included for assembly, with two cartons per set and a noted assembly time per unit. The upholstery is rated for heavy residential abrasion resistance, and floor glides meet residential floor protection requirements to avoid surface damage during regular use. The tabletop supports a 68kg static load, while the rear handle is rated for a 10kg maximum load to avoid damage during repositioning. Order volume planning should account for the noted packaging volume per set, and the lightweight net weight makes the piece easy to maneuver between rooms once fully assembled.
