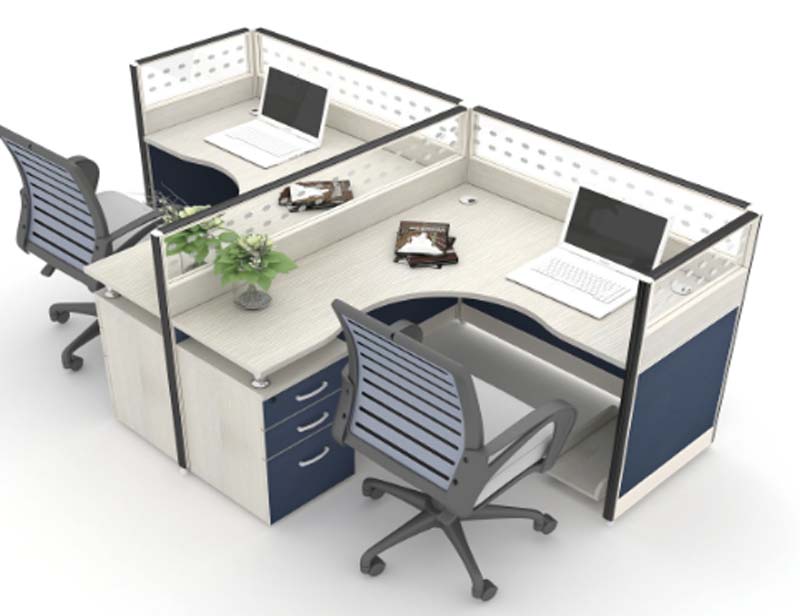

2-Person Cross-Shaped Modular Office Workstation with Dividers and Pedestals Specifications

WS-CR2-2400

代码:0GNFXDV1
获取供应商报价
2026-09-03 18:07人气: 17
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

WS-CR2-2400

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total workstation net weight185 kg
Per-seat work surface static load capacity100 kg
Recommended user capacity2 people
Divider acoustic attenuation15 dB
Work surface abrasion resistance2000 cycles
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
Top Abrasion ReferenceAcceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement WarrantyStructure 5 years; hardware 3 years; finish 2 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Work surface25mm melamine-faced particleboard, light wood grain finish, sealed edge banding
Partition dividersAluminum edge frame, perforated acoustic fabric panel, off-white with dark trim
Drawer pedestals18mm melamine particleboard, two-tone light wood and navy blue finish, 3 drawers per unit
Drawer hardwarePolished chrome curved pull handles, steel drawer slides
Partition support postsBlack powder-coated square steel posts
Desk leveling feetChrome-plated adjustable steel glides
Included chair frameGlass-filled nylon grey frame, slatted mesh backrest, fabric seat pad
Chair base components320mm diameter nylon five-star base, 50mm nylon twin-wheel casters
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
Primary Connector SpecificationReference M6-M8 with at least 2 fixing points per main support
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Workspace divisionCross-shaped partition separates two work positions for visual privacy between users
Cable management60mm desktop grommet per seat routes power and data cables under the work surface
Onboard storage3 fully extendable drawers per user pedestal store office supplies and documents
Chair adjustmentIncluded swivel task chairs provide 360-degree rotation, 100mm gas lift height adjustment
MobilityChair casters allow smooth rolling on hard or carpeted office floors, 40kg chair static load rating
Modular assemblyBolt-together frame and panel construction allows reconfiguration or expansion of workstation clusters
Level adjustmentAdjustable steel glides compensate for uneven floor surfaces to keep worktops stable
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open plan officesProvides divided individual workspaces for two staff in shared open office environments
Startup workspacesCost-effective modular configuration for growing teams requiring dedicated work positions
Call center facilitiesBalanced divider height supports focus work while allowing supervisor visibility across the floor
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office worktables and desks, applies to safety and dimensional requirements for work surfaces
EN 1335-1:2020Office work chairs, applies to dimensional and strength requirements for included task chairs
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017Office chairs, applies to strength, durability and stability requirements for included task chairs
ANSI/BIFMA X5.5-2021Desk products, applies to load and durability requirements for work surfaces and storage
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden office furniture, applies to desk and cabinet components
GB/T 3327-2016Office desks and tables, applies to work surface dimensional and strength requirements
GB/T 35607-2017Green product assessment for furniture, applies to formaldehyde emission limits
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden office furniture, applies to desk and cabinet components;
2. GB/T 3327-2016:Office desks and tables, applies to work surface dimensional and strength requirements;
3. GB/T 35607-2017:Green product assessment for furniture, applies to formaldehyde emission limits;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · WS-CR2-2400

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · WS-CR2-2400

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · WS-CR2-2400打开导出工具

页面快速操作

发布采购询价

产品描述

The WS-CR2400is an unbranded 2-person cross-shaped modular office workstation designed to deliver structured, private individual work zones within shared environments. Its defining visual layout centers on a cross-shaped partition that splits the unit into two distinct work positions, creating clear visual separation between adjacent users. The work surfaces carry a light wood grain finish with sealed edge banding, paired with off-white acoustic dividers trimmed in dark accents, two-tone light wood and navy blue drawer pedestals, and black powder-coated steel support posts for a balanced, professional aesthetic that fits a range of interior design schemes. Included matching task chairs feature grey glass-filled nylon frames, slatted mesh backrests, fabric seat pads, and five-star nylon bases for a cohesive, put-together look. Constructed for durable daily use, the workstation uses melamine-faced particleboard for all panel components, with a composite build-up for load-bearing worktop sections, supported by steel support posts and chrome-plated adjustable steel glides to compensate for uneven floors and keep surfaces stable. Dividers are built with aluminum frames surrounding perforated acoustic fabric panels to cut down on cross-user noise, while all structural connections use steel hardware. Each user position includes a rolling task chair fitted with nylon twin-wheel casters that move smoothly across both hard flooring and carpeted office surfaces. Functional design elements are tailored to focused office work: each seat has a dedicated desktop grommet to route power and data cables to an under-desk cable tray, eliminating desktop clutter. Each matching pedestal holds three fully extendable drawers with polished chrome pulls and steel slides, providing dedicated storage for office supplies and documents. The included swivel chairs offer 360-degree rotation and gas lift height adjustment to suit different user preferences. The bolt-together modular frame supports easy reconfiguration or expansion to build larger workstation clusters as spatial needs change. This workstation is well suited for open plan offices, where it delivers separated individual workspaces for two staff without fully enclosing users. It also serves as a cost-effective option for startup workspaces supporting growing teams that need dedicated work positions, and fits call center facilities, where its divider height supports individual focus while maintaining clear sightlines for floor supervisors. For procurement planning, note that each set ships across multiple cartons, with a stated reference assembly time per unit, and includes two pedestals and two task chairs as part of the complete workstation package. The modular design allows for easy expansion of clusters over time, making it a flexible choice for spaces anticipating future headcount growth.
