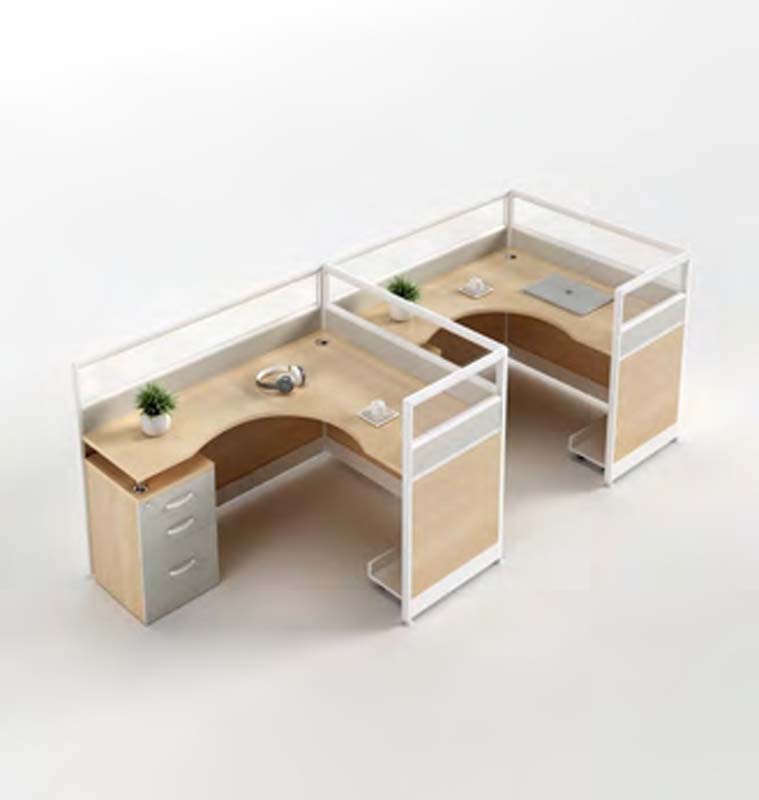

商品供应商2-Person Back-to-Back L-Shaped Office Cubicle Workstation with Dividers and 3-Drawer Pedestal,Particle‑board (PB)
可联系供应商获取生产周期与报价。
| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
暂无参数纠错记录,发现错误可点击行末旗标提交 | ||||
mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall footprint (2-station unit) | 2400 x 1450 x 1200 mm | |
|---|---|---|
| Single L-segment work surface | 1500 x 600 mm | |
| Standard desktop height | 750 mm | |
| Total partition height above floor | 1200 mm | |
| Desktop thickness | 25 mm | |
| Partition panel thickness | 40 mm | |
| 3-drawer storage pedestal | 400 x 550 x 725 mm | |
| Sitting knee clearance height | 670 mm | |
| Cable grommet diameter | 60 mm | |
| Upper translucent panel height | 400 mm | |
| Lower solid partition panel height | 800 mm | |
| Footrest ledge depth at partition base | 150 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
净重 / 最大承重 / 适用人数 / 耐久性能
| Per-station desktop uniform static load | 150 kg | |
|---|---|---|
| Single drawer load rating | 30 kg | |
| Drawer slide open/close cycle rating | 50000 cycles | |
| Steel frame static load rating (total unit) | 300 kg | |
| Total unit reference net weight | 155 kg | |
| Laminate surface wear resistance (rub rating) | 20000 rubs | |
| Adjustable leveling foot adjustment range | 10 mm | |
| Standard commercial parts and hardware warranty | 5 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Work surface | 25mm E1 grade MFC with melamine laminate, 2mm PVC rounded edge banding | |
|---|---|---|
| Partition framing | 1.2mm thick cold-rolled steel, white powder-coated, rust and corrosion resistant | |
| Upper partition section | 5mm frosted tempered acrylic, 50% light transmission, anti-glare finish | |
| Lower partition section | 18mm E1 grade MFC with matching light wood melamine finish | |
| 3-drawer pedestal | 18mm MFC cabinet body, silver powder-coated steel drawer fronts, central lock | |
| Drawer slides | 3-section full-extension silent steel ball-bearing slides | |
| Integrated footrest ledge | 1.2mm steel frame with matching MFC top surface | |
| Cable management components | ABS plastic cable grommets, under-desk steel cable tray along partition base | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Cable routing system | One 60mm grommet per work surface, internal cable chase in partition base | |
|---|---|---|
| Drawer locking system | Central interlocking lock, one key secures all three pedestal drawers | |
| Knee space design | Curved concave cutout at seated position, 670mm minimum vertical clearance | |
| Partition privacy design | 1200mm mid-height dividers with frosted upper panel, 50% light transmission | |
| Integrated footrest | 150mm deep raised ledge at partition base under each station | |
| Modular connection system | Bolt-together steel frame connectors for reconfiguration or expansion | |
| Leveling adjustment | Threaded adjustable feet at all support points, 10mm vertical travel | |
| Storage configuration | Three equal-height drawers in left pedestal for stationery and file storage | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
推荐空间 / 目标用户 / 使用方式
| Open-plan office workspace | Provides individual privacy for two staff in shared office areas | |
|---|---|---|
| Administrative and back-office departments | Suitable for HR, finance, and clerical roles needing document storage | |
| Call center and shared team zones | Compact footprint maximizes seat count without sacrificing work space | |
| Startup and co-working spaces | Modular design supports flexible reconfiguration as teams change | |
| Government and institutional offices | Meets standard public procurement durability and emission requirements | |
| Standard ergonomic setup | Pairs with mid-back office chairs and monitor arms for seated work |
欧洲市场准入与化学品要求
| EN 527-2:2002 | Office work tables, safety and strength requirements for work surfaces | |
|---|---|---|
| EN 15372:2016 | Furniture, strength and durability for non-domestic office storage units | |
| EN 13986:2004 | Wood-based panels for construction and furniture use, emission limits |
美国及加拿大家具标准
| 北美市场选型与验收 | ANSI/BIFMA X5.5 办公桌及桌类产品 |
|---|
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk and partition components | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit ≤0.124mg/m³ for wood-based panels used in furniture | |
| GB/T 3327-2017 | Performance requirements for office desks, covering static load and durability | |
| GB/T 4897.3-2015 | Requirements for particleboard used in furniture structural components |
本产品须满足以下技术参数要求: 1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to desk and partition components; 2. GB 18580-2017:Formaldehyde emission limit ≤0.124mg/m³ for wood-based panels used in furniture; 3. GB/T 3327-2017:Performance requirements for office desks, covering static load and durability; 4. GB/T 4897.3-2015:Requirements for particleboard used in furniture structural components; 最终交付参数、检测报告和验收标准以双方采购合同为准。
