mm / 英寸自动双单位换算 · 工程采购基础规格

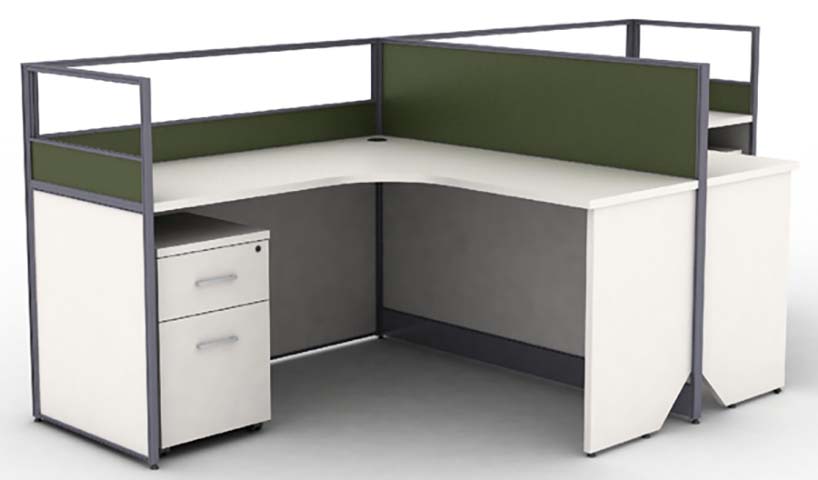

| Overall footprint (single L-station) | 1400 x 1400 x 1200 mm | |
|---|---|---|
| Work surface height | 750 mm | |
| Work surface thickness | 25 mm | |
| Partition frame thickness | 1.5 mm | |
| Privacy panel thickness | 40 mm | |
| Knee clearance height under worktop | 650 mm | |
| Knee clearance depth at curved corner | 500 mm | |
| Mobile pedestal dimensions | 400 x 500 x 600 mm | |
| PVC edge banding thickness | 2 mm | |
| Cable grommet diameter | 80 mm | |
| Drawer slide travel length | 450 mm | |
| Leveler foot adjustment range | 20 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
净重 / 最大承重 / 适用人数 / 耐久性能
| Work surface static load capacity | 300 kg | |
|---|---|---|
| Mobile pedestal drawer static load per drawer | 45 kg | |
| Formaldehyde emission (E1 board) | 0.05 mg/m³ | |
| TVOC emission | 0.1 mg/m³ | |
| Partition strong/weak current cable separation | 300 mm | |
| Warranty period | 5 years | |
| Drawer slide cycle life | 50000 cycles | |
| Net weight per single L-station | 85 kg | |
| Available standard color options | 2 | |
| Reference Static Load | 150 kg depending on category |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Work surface substrate | E1 grade melamine-faced particleboard | |
|---|---|---|
| Work surface edging | 2mm thick PVC edge banding | |
| Partition framing | 1.5mm thick powder-coated gray cold-rolled steel | |
| Privacy panel facing | Olive green woven office linen fabric | |
| Privacy panel core | 0.8mm thick cold-rolled steel backing | |
| Modesty panel | 18mm thick melamine-faced particleboard | |
| Mobile pedestal cabinet | 18mm thick white melamine particleboard | |
| Drawer slides | 3-section silent ball-bearing steel slides | |
| Drawer pulls and lock | Brushed aluminum pulls, central keyed lock | |
| Casters | 50mm diameter black nylon swivel casters | |
| Leveler feet | Nylon base steel threaded levelers | |
| Cable grommet | ABS plastic circular cable port |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Cable management | 80mm desk grommet plus internal partition raceways | |
|---|---|---|
| Mobile pedestal storage | 2 lockable drawers, top stationery drawer, bottom hanging file drawer | |
| Floor leveling | Threaded adjustable feet at all frame base points | |
| Modular connectivity | Pre-drilled frame connection points | |
| Drawer operation | Full-extension ball-bearing slides with soft close | |
| Privacy screening | 40mm thick fabric partitions at 1200mm height | |
| Knock-down assembly | Cam-lock and bolted frame connection | |
| Pedestal mobility | 4 swivel casters, 2 with locking brakes | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
推荐空间 / 目标用户 / 使用方式
| Open plan office spaces | Creates individual focused work zones in high-density open layouts | |
|---|---|---|
| Corporate administrative work areas | Suitable for clerical, data entry, and administrative task work | |
| Startup and co-working spaces | Modular design allows reconfiguration as team sizes change | |
| Government and institutional offices | Meets standard procurement emission and durability requirements | |
| Call center environments | Dense cluster layout capability with acoustic fabric privacy screening | |
| Small business office fit-outs | All-in-one workstation with included mobile pedestal |
欧洲市场准入与化学品要求
| EN 527-1:2011 | Office work tables, safety and strength requirements | |
|---|---|---|
| EN 1335-1:2020 | Office work chairs dimensional coordination | |
| EN 14073-2:2004 | Office storage furniture, safety requirements | |
| EN 1022:2018 | Furniture seating stability guidance |
美国及加拿大家具标准
| ANSI/BIFMA X5.5-2021 | Desk products performance standard | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard | |
| ANSI/BIFMA X5.1-2017 | Office chairs standard |
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden furniture | |
|---|---|---|
| GB/T 3327-2019 | Metal furniture general technical requirements | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels | |
| GB/T 35607-2017 | Office furniture screen partition technical requirements | |
| GB/T 10357.1-2013 | Furniture mechanical performance test for tables |
本产品须满足以下技术参数要求： 1. GB/T 3324-2017：General technical requirements for wooden furniture； 2. GB/T 3327-2019：Metal furniture general technical requirements； 3. GB 18580-2017：Formaldehyde emission limits for wood-based panels； 4. GB/T 35607-2017：Office furniture screen partition technical requirements； 5. GB/T 10357.1-2013：Furniture mechanical performance test for tables； 最终交付参数、检测报告和验收标准以双方采购合同为准。
