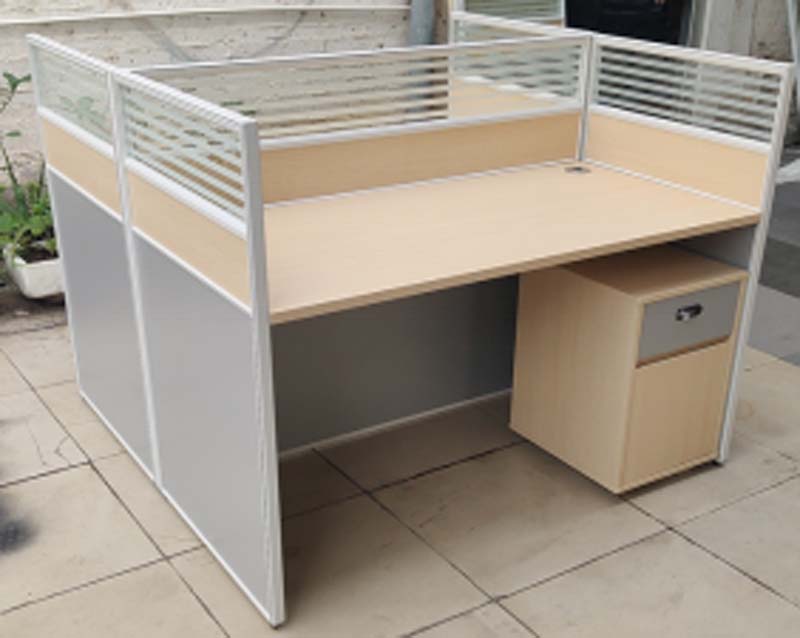

Name: Single-Seat Straight Office Cubicle Workstation with Mobile Pedestal
Brand: KANAITE
SKU: 18QJ3E

纠错时间

修改字段

原参数

修改后参数

说明 / 状态

暂无参数纠错记录，发现错误可点击行末旗标提交

PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	1400 × 1200 × 1100 mm
Overall workstation dimensions	1400 x 1200 x 1100 mm
Work surface height	750 mm
Worktop thickness	25 mm
Total partition height from floor	1100 mm
Upper slatted frosted screen height	350 mm
Lower solid partition panel height	750 mm
Knee clearance height under worktop	673 mm
Mobile pedestal dimensions	400 x 500 x 650 mm
Cable grommet diameter	80 mm
Aluminum partition frame profile thickness	1.2 mm
Partition panel total thickness	60 mm
Pedestal caster diameter	51 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Worktop static uniform load capacity	200 kg
Total workstation net weight	70 kg
Partition sound insulation rating	35 dB
Melamine surface scratch resistance	2000 cycles
Substrate formaldehyde emission level	0.025 mg/m³
Standard product warranty	10 years
Available finish color options	14
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Worktop surface	E0 grade melamine-faced chipboard, 2mm PVC edge banding
Partition frame	1.2mm thick powder-coated white aluminum alloy extrusion
Upper privacy screen	Horizontal slatted frosted tempered glass, aluminum retainer strips
Lower partition panel	Melamine-faced MDF core panel, fabric-backed optional tack surface
Mobile pedestal cabinet	E0 grade melamine-faced particleboard, matching beech finish
Pedestal top drawer front	Gray melamine panel with integrated keyed cam lock
Pedestal casters	Silent swivel nylon casters, 2 lockable units per cabinet
Hardware connectors	Zinc-plated steel screw and cam lock fasteners
Cable grommet	ABS plastic circular cable port with brush insert
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Privacy screening	Three-sided half-height dividers block direct line of sight between adjacent seats
Cable management	Rear worktop grommet routes monitor and power cables under the desk surface
Mobile storage	Rolling pedestal fits fully under worktop, lockable top drawer secures valuables
Modular reconfiguration	Aluminum frame connection system supports linking multiple stations into rows
Pedestal mobility	Four swivel casters allow repositioning storage without lifting the unit
Surface durability	Stain and moisture resistant melamine finish supports daily office cleaning
Knee access	Open central knee well allows unobstructed seated leg movement and chair tuck
Assembly structure	Knock-down flat pack design reduces shipping volume for bulk projects
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Open plan office staff seating	Suitable for high-density open office layouts with balanced visual privacy
Administrative and clerical workspaces	Ideal for data entry, admin, and general office tasks requiring computer access
Call center and shared work areas	Supports high-turnover shared work environments with durable surfaces
Startup and small business offices	Modular design supports incremental expansion as headcount grows
Temporary project team workspaces	Reconfigurable layout adapts to short-term project team seating changes

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Office work surface strength and durability	EN 527:2002
Office furniture storage unit stability	EN 14073:2004
Office furniture ergonomic dimensions	EN 527:2011

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

Office desk load and durability standard	ANSI/BIFMA X2021
Mobile storage cabinet performance standard	ANSI/BIFMA X2019

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Office furniture desk performance standard	GB/T 3325
Formaldehyde emission for wood-based panels	GB 18580
Tempered glass safety standard	GB 15763.2

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. Office furniture desk performance standard：GB/T 3325；
2. Formaldehyde emission for wood-based panels：GB 18580；
3. Tempered glass safety standard：GB 15763.2；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · CUB-S1200-SLD-MBL

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · CUB-S1200-SLD-MBL

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CUB-S1200-SLD-MBL打开导出工具

页面快速操作

发布采购询价

产品描述

KANAITE Single-Seat Straight Office Cubicle Workstation with Mobile Pedestal, model CUB-S1200-SLD-MBL, is a purpose-built modular office desk solution designed to balance privacy, functionality, and adaptability for modern work environments. Visually, the workstation features a clean, structured layout with three-sided half-height dividers that separate adjacent workspaces without creating fully enclosed barriers. The partition system combines a lower solid panel and an upper horizontal slatted frosted tempered glass screen, framed by powder-coated white aluminum alloy extrusions for a crisp, professional aesthetic. The straight work surface pairs with a rolling storage pedestal that tucks fully under the desk, maintaining an uncluttered footprint while keeping storage within easy reach. The unit is constructed for long-term commercial use. The worktop uses E0 grade melamine-faced chipboard with 2mm PVC edge banding, supported by a substrate of particleboard, while the lower partition panel features a melamine-faced MDF core with an optional fabric-backed tack surface. The mobile pedestal is built from matching E0 grade melamine-faced particleboard with a beech finish, fitted with four silent swivel nylon casters, two of which lock for stable positioning. All connections use zinc-plated steel screw and cam lock fasteners, with an ABS plastic circular cable grommet with brush insert integrated into the rear of the worktop. Core functional features support daily office workflow: the three-sided dividers block direct line of sight between adjacent seats for balanced privacy, while the cable grommet routes monitor and power cords neatly below the work surface. The lockable top drawer of the mobile pedestal secures personal or sensitive items, and the open central knee well provides unobstructed leg room and space to tuck an office chair when not in use. The aluminum frame connection system allows multiple units to be linked into continuous rows for scalable layouts, and the stain- and moisture-resistant melamine finish stands up to regular office cleaning. This workstation is well suited for high-density open plan office staff seating, administrative and clerical workspaces for computer-based tasks, call center and shared work areas with high user turnover, startup and small business offices planning incremental headcount growth, and temporary project team workspaces requiring flexible reconfiguration. For procurement, note the unit ships in two cartons per set, requires on-site assembly, and offers a range of finish color options to match existing office decor. It comes with a 10-year standard product warranty, and its modular design allows teams to expand or rearrange seating layouts without full furniture replacement.

Single-Seat Straight Office Cubicle Workstation with Mobile Pedestal Specifications
