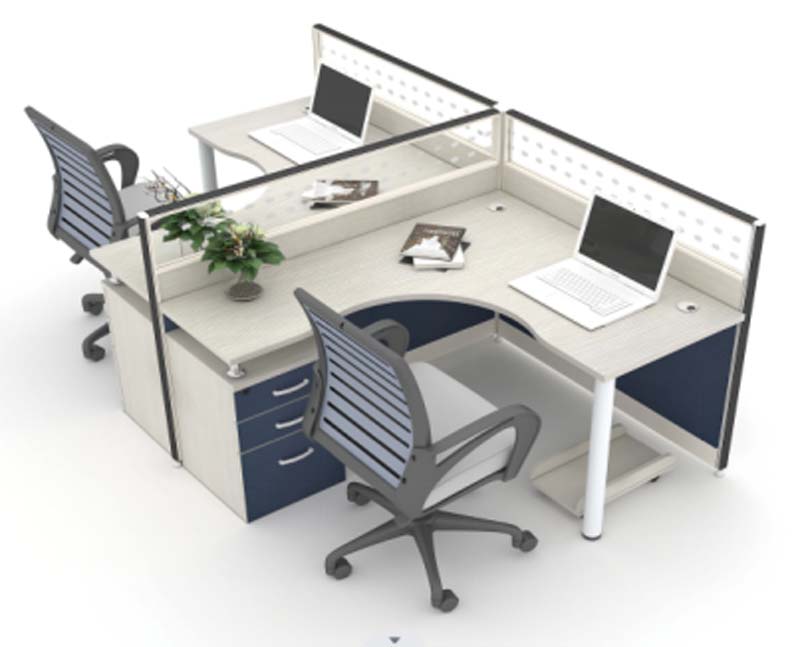

2-Person Curved Corner Modular Office Cubicle Workstation Specifications

WS-2P-CRV-3DRW-CPU

代码:2EKT87V1
获取供应商报价
2026-09-04 09:45人气: 11
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

WS-2P-CRV-3DRW-CPU

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

overall footprint2800 x 2400 x 1250 mm
per L-shaped work surface1600 x 1600 mm
work surface height760 mm
desktop thickness25 mm
privacy screen thickness40 mm
frosted lower divider thickness10 mm
knee clearance height650 mm
knee clearance width at curved opening800 mm
3-drawer pedestal dimensions450 x 500 x 650 mm
CPU holder shelf dimensions250 x 500 x 150 mm
cable grommet diameter60 mm
modesty panel height400 mm
cylindrical support leg diameter60 mm
PVC edge banding thickness2 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

product net weight130 kg
desktop static uniform load capacity150 kg
surface abrasion resistance2000 cycles
accommodated users2 people
product warranty period5 years
drawer slide cycle rating50000 cycles
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
Top Abrasion ReferenceAcceptance target ≥4,000 abrasion cycles or finish-system test
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

work surface substrateE1-grade MFC particleboard with melamine laminate
work surface edge banding2mm thick PVC edge sealing
privacy screen frameAnodized aluminum alloy framing
upper privacy divider panelDot-pattern frosted acrylic panel
lower modesty/divider panel10mm thick navy blue melamine-faced MDF panel
support legsPowder-coated cylindrical steel tubing
drawer frontsNavy blue melamine-faced MDF with curved metal pull handles
pedestal cabinet bodyLight wood grain melamine-faced MDF
hardware componentsZinc-plated steel screws, cam locks, and connecting fittings
cable management grommetsABS plastic round desk grommets
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

curved ergonomic knee openingConcave cutout at each seated position provides unobstructed leg room for seated use
fixed 3-drawer pedestal storageIntegrated left-side pedestal with three lockable drawers for office supply and file storage
under-desk CPU holder shelfRoll-out lower shelf on right side secures desktop computer tower off the floor
modular privacy divider systemFrame-mounted screens separate adjacent workstations to reduce visual distraction between users
desktop cable managementDual 60mm grommets per work surface route monitor and power cords to under-desk channels
leveling adjustment feetAdjustable glides on cabinet bases and leg bottoms compensate for uneven floor surfaces
knock-down modular assemblyFlat-pack design allows reconfiguration and expansion to add additional workstations
lockable drawer optionTop drawer supports keyed lock for secure storage of personal or confidential items
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

open plan office areasSuitable for 2-person staff clusters in open offices to balance privacy and collaboration
small business workspacesIdeal for startup or branch office environments with limited floor space for compact two-person teams
government and administrative officesAppropriate for civil service and administrative staff work positions requiring durable, standardized furniture
call center and back-office operationsSuitable for high-occupancy task work requiring cable management and personal storage
paired project team work areasDesigned for two-person project teams needing adjacent, separated work surfaces with shared access layout
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office work tables safety and strength requirements, applicable to commercial workstation design
EN 527-2:2016Office work tables dimensional and adjustability requirements, applicable to ergonomic height
EN 1335-1:2020Office furniture work chair dimensions, reference for matching chair compatibility with knee clearance
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk products performance standard, applicable to load and durability testing
ANSI/BIFMA X5.9-2019Storage units performance standard, applicable to drawer pedestal load and cycle testing
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to structural and finish quality
GB/T 35607-2017Green product assessment standard for furniture, applicable to low-VOC material requirements
GB/T 10357.1-2013Furniture mechanical performance test for tables, applicable to desktop static load testing
GB 18580-2017Formaldehyde emission limit for wood-based panels, applicable to E1-grade substrate verification
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to structural and finish quality;
2. GB/T 35607-2017:Green product assessment standard for furniture, applicable to low-VOC material requirements;
3. GB/T 10357.1-2013:Furniture mechanical performance test for tables, applicable to desktop static load testing;
4. GB 18580-2017:Formaldehyde emission limit for wood-based panels, applicable to E1-grade substrate verification;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · WS-2P-CRV-3DRW-CPU

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · WS-2P-CRV-3DRW-CPU

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · WS-2P-CRV-3DRW-CPU打开导出工具

页面快速操作

发布采购询价

产品描述

The 2-Person Curved Corner Modular Office Cubicle Workstation (model WS-2P-CRV-3DRW-CPU, unbranded) features a streamlined partitioned layout tailored to balance collaborative access and individual focus, with a cohesive two-tone finish pairing light wood grain cabinet bodies and navy blue drawer and lower divider panels for a polished, professional visual profile. Each unit has a 2800 x 2400 x 1250 mm overall footprint, with paired 1600 x 1600 mm L-shaped work surfaces set at a standard 760 mm work height, anchored by powder-coated cylindrical steel legs for stable support. The modular divider system pairs anodized aluminum-framed dot-pattern frosted acrylic upper privacy screens (40 mm thick) with 10 mm thick navy blue melamine-faced MDF lower modesty panels, creating soft visual separation without blocking overhead light or team connection. All work surfaces use 25 mm thick E1-grade MFC particleboard topped with melamine laminate, sealed with 2 mm thick PVC edge banding to resist daily wear, with tested surface abrasion resistance rated for 2000 cycles, and hardware constructed from zinc-plated steel screws, cam locks, and connecting fittings for long-term structural integrity. Each seated position includes a concave curved ergonomic knee opening offering 650 mm of clearance height and 800 mm of width at the cutout for unobstructed leg room. Functional design elements support efficient daily work: each work surface integrates dual 60 mm cable management grommets to route monitor and power cords to under-desk channels, while each station includes a fixed integrated left-side 3-drawer lockable pedestal for office supply and file storage, with drawer slides rated for 50000 open-close cycles. The right side of each station holds a roll-out under-desk CPU shelf that secures computer towers off the floor, and adjustable leveling glides on leg bases and cabinet bottoms compensate for uneven floor surfaces. The knock-down flat-pack design supports future reconfiguration or expansion to connect additional workstations, with a 40-minute per-set assembly time. The workstation supports 2 total users, with a 150 kg uniform static load capacity per desktop, and comes with a 5-year product warranty. It is ideally suited for open plan office 2-person staff clusters, small business and startup workspaces with limited floor area, government and administrative staff positions, high-occupancy call center and back-office task zones, and paired project team areas where adjacent but separated work surfaces support coordinated work. Procurement teams should note the flat-pack delivery uses 2 cartons per set with a total packaged gross weight of 180 kg and 1 m³ total packaging volume, and account for assembly resources during deployment planning.
