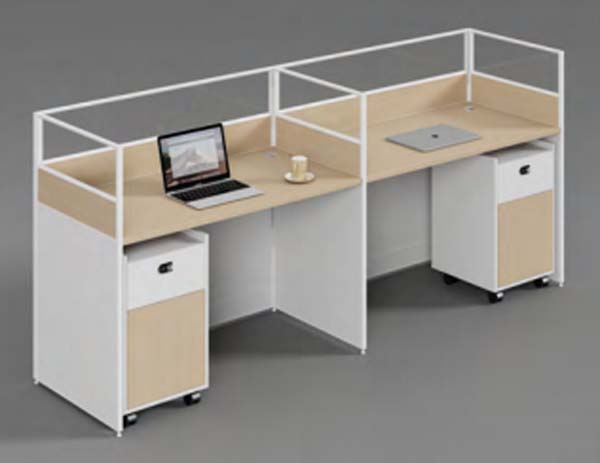

2-Person Side-by-Side Office Cubicle Workstation Desk with Mobile Pedestals Specifications

WS2-LW-2400-CB-WF

代码:368XK7V1
获取供应商报价
2026-09-01 17:29人气: 15
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

WS2-LW-2400-CB-WF

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall unit dimensions2400 x 600 x 1100 mm
Per-seat work surface size1200 x 600 mm
Standard work surface height750 mm
Under-desk knee clearance height620 mm
Low privacy divider height above desk350 mm
Upper frame rail total height above floor1100 mm
Worktop thickness25 mm
Mobile pedestal dimensions400 x 500 x 600 mm
PVC edge banding thickness2 mm
Steel frame tube section size30 x 30 mm
Cable grommet diameter60 mm
Modesty panel height below worktop450 mm
Caster diameter on mobile pedestals50 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Worktop static uniform load capacity100 kg
Drawer slide open/close cycle rating50000 cycles
Cabinet hinge open/close cycle rating100000 cycles
Work surface abrasion resistance2000 cycles
Steel frame powder coating thickness65 um
Powder coating salt spray resistance72 h
Work surface finish pencil hardness8H
Total unit net weight (including pedestals)100 kg
Recommended maximum user weight per seat120 kg
Top Static Load Reference150 kg uniformly distributed
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Worktop substrateE1-grade particle board
Worktop surface finishLight beech-tone melamine laminate
Desk and pedestal edge protection2mm thick matching PVC edge banding
Frame and partition support structurePowder-coated square steel tubing
Partition and modesty panelsMelamine-faced MDF panels
Mobile pedestal castersBlack nylon swivel casters, 4 per cabinet
Drawer and door hardwareZinc-alloy pull handles and steel hinges
Cable grommet trimABS plastic grommets
Frame connection hardwareZinc-plated steel connector bolts and cam locks
Pedestal storage compartmentsSteel-reinforced drawer and cabinet box structure
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Two independent seated work positionsSide-by-side layout separated by central divider, unobstructed knee clearance for each user
Lockable mobile under-desk pedestalsOne cabinet per user, fitted with 4 swivel casters for repositioning, 1 top drawer and 1 lower door compartment
Integrated cable management60mm diameter grommet on each work surface routes cables from desk top to floor area
Low-profile privacy dividers350mm high desk-mounted panels reduce visual distraction between adjacent users without blocking overhead light
Full-height side modesty panels450mm high panels below worktop block view of seated users' legs from side aisles
Knock-down flat-pack assemblyBolted steel frame and panel connections allow on-site assembly without specialized welding tools
Adjustable floor glidesLeveling glides at frame base compensate for uneven office flooring
Reconfigurable modular designFrame rail system allows connection to additional adjacent workstations for larger team layouts
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open-plan office staff work areasSide-by-side layout fits linear office floor plans for clerical, administrative or finance teams
Small business shared workspacesCompact 2.4m length fits small office footprints without separate private offices
Call center and data entry work zonesLow dividers reduce cross-talk distraction while allowing supervisor line of sight
Temporary project team setupsModular frame allows reconfiguration as team sizes and project needs change
Government and institutional office areasDurable commercial-grade construction meets high-traffic public sector office use requirements
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office work tables and desks, safety and dimensional requirements for work surfaces
EN 527-2:2002Office work tables, mechanical safety requirements and test methods for structural stability
EN 13722:2004Office furniture, storage cabinets performance requirements for mobile pedestals
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk products standard, applicable to worktop load, stability and durability testing
ANSI/BIFMA X5.9-2019Storage units standard, applicable to mobile pedestal load and caster performance
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to desk panels and storage cabinets
GB/T 3327-2020Office desks and tables, applicable to work surface height, dimensional tolerance and stability
GB 18580-2017Formaldehyde emission limits for wood-based panels, applicable to E1-grade substrate compliance
GB/T 10357.1-2013Furniture mechanical performance test for tables, applicable to static load and stability verification
GB/T 5296.6-2004Furniture product labeling requirements, applicable to shipping and installation documentation
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to desk panels and storage cabinets;
2. GB/T 3327-2020:Office desks and tables, applicable to work surface height, dimensional tolerance and stability;
3. GB 18580-2017:Formaldehyde emission limits for wood-based panels, applicable to E1-grade substrate compliance;
4. GB/T 10357.1-2013:Furniture mechanical performance test for tables, applicable to static load and stability verification;
5. GB/T 5296.6-2004:Furniture product labeling requirements, applicable to shipping and installation documentation;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · WS2-LW-2400-CB-WF

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · WS2-LW-2400-CB-WF

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · WS2-LW-2400-CB-WF打开导出工具

页面快速操作

发布采购询价

产品描述

This 2-Person Side-by-Side Office Cubicle Workstation Desk with Mobile Pedestals delivers a streamlined, modern open-plan work solution with a cohesive light beech-tone finish that fits seamlessly into professional environments. Its side-by-side layout positions two independent work seats separated by a central low-profile privacy divider mounted to the desk surface; the divider sits at a height that cuts down on visual distraction between adjacent users without blocking overhead lighting, while full-height side modesty panels below the work surface block views of seated users’ legs from adjacent aisles. The unit is built with a robust frame of powder-coated square steel tubing, supporting 25mm thick worktops made from E1-grade particle board faced with durable melamine laminate. All worktop and pedestal edges are protected by 2mm thick matching PVC edge banding to resist impact damage, while partition and modesty panels are constructed from melamine-faced MDF. Each 1200mm wide individual work surface sits at standard desk height, with ample unobstructed knee clearance for user comfort, and is fitted with an integrated 60mm ABS plastic cable grommet to route cords cleanly from the work surface to the floor. Each user is provided a lockable mobile under-desk pedestal, fitted with four black nylon swivel casters for easy repositioning; each pedestal includes one top drawer and one lower door compartment, with zinc-alloy pull handles and steel hardware for consistent daily use. The frame base is fitted with adjustable leveling glides to compensate for uneven flooring, and the knock-down flat-pack design allows on-site assembly without specialized welding tools. This workstation is well suited for open-plan office staff areas for clerical, administrative or finance teams, compact small business shared workspaces, call center and data entry zones where supervisors require clear line of sight, temporary project team setups that support reconfiguration as needs shift, and high-traffic government or institutional office environments. For procurement planning, note that each set ships across multiple cartons, requires standard on-site assembly, and includes all required connection hardware with the delivery. The durable commercial-grade construction supports regular, long-term use in high-foot-traffic work settings.
