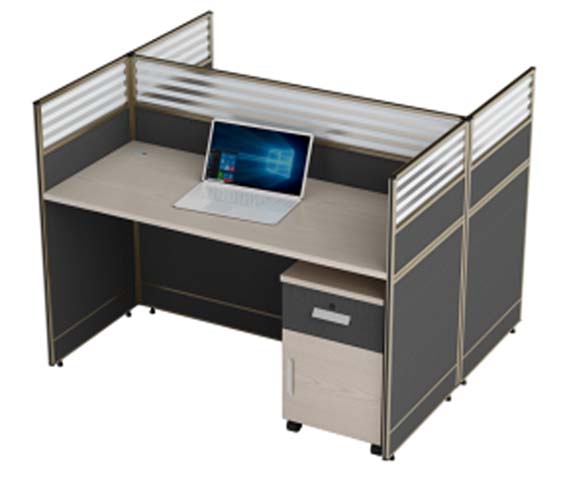

Single-Person Office Cubicle Workstation with 3-Sided Privacy Panels and Mobile Under-Desk Pedestal Specifications

CW-S1-1600-SF

代码:4FNDRDV1
获取供应商报价
2026-08-13 16:41人气: 65
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

CW-S1-1600-SF

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall workstation dimensions1600 x 700 x 1200 mm
Desktop working height750 mm
Desktop panel thickness25 mm
Seated knee clearance height under desktop650 mm
Knee well opening width1020 mm
Privacy partition panel thickness60 mm
Frosted acrylic upper partition height400 mm
Solid lower partition height800 mm
Mobile pedestal dimensions420 x 460 x 650 mm
Rear modesty panel height450 mm
Cable grommet diameter60 mm
Adjustable leveling foot height adjustment15 mm
Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Desktop uniform static load capacity91 kg
Mobile pedestal cabinet file storage weight capacity30 kg
Total workstation net weight85 kg
Surface abrasion resistance2000 cycles
Recommended user weight capacity136 kg
Product warranty period10 years
Available color options4
Reference Static Load150 kg depending on category
Moving-part Durability ReferenceAcceptance target 50000 cycles
Recommended Procurement WarrantyStructure 5 years; hardware 3 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Work surface25mm E1-grade melamine-faced particleboard with 2mm PVC edge banding
Partition support frame1.2mm thick extruded aluminum alloy with champagne metallic finish
Upper partition panels4mm thick frosted translucent acrylic with horizontal ribbed texture
Lower partition panels12mm thick fabric-laminate composite tackable board in dark grey finish
Support legs and underframe1.5mm thick square steel tube with powder-coated black finish
Modesty panel18mm thick melamine-faced MDF in matching dark grey finish
Mobile pedestal cabinet body18mm thick melamine-faced MFC with matching light wood and dark grey finishes
Mobile pedestal casters50mm diameter black nylon twin-wheel casters with brake on front casters
Leveling feetReinforced nylon adjustable feet with steel threaded stems
Hardware componentsZinc-plated steel cam locks, screws and drawer slides with 3-section full extension
Primary Connector SpecificationReference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

3-sided seated privacy partitionScreens surround work area to block side and front line of sight for focused work
Cable management grommetRound pass-through on left desktop section routes power and data cables below work surface
Mobile under-desk pedestal storageFeatures one upper lockable utility drawer and one lower door cabinet for office supplies
Adjustable floor levelingThreaded feet at each panel base adjust to compensate for uneven office floors
Modular expandabilityPanel frame design connects to adjacent workstations to build multi-seat cubicle clusters
Drawer and door lockingSingle key lock secures top drawer of mobile pedestal for personal item security
Tackable partition surfaceLower fabric-laminate panels accept push pins for posting notes and documents
Mobile pedestal mobilityFour casters allow pedestal to slide under desktop or pull out for access without lifting
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Largest shipping carton dimensions1620 x 720 x 80 mm
Mobile pedestal carton dimensions680 x 480 x 480 mm
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Packaging Volume0.8 m³/set
Reference Packaged Gross Weight120 kg/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open plan office layoutsCreates individual focused work zones without full permanent wall construction
Corporate employee workstationsSuitable for general administrative, clerical, and back-office staff seating
Small business office spacesSpace-efficient single-seat unit for start-ups and growing team work areas
Government and institutional officesDurable modular design meets high-traffic public sector workspace requirements
Call center environmentsPrivacy panels reduce acoustic and visual distraction for focused phone-based work
Temporary office fit-outsModular knock-down design allows quick installation and reconfiguration as needs change
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office work tables safety and strength requirements, applicable to desk structure
EN 527-2:2016Office work tables mechanical safety test methods, applicable for load validation
EN 1335-1:2020Office furniture workstation dimensions for ergonomic seated use
EN 1022:2018Domestic and contract furniture stability test requirements, applicable to workstation
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk products standard for safety, durability and structural performance
ANSI/BIFMA X5.6-2022Panel systems standard for office cubicle partition performance and stability
ANSI/BIFMA X5.3-2020Vertical files standard, applicable to mobile pedestal storage performance
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to desk and cabinet components
GB/T 3325-2017Test methods for metal furniture, applicable to steel frame and support components
GB 18580-2017Formaldehyde emission limits for wood-based panels, required for indoor office use
GB/T 35607-2017Green product evaluation standard for furniture, recommended for sustainable procurement
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to desk and cabinet components;
2. GB/T 3325-2017:Test methods for metal furniture, applicable to steel frame and support components;
3. GB 18580-2017:Formaldehyde emission limits for wood-based panels, required for indoor office use;
4. GB/T 35607-2017:Green product evaluation standard for furniture, recommended for sustainable procurement;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · CW-S1-1600-SF

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · CW-S1-1600-SF

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CW-S1-1600-SF打开导出工具

页面快速操作

发布采购询价

产品描述

This single-person office cubicle workstation balances focused work privacy with flexible, space-efficient design for modern work environments. Its structured layout features 3-sided privacy enclosures surrounding the seated work zone, with the frosted translucent acrylic upper partition sections allowing diffused light flow while blocking direct line of sight, and dark grey fabric-laminate lower partitions that support pinned notes and reference materials. The work surface is finished in a light wood tone, paired with a matching dark grey modesty panel and black steel underframe, presenting a streamlined, professional aesthetic that complements contemporary office interiors. The unit ships in two flat cartons for straightforward on-site assembly, with adjustable reinforced nylon leveling feet at each panel base to accommodate uneven floor surfaces, and an integrated round cable grommet on the left desktop section to route power and data cords neatly out of sight. The included wheeled mobile under-desk pedestal fits neatly within the open knee well, offering one lockable upper utility drawer and one lower storage cabinet to secure personal items and organize office supplies; front casters include locking brakes to hold the pedestal in place when positioned. The workstation is constructed with durable, commercial-grade materials: a 25mm E1-grade melamine-faced particleboard desktop with impact-resistant PVC edge banding, champagne-finish extruded aluminum partition frames, powder-coated square steel tube support legs, and abrasion-resistant surfaces suited for regular daily use. Its modular panel frame system connects seamlessly to identical adjacent units to build multi-seat cubicle clusters as team sizes grow. This workstation is well-suited for open-plan corporate offices, small business and start-up workspaces, government and institutional facilities, call center floors, and temporary office fit-outs, where it creates dedicated focused work zones without the cost and permanence of full wall construction. When planning procurement, teams can select from four available color options to match existing interior palettes, account for the two-carton shipping configuration per unit, and note the product’s 10-year warranty coverage for long-term workspace planning. The unit’s knock-down design supports quick reconfiguration to adapt to shifting workspace needs over time.
