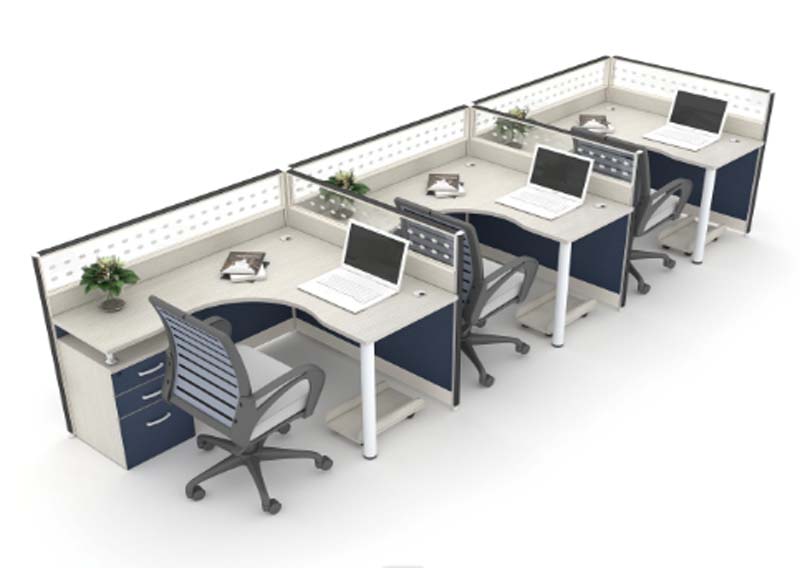

3-Person In-Line L-Shaped Office Cubicle Workstation Cluster Specifications

WS-L3-IN-LINE-NAVY-GRY

代码:5C7L17V1
获取供应商报价
2026-09-04 09:55人气: 11
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

WS-L3-IN-LINE-NAVY-GRY

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall cluster dimensions4200 x 1600 x 1200 mm
Single L-station footprint1400 x 1600 mm
Desktop working height750 mm
Total partition height from floor1200 mm
Partition panel thickness80 mm
Desktop panel thickness25 mm
Knee clearance height under desktop680 mm
Knee clearance width at workstation opening600 mm
Drawer pedestal dimensions (left-side)400 x 500 x 650 mm
Cable grommet diameter60 mm
Upper glass divider height300 mm
Lower solid modesty panel height700 mm
Support leg diameter60 mm
Footrest platform dimensions400 x 300 mm
Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Per-station static desktop load capacity150 kg
Total cluster net weight (without chairs)285 kg
Recommended maximum user weight per station136 kg
Desktop surface abrasion resistance2000 cycles
Partition frame static load rating50 kg per linear meter
Recommended number of users3
Warranty period (structural)5 years
Available standard color options60
Reference Static Load150 kg depending on category
Moving-part Durability ReferenceAcceptance target 50000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Work desktop surface25mm melamine-faced particleboard with 2mm PVC edge banding
Lower privacy partition panelsFabric-wrapped MDF core with acoustic damping backing
Upper partition dividers6mm frosted tempered glass set in aluminum extrusion frames
Structural support legsPowder-coated white cylindrical steel, 60mm diameter
Drawer pedestalsMelamine-faced particleboard cabinet body with chrome steel drawer slides and alloy pull handles
Partition connection hardwareDie-cast zinc alloy interlocking connectors, corrosion-resistant finish
Footrest platformsMelamine-coated particleboard platform with steel support brackets
Surface finish performanceStain-resistant, water-repellent, scratch-resistant melamine coating
Primary Connector SpecificationReference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Cable management system60mm dual desktop grommets per station with under-desk wire routing channels
Integrated drawer storage3 lockable drawers per station for stationery and document storage
Modular reconfigurationInterlocking aluminum frame supports layout adjustment for linear or clustered arrangements
Seated privacy separation1200mm total partition height blocks direct sightlines between adjacent seated users
Integrated under-desk footrestFixed low platform supports comfortable foot placement during extended seated work
Height compatibility750mm desktop height works with standard adjustable office task chairs with 520 mm seat height
Storage pedestal optionPedestals support both fixed and mobile caster-mounted configuration
Assembly connectionCam-lock and bolted assembly requires no permanent floor fixing for standard installation
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Packaging Volume0.8 m³/set
Reference Packaged Gross Weight120 kg/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open-plan corporate office staff zonesProvides defined individual workspaces without full-height wall enclosures
Call center and customer service operationsPartitioned layout reduces visual distraction for focused screen-based work
Small business open officesModular 3-station cluster fits standard office bay sizes for small team deployment
Co-working space dedicated fixed desksEach station provides private storage and cable management for permanent users
Administrative and back-office departmentsIntegrated drawer storage supports document and supply storage at each workspace
Training facility permanent workstationsRobust construction supports daily use in high-traffic work environments
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office worktables safety and strength requirements, applicable to desktop structural performance
EN 1335-1:2020Office workstation ergonomic dimensions, applicable to clearance and height specifications
EN 1022:2019Furniture seating stability reference for workstation-adjacent chair compatibility
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk products performance standard for static load and durability testing
ANSI/BIFMA G1-2013Ergonomic guidelines for office workstation dimensioning
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden office furniture, applicable to desktops and cabinet components
GB/T 3327-2018Performance standards for office desks and workstations, applicable to structural load testing
GB 18580-2017Formaldehyde emission limits for wood-based panels, applicable to desktop and partition core materials
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden office furniture, applicable to desktops and cabinet components;
2. GB/T 3327-2018:Performance standards for office desks and workstations, applicable to structural load testing;
3. GB 18580-2017:Formaldehyde emission limits for wood-based panels, applicable to desktop and partition core materials;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · WS-L3-IN-LINE-NAVY-GRY

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · WS-L3-IN-LINE-NAVY-GRY

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · WS-L3-IN-LINE-NAVY-GRY打开导出工具

页面快速操作

发布采购询价

产品描述

The 3-Person In-Line L-Shaped Office Cubicle Workstation Cluster is a purpose-built multi-seat workspace solution designed to balance open collaboration and individual focused work. Delivered as an unbranded unit under model WS-L3-IN-LINE-NAVY-GRY, this cluster features a streamlined linear layout of three connected L-shaped workstations, framed by fabric-covered lower privacy partitions topped with frosted glass upper dividers held in aluminum frames. The mid-height partition structure creates soft visual separation between stations, blocking direct sightlines between seated users without fully enclosing individual spaces, while the frosted glass upper segments maintain ambient light flow across the entire cluster. Powder-coated white cylindrical steel legs provide consistent structural support across all work surfaces, with a uniform 750mm desktop working height that pairs seamlessly with standard adjustable office task chairs, and 680mm of under-desk knee clearance to support comfortable seated posture. Each workstation is constructed with 25mm melamine-faced particleboard surfaces finished with 2mm PVC edge banding, coated in a stain-resistant, water-repellent, scratch-resistant melamine layer built to withstand regular daily use. Lower privacy partitions feature a fabric-wrapped MDF core with acoustic damping backing, while upper dividers use 6mm frosted tempered glass for durable, light-permeable separation. Integrated per-station features include three lockable drawers on chrome steel slides with alloy pull handles, suitable for securing stationery and documents, plus dual 60mm desktop cable grommets connected to under-desk wire routing channels to keep work surfaces free of cord clutter. A fixed under-desk footrest platform at each station supports comfortable foot placement during long work sessions, and interlocking zinc alloy connection hardware allows modular reconfiguration between linear and clustered layouts to adapt to evolving space needs. Drawer pedestals can be deployed as fixed units or fitted with casters for mobile use as required. This workstation cluster is well suited for a range of commercial spaces, including open-plan corporate office staff zones, call center and customer service floors, small business open offices, co-working fixed desk areas, administrative back-office departments, and permanent training facility workstations. Its modular three-station footprint fits standard office bay sizes for small team deployment, and the partitioned layout reduces visual distraction to support focused screen-based and document-based work, while robust construction stands up to high-traffic daily use. For procurement, teams should note the unit ships in two cartons per set, with a 40-minute reference assembly time per cluster. The structural frame carries a 5-year structural warranty, with specified static load ratings for desktops, partition frames, and user weight limits to align with intended use cases. Buyers should also account for the requirement for M6-M10 connectors with at least two fixing points at major joints during assembly, and plan layout adjustments in advance to leverage the unit’s modular reconfiguration capability for long-term space flexibility.
