PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	4200 × 2400 × 1200 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Total set static weight capacity (all work surfaces)	450 kg
Per drawer static load capacity (mobile pedestal)	25 kg
Total set weight (complete assembly)	210 kg
Recommended user capacity	3 people
Caster rolling load rating per unit	40 kg
Work surface scratch resistance rating	2000 cycles
Recommended minimum service life	8 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Work surface substrate	25mm thick high-density particleboard
Work surface finish	0.6mm thick matte melamine laminate
Partition support frame	1.2mm thick extruded aluminum alloy
Lower partition panel fill	18mm thick high-density fiberboard core
Upper partition screen fabric	260g/m² polyester woven fabric
Upper slatted screen insert	Perforated steel ventilation grille
Mobile pedestal cabinet body	0.8mm thick cold-rolled steel
Mobile pedestal drawer handles/locks	Matte black ABS plastic with steel core
Modesty panels (desk side supports)	18mm thick melamine-faced particleboard
Pedestal casters	30mm diameter black nylon swivel casters
Partition panel internal core	25mm thick paper honeycomb composite
Desk edge banding	2mm thick PVC impact-resistant edging

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Workstation configuration	3 connected curved L-shaped seats arranged in stepped parallel layout
Privacy partition function	1200mm high panels block cross-sightlines between adjacent seated users
Mobile pedestal mobility	4 swivel casters per pedestal allow under-desk positioning and pull-out access
Pedestal storage layout	1 top shallow stationery drawer and 1 lower hanging file drawer per pedestal
Upper screen function	Perforated upper section allows air circulation while maintaining overhead privacy
Cable management access	Pre-drilled 80mm diameter cable grommet at each corner work surface position
Partition modularity	Aluminum frame allows reconfiguration of panel segments to adjust layout
Pedestal lock function	Integrated key lock secures both drawers of each mobile pedestal for personal storage
Modesty panel function	Fixed lower side panels block leg visibility from adjacent and front walkways
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Open plan general office spaces	Provides semi-private work positions for teams of 3 with low visual distraction between seats
Small business admin departments	Compact footprint fits 3 staff workstations without extensive build-out works
Call center or customer service teams	Partition height reduces cross-talk while allowing supervisor visibility over screens
Startup team work areas	Modular design allows reconfiguration as team size or layout needs change
Recommended matching furniture	Mid-back ergonomic office chairs with 480 mm seat height to align with 750mm desk height
Standard commercial office flooring	Suitable for installation on low-pile carpet, vinyl or tile finished office floors
Indoor dry office environments only	Not rated for outdoor or high-humidity areas such as warehouse or wet utility spaces

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Office work surface dimensional requirement	EN 527:2011
Office furniture stability and strength test	EN 15372:2016
Office furniture fire performance standard	EN 13501:2018

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

Office desk load and performance standard	ANSI/BIFMA X2021
Mobile storage pedestal performance standard	ANSI/BIFMA X2020

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Office desk work surface height compliance	GB/T 3326
Office furniture mechanical stability requirement	GB/T 10357.1
Wood-based panel formaldehyde emission limit	GB 18580
Office partition panel fire safety requirement	GB 20286

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. Office desk work surface height compliance：GB/T 3326；
2. Office furniture mechanical stability requirement：GB/T 10357.1；
3. Wood-based panel formaldehyde emission limit：GB 18580；
4. Office partition panel fire safety requirement：GB 20286；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · OF-CUB-3P-LCRV-001

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · OF-CUB-3P-LCRV-001

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · OF-CUB-3P-LCRV-001打开导出工具

页面快速操作

发布采购询价

产品描述

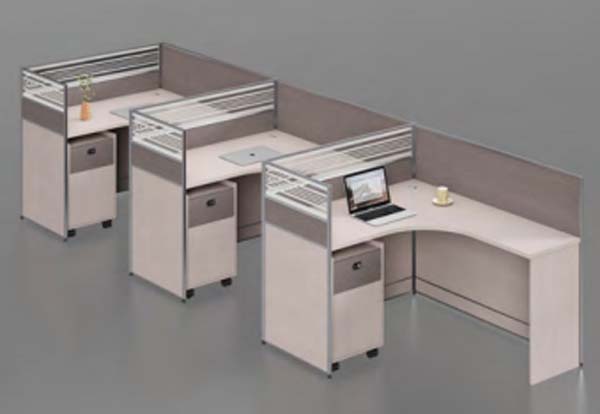

The 3-Person Curved L-Shaped Modular Office Cubicle Workstation Set is a functional, semi-private workspace solution designed for flexible commercial office use, delivered as an unbranded unit under model OF-CUB-3P-LCRV-001 in the modular office workstation cubicle category. Visually, the set features three connected curved L-shaped seats arranged in a stepped parallel layout, balanced by 1200mm high partition panels that create clean, defined personal work zones without fully enclosing users. The matte melamine work surfaces coordinate with soft fabric-wrapped upper screens and matte black hardware accents for a understated, professional appearance that complements standard commercial office interiors. Construction relies on durable, commercial-grade materials chosen for long-term daily use: work surfaces use 25mm high-density particleboard substrate topped with 0.6mm matte melamine laminate, for a total 50mm finished top thickness, supported by 80mm leg sections with 2mm metal wall construction and 18mm melamine-faced particleboard modesty panels. Partition panels combine an 18mm high-density fiberboard core for the lower section, wrapped in 260g/m² polyester woven fabric for the upper screen, with a 1.2mm thick extruded aluminum alloy frame that supports modular adjustments; a perforated steel ventilation grille at the upper screen section supports consistent air flow. Lockable mobile pedestals are built from 0.8mm cold-rolled steel, with matte black ABS plastic handles reinforced with steel cores, mounted on four swivel casters each. Practical functions are tailored to collaborative team needs: partitions block cross-sightlines between adjacent seated users while allowing supervisor visibility over screen tops, and reduce ambient cross-talk to cut down on visual and auditory distraction. Each seat includes a pre-drilled 80mm diameter cable grommet paired with a 120mm deep cable tray for tidy wire management, and 680mm high, 900mm wide knee clearance per main seat for comfortable seated positioning. Each mobile pedestal holds one shallow top stationery drawer and one lower hanging file drawer, with a 25kg per-drawer static load capacity, and glides smoothly for under-desk storage or pull-out access. The full work surface set supports 450kg of total static weight, with a work surface scratch resistance rating of 2000 cycles and a recommended minimum service life of 8 years. This workstation is well suited for open plan general office spaces, small business admin departments, call center or customer service teams, and startup work areas, as its compact footprint fits three staff positions without extensive build-out work, and its modular aluminum frame allows panel reconfiguration as team needs shift. It installs easily on low-pile carpet, vinyl, or tile commercial flooring, and pairs ideally with mid-back ergonomic office chairs with a 480mm seat height to align with the 750mm desk height. For procurement, note the set ships across multiple cartons, requires 40 minutes of assembly time per unit, and supports exactly three users per configuration, making it a scalable choice for phased office fit-outs. Each caster carries a 40kg rolling load rating, and the fully assembled set weighs 210kg, so teams should confirm floor load compatibility prior to installation, particularly for upper-level office spaces.

3-Person Curved L-Shaped Modular Office Cubicle Workstation Set Specifications
