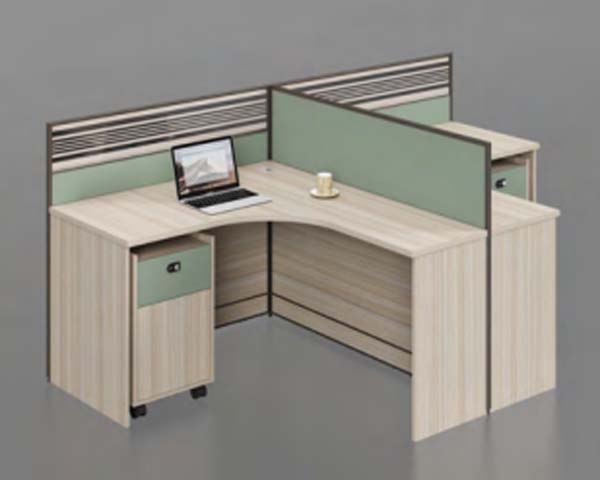

2-Person L-Shaped Partitioned Office Workstation with Mobile Pedestals Specifications

WS-L2-1400-MP

代码:6V22C1V1
获取供应商报价
2026-09-01 15:32人气: 17
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

WS-L2-1400-MP

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total workstation unit weight185 kg
Work surface static load capacity100 kg
Recommended user capacity2 people
Caster load rating per unit120 kg per pedestal
Partition panel impact resistance15 J
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
Top Abrasion ReferenceAcceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement WarrantyStructure 5 years; hardware 3 years; finish 2 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Work surface substrate18mm thick particleboard core
Desk side panel substrate18mm thick particleboard core
Lower partition panel facingFabric-wrapped MDF core
Upper partition grillePerforated steel grille
Partition edge trim1.2mm thick PVC edge banding
Mobile pedestal drawer front15mm thick MDF panel
Pedestal casters35mm diameter nylon swivel casters
Drawer lockZinc alloy cam lock
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
Primary Connector SpecificationReference M6-M8 with at least 2 fixing points per main support
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Desktop cable grommet access60mm diameter circular cable port
Mobile pedestal mobility4 swivel casters per cabinet
Lockable upper drawerKey-operated cam lock
Semi-private partition screening1100mm tall screen panels
Modular connection systemSteel joinery brackets between panels
Curved inner corner work surfaceRounded concave corner
Perforated upper partition ventilationOpen grid upper section
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Number of shipping packages per unit6 packages
Largest shipping carton dimension1450 x 750 x 120 mm
Total shipping gross weight per unit210 kg
Total shipping volume per unit0.58 CBM
Assembly time per 2-person unit120 minutes
40HQ container loading capacity48 units
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open-plan office deploymentDesigned for general open office areas
Small team workspace configurationSuitable for 2-person project teams
Call center and administrative useIdeal for administrative staff and call center agents
Startup and flexible office spacesCompatible with flexible workplace layouts
Hard-floor office environmentsSuitable for tile, vinyl and hardwood flooring
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Office furniture strength standardEN 527:2002+A1:2019
Office storage furniture standardEN 14073:2004
Formaldehyde emission standardEN 312:2010
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

Office desk performance standardANSI/BIFMA X2021
Mobile pedestal performance standardANSI/BIFMA X2019
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Desk surface dimension standardGB/T 3326
Particleboard performance standardGB/T 4897
Office furniture stability standardGB/T 10357.1
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. Desk surface dimension standard:GB/T 3326;
2. Particleboard performance standard:GB/T 4897;
3. Office furniture stability standard:GB/T 10357.1;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · WS-L2-1400-MP

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · WS-L2-1400-MP

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · WS-L2-1400-MP打开导出工具

页面快速操作

发布采购询价

产品描述

The 2-Person L-Shaped Partitioned Office Workstation with Mobile Pedestals, model WS-L1400-MP, is an unbranded modular office cubicle workstation designed to balance open collaboration and individual focus in shared work environments. Its L-shaped layout features a rounded concave inner corner work surface framed by 1100mm tall semi-private partition panels, which pair fabric-wrapped MDF lower sections with perforated steel upper grilles for natural ventilation and soft visual division. Work surfaces use an 18mm particleboard core finished with durable melamine facing, trimmed with 1.2mm PVC edge banding, and supported by 80mm steel hardware frames with 2mm metal wall thickness, delivering a 50mm finished top thickness with a 150kg uniformly distributed static load capacity. Each main seat offers 680mm high and 900mm wide effective knee clearance, while integrated 80mm diameter cable openings with 120mm deep cable trays and 60mm desktop grommets keep power and data cords organized and out of sight. The workstation includes two matching mobile pedestals, each fitted with four 35mm nylon swivel casters rated for 120kg per unit to glide smoothly across tile, vinyl, and hardwood hard flooring without scratching surfaces. Each pedestal’s upper drawer secures personal items and work materials with a key-operated zinc alloy cam lock, while drawer slides support 45kg per pair with a 50000-cycle service life for reliable daily use. The sage green partition panels offer 15J impact resistance to withstand regular workplace contact, and steel joinery brackets enable seamless modular connection for scalable layout adjustments. This workstation is optimized for open-plan offices, small 2-person project teams, call center floors, administrative departments, and flexible startup workspaces, supporting both focused individual tasks and quick, low-barrier collaboration between adjacent users. For procurement, note that each unit ships in 6 packages, with a total gross shipping weight of 210kg and total shipping volume of 0.58 CBM; the largest carton measures 1450 x 750 x 120 mm. Assembly requires 120 minutes per 2-person unit, and a 40HQ container can hold 48 units for bulk commercial orders. The 185kg finished unit weight delivers stable placement without permanent floor fixation, making it ideal for evolving office layouts that require periodic reconfiguration. No specialized tools are required beyond standard assembly hardware included with each shipment.
