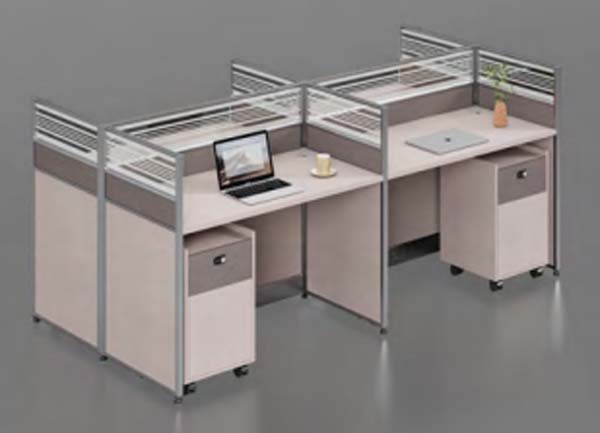

4-Person Cross-Shaped Modular Office Cubicle Workstation with Mobile Pedestals Specifications

CW-4P-MESH-1200

代码:6VNWMUV1
获取供应商报价
2026-09-02 10:56人气: 18
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

CW-4P-MESH-1200

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall footprint2830 x 2830 x 1200 mm
Per-seat work surface1200 x 600 x 750 mm
Partition screen thickness30 mm
Mobile pedestal dimensions420 x 460 x 650 mm
Under-desk knee clearance height680 mm
Upper mesh partition height500 mm
Lower solid modesty panel height700 mm
Work surface thickness25 mm
Edge banding thickness2.0 mm
Caster diameter for mobile pedestals50 mm
Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Per work surface static load capacity100 kg
Total workstation unit weight260 kg
Mobile pedestal drawer static load per drawer25 kg
Recommended maximum user weight per seat120 kg
Surface abrasion resistance2000 cycles
Warranty period5 years
Available color options60
Reference Static Load150 kg depending on category
Moving-part Durability ReferenceAcceptance target 50000 cycles
Recommended Procurement WarrantyStructure 5 years; hardware 3 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Work surface substrateE1-grade high-density particleboard
Work surface finishMelamine laminate, anti-scratch, anti-stain, heat-resistant
Work surface edge banding2.0mm same-color PVC edge sealing
Partition frameElectrostatic powder-coated silver aluminum alloy
Upper partition panelsVentilated perforated mesh panel
Lower partition/modesty panelsSolid melamine-faced particleboard privacy panel
Mobile pedestal constructionMelamine-faced board body with lockable drawer front
Pedestal castersBlack PP swivel casters, 2 lockable per unit
Structural hardwareZinc-plated steel connecting hardware
Primary Connector SpecificationReference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Partition layoutCross-shaped divider creates 4 equal independent private work bays
Cable managementIntegrated in-frame cable trough with separated power/data routing
Mobile pedestal mobility3-drawer pedestal rolls under desk, fits within knee bay recess
Pedestal drawer lockCentral locking system secures all drawers per pedestal
Assembly structureKnock-down modular connection allows reconfiguration of workstation layout
Desk surface grommetSingle cable access grommet per work surface for monitor/power cords
Partition privacy functionSolid lower panel blocks seated sightline, mesh upper panel allows air flow
Foot adjustmentAdjustable leveling feet on main frame compensate for uneven floors
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Packaging Volume0.8 m³/set
Reference Packaged Gross Weight120 kg/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open plan office areasProvides private individual work zones for 4 staff without full wall construction
Call center and administrative teamsBalances visual privacy and ventilation for seated long-duration work
Startup and small business officesModular layout delivers compact, cost-effective seating for team members
Government and corporate back-office spacesProcurement-grade construction meets commercial office durability requirements
Temporary project office setupsKnock-down design allows relocation and reconfiguration as team size changes
Hybrid work environmentsDefined personal workspaces support both in-office and scheduled desk use
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office worktables and desks, safety and strength requirements for work surfaces
EN 1335-1:2020Office furniture, office work chair clearance dimensions for under-desk fit
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

North America procurement and testing referenceRecommended references: ANSI/BIFMA X5.9
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2024General technical requirements for wooden office furniture, applicable for desk and panel structural performance
GB 18580-2017Formaldehyde emission limits for wood-based panels, applicable for E1-grade substrate verification
GB/T 15102-2017Specification for melamine-faced wood-based panels, applicable for desktop surface performance
GB 18584-2024Limit of harmful substances in wooden furniture, applicable for indoor air quality compliance
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2024:General technical requirements for wooden office furniture, applicable for desk and panel structural performance;
2. GB 18580-2017:Formaldehyde emission limits for wood-based panels, applicable for E1-grade substrate verification;
3. GB/T 15102-2017:Specification for melamine-faced wood-based panels, applicable for desktop surface performance;
4. GB 18584-2024:Limit of harmful substances in wooden furniture, applicable for indoor air quality compliance;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · CW-4P-MESH-1200

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · CW-4P-MESH-1200

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CW-4P-MESH-1200打开导出工具

页面快速操作

发布采购询价

产品描述

This cross-shaped 4-person modular office cubicle workstation is engineered to deliver balanced privacy, functionality, and flexible use for diverse work environments, with a symmetrical cross-shaped divider layout that creates four equally sized independent work bays for individual users. The workstation’s visual design balances open air flow and seated privacy: solid lower modesty panels block direct sightlines between seated users, while ventilated perforated mesh upper panels maintain air circulation across the unit, framed by a sleek silver powder-coated aluminum structure that complements a wide range of office interior palettes. Work surfaces are constructed from E1-grade high-density particleboard finished with scratch-resistant, stain-resistant, heat-resistant melamine laminate, sealed with 2.0mm same-color PVC edge banding for long-term durability. The partition structure combines the silver electrostatic powder-coated aluminum frame, mesh upper panels, and solid melamine-faced lower modesty panels, while included 3-drawer mobile pedestals feature melamine-faced board bodies, lockable drawer fronts, and black PP swivel casters with two lockable wheels per unit. All structural connections use zinc-plated steel hardware for stable long-term use. Practical functional features support seamless daily office use: integrated in-frame cable troughs route power and data lines separately to reduce clutter, each work surface includes a dedicated cable access grommet for monitor and device cords, and mobile pedestals roll fully into the under-desk knee bay recess, with a central locking system that secures all three drawers on each pedestal for personal storage security. The knock-down modular connection system supports layout reconfiguration to adapt to changing team needs. This workstation is well suited for open-plan office areas where four private work zones are needed without permanent wall construction, as well as call centers, administrative team floors, startup and small business offices, government and corporate back-office spaces, temporary project office setups, and hybrid work environments requiring defined personal workspaces. For procurement planning, note that the unit ships in two cartons per set, is delivered unassembled, and is covered by a 5-year warranty, with a wide selection of color options available to match existing interior design schemes. The durable, commercial-grade construction supports consistent long-term use in high-traffic work settings.
