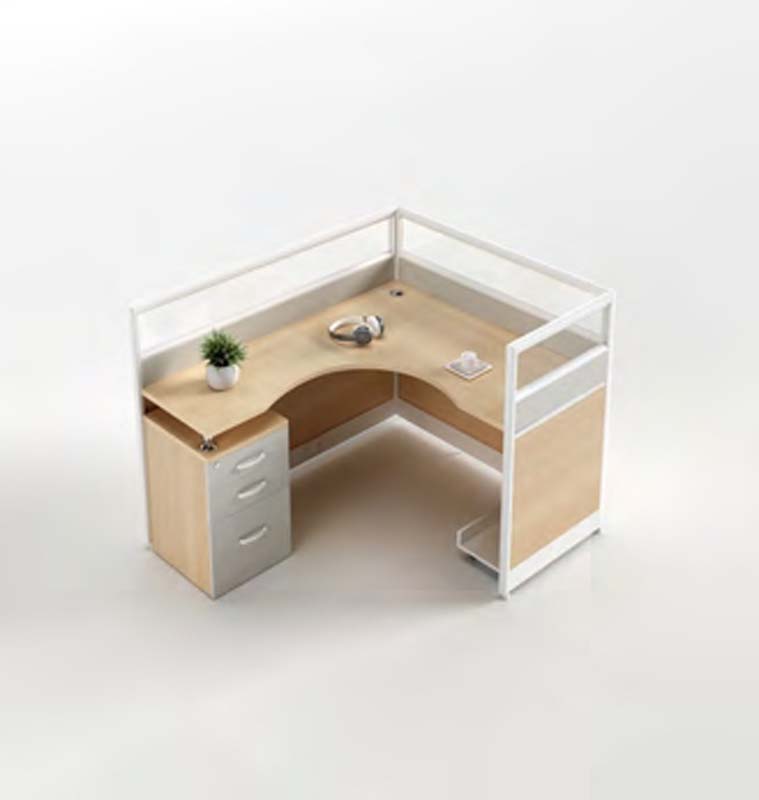

Single-Person L-Shaped Office Cubicle Workstation with 3-Drawer Pedestal and Partial Privacy Screens Specifications

L-CUB-1500-OAK-WHT

代码:7MT91FV1
获取供应商报价
2026-09-04 11:23人气: 18
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

L-CUB-1500-OAK-WHT

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall footprint (L x W x partition H)1500 x 1500 x 1200 mm
Desktop work surface height750 mm
Desktop panel thickness25 mm
PVC edge banding thickness2 mm
Attached 3-drawer pedestal dimensions400 x 550 x 725 mm
Privacy partition screen thickness40 mm
Upper frosted screen glass thickness5 mm
Knee clearance height under desktop700 mm
Knee opening curved width700 mm
Under-desk CPU shelf dimensions250 x 400 x 150 mm
Cable grommet diameter60 mm
Drawer internal usable height180 mm per drawer
Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Desktop uniform static load capacity80 kg
Drawer slide open/close cycle durability50000 cycles
Workstation total gross weight (assembled)75 kg
Recommended user weight capacity136 kg
Product warranty period5 years
Available finish color options3
Reference Static Load150 kg depending on category
Moving-part Durability ReferenceAcceptance target 50000 cycles
Recommended Procurement WarrantyStructure 5 years; hardware 3 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Desktop core and finishE1 grade melamine-faced particleboard, light oak woodgrain laminate
Pedestal cabinet bodyE1 grade melamine-faced particleboard, matching light oak finish
Partition frameWhite powder-coated steel / aluminum alloy
Upper partition panelSemi-transparent frosted acrylic / tempered glass
Lower partition panelE1 grade melamine panel matching desktop finish
Drawer slides3-section full-extension silent steel ball-bearing slides
Drawer lockCentral linked cam lock with 2 keys
Desk leveling feetNylon-tipped adjustable steel glides
CPU shelf construction16mm melamine panel with white steel support brackets
Primary Connector SpecificationReference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Curved central knee openingConcave front cutout provides unobstructed seated leg clearance for single user
Lockable 3-drawer pedestalCentral lock secures two small stationery drawers and one lower file drawer
Cable management system60mm desktop grommet routes power/data cables to under-desk raceway
Two-sided partial privacy partitions1200mm tall screens enclose rear and right work edges
Under-desk CPU shelfFixed right-side lower shelf holds standard mid-tower computer units
Adjustable leveling feet15mm vertical adjustment range at each base point
Modular connection capabilityPartition frames include interlocking hardware to connect adjacent workstations
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Packaging Volume0.8 m³/set
Reference Packaged Gross Weight120 kg/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open-plan office individual workstationsSemi-private layout reduces distraction for regular staff task work
Small business and startup office spacesCompact L-shape fits corner spaces with integrated storage to save floor area
Home office dedicated work zonesLight oak/white two-tone finish matches modern residential interior decor
Call center and administrative staff areasStandard ergonomic height and cable management support all-day computer use
Educational institution staff officesDurable commercial grade construction meets high-frequency institutional use requirements
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office worktables safety and strength requirements, applicable for desktop load and stability
EN 1335-1:2020Office furniture workstation dimensional ergonomic requirements for seated use
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk products performance standard for static load, durability and stability testing
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden office furniture, applicable for desktop and cabinet structural performance
GB 18580-2017Formaldehyde emission limit for wood-based panels, E1 grade requirement ≤0.124mg/m³ for indoor use
GB/T 4897.3-2003Particleboard specification for furniture use, applicable for structural panel core material
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden office furniture, applicable for desktop and cabinet structural performance;
2. GB 18580-2017:Formaldehyde emission limit for wood-based panels, E1 grade requirement ≤0.124mg/m³ for indoor use;
3. GB/T 4897.3-2003:Particleboard specification for furniture use, applicable for structural panel core material;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · L-CUB-1500-OAK-WHT

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · L-CUB-1500-OAK-WHT

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · L-CUB-1500-OAK-WHT打开导出工具

页面快速操作

发布采购询价

产品描述

This single-person L-shaped office cubicle workstation presents a streamlined, modern two-tone aesthetic pairing light oak woodgrain and crisp white finishes, built in a corner-optimized layout that balances open access and focused work separation. Partial privacy screens line the rear and right edges of the work surface, with semi-transparent frosted upper panels that preserve ambient light flow while blocking direct line of sight to reduce visual distraction, and solid lower panels matched to the desktop finish for a cohesive look. An integrated fixed 3-drawer pedestal sits within the workstation footprint, creating a unified, uncluttered visual profile suited to both professional and residential settings. The workstation is constructed with durable, commercial-grade materials: work surfaces and pedestal cabinetry use E1 grade melamine-faced particleboard, edged with protective PVC banding and supported by a sturdy white powder-coated steel frame. Privacy panels are held in mixed white powder-coated steel and aluminum alloy frames, with upper sections available in frosted semi-transparent acrylic or tempered glass, and drawer units fitted with 3-section full-extension silent steel ball-bearing slides and a central linked cam lock. Nylon-tipped adjustable steel glides at each base point compensate for uneven flooring, while a fixed under-desk CPU shelf is mounted with white steel support brackets for stable equipment placement. Practical design features support comfortable, productive daily use: a concave curved central knee cutout delivers unobstructed seated leg clearance aligned to standard ergonomic work height, while the lockable pedestal secures two small stationery drawers and one lower file drawer to keep personal items and work documents organized. A 60mm desktop grommet routes power and data cables to an under-desk raceway to eliminate surface cord clutter, and interlocking hardware built into partition frames allows adjacent units to be connected for scaled open-plan layouts. This model fits a wide range of spaces: it works well as individual semi-private workstations in open-plan offices, compact corner setups for small businesses and startups, dedicated work zones in modern home offices, ergonomic stations for call center and administrative staff, and durable work surfaces for educational institution staff offices. For procurement, note the unit ships in two cartons per set, with assembly time for a single unit; available finish options total 3, and the product is backed by a 5-year warranty. The L-shaped footprint is optimized for corner placement to maximize usable floor space, and its modular connection capability allows flexible expansion as team sizes grow.
