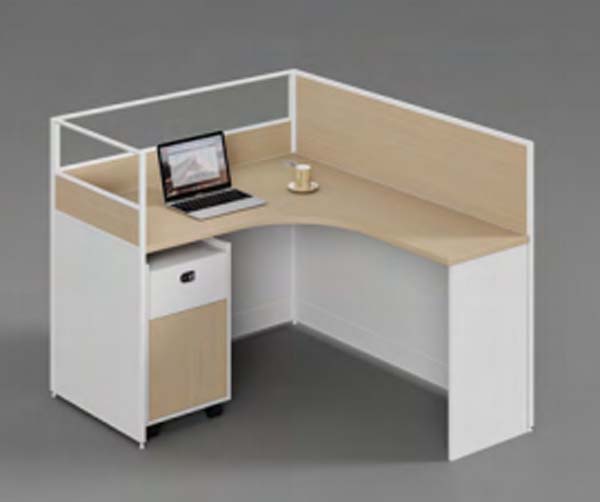

Single-Person L-Shaped Curved Front Office Cubicle Workstation with Mobile Pedestal Specifications

CUB-L1514-OAK-WHT

代码:9G8XY8V1
获取供应商报价
2026-09-01 13:06人气: 10
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

CUB-L1514-OAK-WHT

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall footprint1500 x 1400 x 1100 mm
Worksurface height750 mm
Primary L-arm worksurface segment1500 x 600 mm
Secondary L-arm worksurface segment1400 x 600 mm
Under-desk seated knee clearance height680 mm
Privacy partition height above worksurface350 mm
Worksurface thickness25 mm
Partition panel thickness25 mm
Partition metal frame wall thickness1.2 mm
Mobile pedestal dimensions400 x 500 x 600 mm
Curved knee cutout radius300 mm
Modesty panel height450 mm
Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Worksurface static load capacity91 kg
Unit net weight75 kg
Recommended user weight capacity136 kg
Melamine surface abrasion resistance2000 cycles
Commercial product warranty5 years
Available color options4
Reference Static Load150 kg depending on category
Moving-part Durability ReferenceAcceptance target 50000 cycles
Recommended Procurement WarrantyStructure 5 years; hardware 3 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Worksurface coreE1 grade MDF with melamine laminate facing
Worksurface edge banding2mm thick PVC edge trim
Partition frame1.2mm thick white powder-coated steel tubing
Upper privacy partition infillLight oak finish laminate panel
Lower modesty panel infillWhite matte laminate panel
Mobile pedestal body15mm thick melamine-faced particle board
Pedestal casters50mm diameter nylon swivel casters, 2 with brake
Pedestal lockCentral keyed cam lock
Assembly hardwareZinc-plated steel connector bolts and cam locks
Primary Connector SpecificationReference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Cable managementDesktop cable grommets and under-desk raceways
Mobile pedestal storage1 lockable top stationery drawer + 1 lower file cabinet compartment
Privacy screeningPartial-height perimeter partitions block direct line of sight between adjacent seats
Modular connectivityPre-drilled frame holes allow connection to adjacent cubicle units
Pedestal mobilityFour swivel casters allow pedestal to be repositioned under either desk segment
Knee accessCurved concave front cutout provides centered leg room for seated users
Surface resistanceMelamine finish resists common office stains and minor scuffs
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Packaging Volume0.8 m³/set
Reference Packaged Gross Weight120 kg/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open-plan office call centersProvides partial privacy for focused individual task work
Small business open work areasSingle-person compact footprint fits high-density office layouts
Startup co-working spacesModular design allows reconfiguration as team size changes
Administrative staff workstationsMobile pedestal provides lockable storage for documents and supplies
Temporary project office setupsKnock-down design allows fast deployment and repositioning
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office worktables: Safety and strength requirements
EN 12521:2015Furniture: Strength, durability and safety for non-domestic seating-adjacent tables
EN 717-1:2004Wood-based panel formaldehyde emission classification
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk products: Safety and performance standard for office worksurfaces
ANSI/BIFMA X5.9-2019Storage units: Performance requirements for mobile office pedestals
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden office furniture
GB 18580-2017Formaldehyde emission limits for wood-based panels
GB/T 3327-2016Stability, strength and durability requirements for office desks
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden office furniture;
2. GB 18580-2017:Formaldehyde emission limits for wood-based panels;
3. GB/T 3327-2016:Stability, strength and durability requirements for office desks;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · CUB-L1514-OAK-WHT

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · CUB-L1514-OAK-WHT

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CUB-L1514-OAK-WHT打开导出工具

页面快速操作

发布采购询价

产品描述

This single-person L-shaped curved front office cubicle workstation is a compact, modular corner desk solution paired with a mobile storage pedestal, featuring a coordinated two-tone light oak and white finish that complements modern work interiors. Its L-shaped layout connects two work surface segments at a right angle, with a smooth concave curved front cutout at the inner corner to deliver centered, comfortable leg room for seated users. Partial-height perimeter privacy partitions run along the outer edges of the work surface, with an upper light oak laminate infill and lower white matte modesty panel supported by a white powder-coated metal frame, creating gentle visual separation without closing off the workspace entirely. The desk’s work surfaces are built from E1 grade MDF core with a durable melamine laminate facing, finished with 2mm thick PVC edge trim to protect against daily impact. The partition frame uses thick steel tubing with a smooth powder-coated finish, while the included mobile pedestal is constructed from melamine-faced particle board, set on four nylon swivel casters (two with locking brakes) for flexible positioning. The pedestal features a central keyed cam lock to secure its top stationery drawer and lower file compartment, letting users stow supplies and sensitive documents safely. Practical built-in features include desktop cable grommets and under-desk raceways to organize power and data cords, a stain and scuff resistant melamine work surface, and pre-drilled frame holes that support seamless connection to adjacent matching cubicle units. The mobile pedestal can be positioned under either arm of the L-shaped desk to suit individual user preference. This workstation is well suited for high-density open-plan office call centers, small business open work areas, startup co-working spaces, administrative staff zones, and temporary project office setups, as it balances focused individual work privacy with layout flexibility. Its knock-down design supports fast deployment, and the modular structure allows easy reconfiguration as team needs evolve. For procurement, note the product is sold unbranded, comes packaged across two cartons per set, and offers four available color options. It includes a 5-year commercial warranty, and assembly requires roughly 40 minutes per unit. Teams planning connected cubicle rows can leverage the pre-configured frame connection points to build cohesive, scaled workstation layouts without custom modification.
