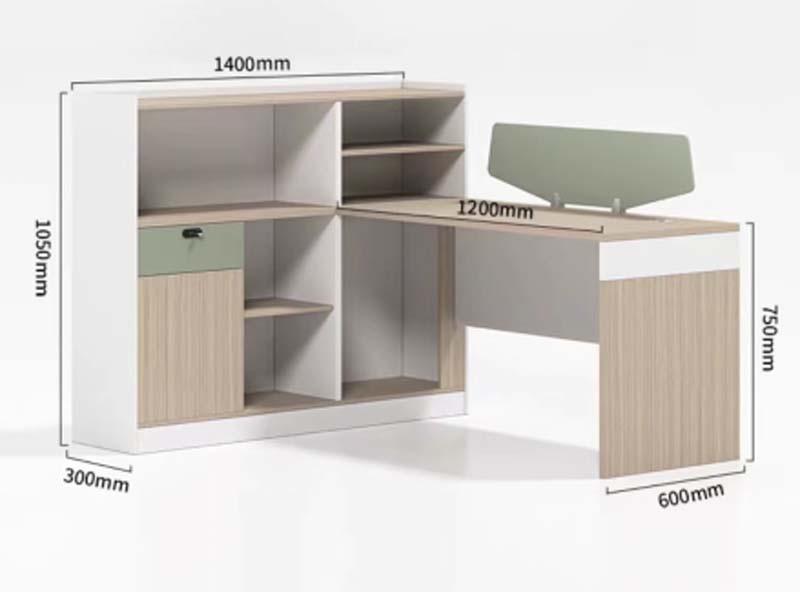

L-Shaped Office Corner Workstation with Attached Side Storage Hutch and Desk Privacy Screen Specifications

LWS-1206-ST1410

代码:9R3CA3V1
获取供应商报价
2026-09-03 17:29人气: 14
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

LWS-1206-ST1410

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall footprint dimensions1400 x 1200 x 1050 mm
Main work surface dimensions1200 x 600 x 750 mm
Attached storage hutch dimensions1400 x 300 x 1050 mm
Work surface panel thickness25 mm
Desk privacy screen height above work surface350 mm
Under-desk knee clearance height620 mm
Under-desk knee clearance width1000 mm
Open storage shelf compartment width350 mm
Edge banding thickness2 mm
Cable grommet diameter60 mm
Storage hutch shelf thickness18 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Uniform static load capacity of main work surface80 kg
Drawer slide operational cycle rating50000 cycles
Surface abrasion resistance rating2000 cycles
Product net weight reference82 kg
Recommended maximum user weight for seated use120 kg
Warranty period for commercial use5 years
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
Top Abrasion ReferenceAcceptance target ≥4,000 abrasion cycles or finish-system test
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Main work surface panel25mm E1-grade melamine-faced particleboard
Storage hutch structural panels18mm E1-grade melamine-faced particleboard
Exposed panel edges2mm thick PVC edge banding
Lockable drawer front panelSage green matte melamine finish over particleboard
Desk privacy screenSage green rigid MDF core panel with matte finish
Drawer slidesCold-rolled steel 3-section full-extension ball-bearing slides
Drawer lock mechanismZinc alloy keyed cam lock with two included keys
Storage shelf support pinsNickel-plated steel support pegs for adjustable shelving
Adjustable foot glidesNylon-base leveling glides at each base corner
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Corner L-shaped work layoutConnects 1200mm main work surface to 1400mm storage return
Lockable drawer storageOne lockable lower drawer secures personal office supplies
Adjustable open shelvingSix open storage compartments with repositionable shelves
Rear desk privacy screenMounted upright divider reduces visual distraction between adjacent workstations
Cable management access60mm cable grommet routes power and data cables off work surface
Leveling adjustmentNylon glides adjust 10mm to compensate for uneven floor surfaces
Wall anchoring provisionPre-drilled anchor points secure tall hutch to wall for tip-over safety
Knock-down assemblyFlat-pack construction allows on-site assembly with included hardware
Lockable drawer face dimensions400 x 125 mm
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open-plan office staff workstationsProvides individual work surface, privacy screen and storage for open office layouts
Small office and home office workspacesCompact L-shape fits corner positions while offering integrated storage
Administrative and clerical work positionsLockable drawer and open shelves support document and supply organization
Startup co-working shared spacesNeutral three-tone finish fits modern flexible work environment design
Educational institution faculty workstationsDurable panel construction and commercial hardware support regular daily use
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Office furniture desk safety and strengthEN 527:2002+A1:2019
Office storage furniture stabilityEN 14073:2004
Formaldehyde emission for wood panelsEN 13986:2004+A1:2015, E1 class
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

North America procurement and testing referenceRecommended references: ANSI/BIFMA X5.5
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Wood-based panel formaldehyde emissionGB 18580E1 grade ≤0.124mg/m³
Desk structural stabilityGB/T 3326
Surface coating adhesion performanceGB/T 4893.4
Hardware durability for drawersGB/T 10357.5
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. Wood-based panel formaldehyde emission:GB 18580E1 grade ≤0.124mg/m³;
2. Desk structural stability:GB/T 3326;
3. Surface coating adhesion performance:GB/T 4893.4;
4. Hardware durability for drawers:GB/T 10357.5;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · LWS-1206-ST1410

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · LWS-1206-ST1410

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · LWS-1206-ST1410打开导出工具

页面快速操作

发布采购询价

产品描述

The LWS-1206-ST1410 L-Shaped Office Corner Workstation presents a streamlined modular form designed to maximize corner space efficiency, with a balanced three-tone palette of light oak, matte white, and sage green that aligns with contemporary workspace aesthetics. The layout connects a dedicated main work surface to an attached side storage hutch that runs the full length of the desk’s return, while a desk-mounted privacy screen stands upright along the rear edge of the main work surface to define the individual work zone without enclosing it. The full unit delivers clean, linear silhouettes consistent with modern panel furniture design, creating a cohesive visual profile that fits seamlessly into both professional and residential interior schemes. Constructed for consistent daily use, the workstation uses E1-grade melamine-faced particleboard for all structural panels, with 25mm thick material for the main work surface and 18mm thick material for storage hutch components. All exposed panel edges are finished with 2mm thick PVC edge banding to resist impact damage and wear, while the privacy screen features a rigid MDF core with a matching matte sage green finish. Functional hardware includes cold-rolled steel full-extension ball-bearing drawer slides, a zinc alloy keyed cam lock for the lower drawer with two included keys, nickel-plated steel support pins for adjustable shelving, and nylon-base leveling glides positioned at each base corner. The L-shaped configuration creates a generous, accessible work zone with ample under-desk knee clearance, supporting comfortable extended seated use. The integrated storage system includes one lockable lower drawer for securing personal or sensitive supplies, plus six open storage compartments with repositionable shelves to organize documents, peripherals, and frequently accessed items. The rear privacy screen reduces visual distraction between adjacent work positions, while a built-in cable grommet routes power and data cords neatly off the work surface to reduce clutter. The leveling glides adjust to compensate for uneven floor surfaces, and pre-drilled wall anchoring points allow secure attachment of the tall hutch to prevent tip-over hazards. This workstation is well suited for a wide range of settings, including open-plan office staff zones, small private offices, home office corner installations, administrative and clerical workstations, startup co-working shared spaces, and educational institution faculty work areas. Its durable construction and commercial-grade hardware support regular daily use, backed by a 5-year commercial warranty. When planning procurement, note that each unit ships across multiple cartons, requires assembly, and includes adjustable shelf components to match individual storage needs. The uniform three-tone finish coordinates easily with a broad range of existing office furniture palettes, eliminating the need for custom color matching for most standard fit-outs.
