PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	1500 × 1400 × 1100 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Uniform static desktop load capacity	80 kg
Per-drawer maximum static load	15 kg
Drawer slide cycle life	50000 open/close cycles
Workstation total net weight (excluding chair)	80 kg
Surface abrasion resistance	2000 cycles
Recommended user weight capacity	120 kg
Warranty period for structural components	60 months
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Worktop core	E1 grade melamine-faced particleboard (MFC)
Worktop edge banding	2mm thick rounded PVC edge band
Privacy partition panel	Perforated fabric-covered board with aluminum frame
Drawer pedestal carcass	E1 grade melamine-faced engineered wood
Drawer handles	Curved white-finish steel pull handles
Support feet	Chrome-plated adjustable steel leveling feet
Drawer slides	3-section full-extension steel ball-bearing slides
Pedestal lock	Centralized cam lock securing all three drawers
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Corner work surface layout	L-shaped dual-segment desktop providing extended work area for single user
Cable management system	Two embedded desk grommets for routing power/data cables below work surface
Drawer storage system	Three stacked drawers for office supplies and document storage, operable via central lock
Privacy partition function	L-shaped rear/side partitions block cross-sight lines between adjacent workstations
Leveling adjustment	Adjustable steel feet compensate for uneven floor surfaces to keep worktop level
Pedestal structural support	Fixed 3-drawer pedestal acts as primary structural support for left worktop segment
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Open plan office spaces	Single cubicle units arranged in grids to create individual work zones for staff
Small business admin areas	Compact footprint fits small office layouts requiring dedicated work and storage space
Shared coworking spaces	Partitioned layout provides visual privacy for individual members at dedicated workstations
Government and institutional offices	Durable construction meets standard procurement requirements for long-term daily use
Call center work floors	Cable management and compact design support computer-based work for extended shifts

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Office furniture strength and stability	EN 527:2002+A1:2019
Office work surface dimensional tolerances	EN 527:2011

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Panel formaldehyde emission limit	GB 18580
Office desk dimensional stability	GB/T 3324
Furniture surface durability test	GB/T 4893.8

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. Panel formaldehyde emission limit：GB 18580；
2. Office desk dimensional stability：GB/T 3324；
3. Furniture surface durability test：GB/T 4893.8；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · LWS-CUB-1415-NW

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · LWS-CUB-1415-NW

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · LWS-CUB-1415-NW打开导出工具

页面快速操作

发布采购询价

产品描述

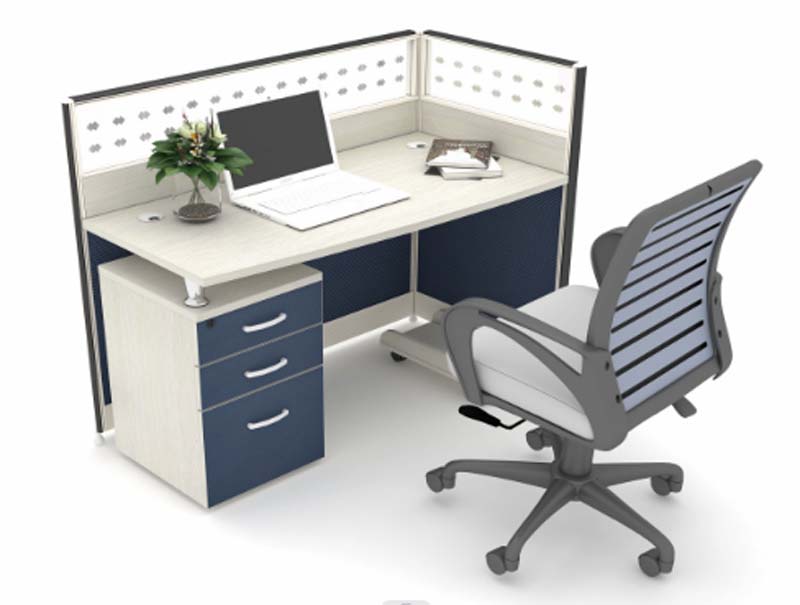

The Single-Person L-Shaped Cubicle Office Workstation with 3-Drawer Pedestal and Privacy Partitions (model LWS-CUB-1415-NW) is an unbranded, purpose-built cubicle desk designed for structured individual work in shared office environments. Its visual profile features a navy and light wood color scheme, anchored by an L-shaped dual-segment corner worktop that creates an extended, dedicated work area for a single user. Perforated fabric-covered privacy panels with aluminum frames wrap the rear and side edges of the workstation, blocking cross-sight lines between adjacent seats to deliver clear visual separation without a heavy, enclosed feel, while curved white-finish steel pull handles on the storage pedestal add a clean, functional design accent. The 3-drawer engineered wood pedestal is fixed in place to serve as the primary structural support for the left worktop segment, creating a balanced, compact layout that minimizes unnecessary floor space usage. The workstation is constructed for durable daily use, with an E1 grade melamine-faced particleboard worktop finished with 2mm thick rounded PVC edge banding; the finished top measures 50mm thick, with load-bearing sections utilizing a 40mm composite build-up and primary panels at 25mm thickness. The support structure uses 80mm main leg sections with 2mm metal walls, fitted with chrome-plated adjustable steel leveling feet to compensate for uneven floor surfaces and keep the worktop perfectly level. All connections use steel hardware, while the integrated 3-drawer pedestal runs on 3-section full-extension steel ball-bearing slides rated for 50,000 open/close cycles, secured by a centralized cam lock that fastens all three drawers simultaneously. The worktop supports a uniform static load of 80kg, each drawer holds a maximum static load of 15kg, the surface resists abrasion across 2000 cycles, the unit supports a recommended user weight of 120kg, and structural components carry a 60-month warranty. Practical functionality is tailored to modern office work: two embedded 80mm diameter cable grommets route power and data cords to an under-desk cable tray with 120mm depth, holding up to 10 cables with a 10kg tray load to keep work surfaces free of cord clutter. The three stacked drawers provide organized storage for office supplies and documents, while the L-shaped privacy partitions reduce visual distraction from neighboring work areas. The workstation is well suited for grid-arranged setups in open plan offices, compact small business admin areas, dedicated seats in shared coworking spaces, high-traffic government and institutional offices, and extended-shift computer-based work on call center floors. For procurement, note that each unit ships with a reference count of 2 cartons (main top packaged separately from the return and pedestal, totaling 1 cubic meter of packaging volume), requires 40 minutes of assembly per set, and has a packaged gross weight of 180kg per set, with a total net weight of 80kg excluding seating. Purchasers should account for on-site assembly labor and delivery handling requirements when planning rollouts across multiple work zones.

Single-Person L-Shaped Cubicle Office Workstation with 3-Drawer Pedestal and Privacy Partitions Specifications
