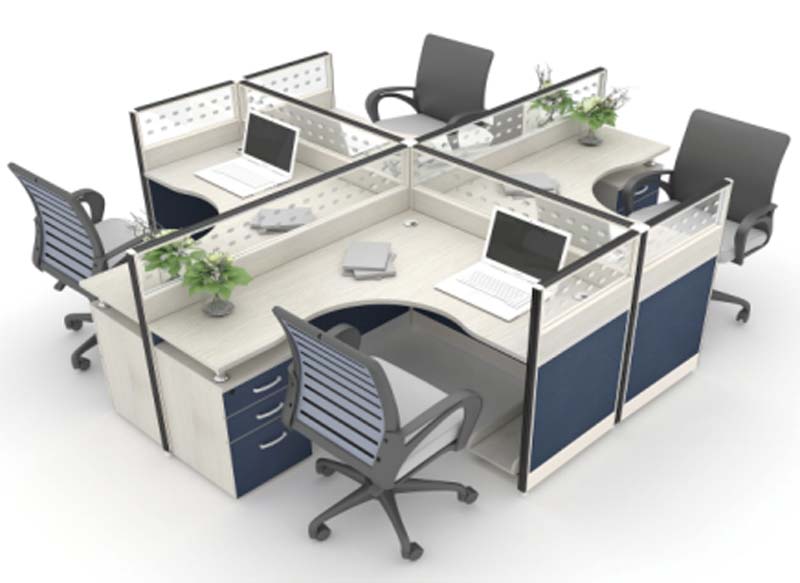

4-Person Cross-Shaped Modular Office Cubicle Workstation with Drawers Specifications

CUB-X4-1200BLW

代码:A5WR7LV1
获取供应商报价
2026-09-03 18:16人气: 15
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

CUB-X4-1200BLW

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall cluster dimensions2920 x 2920 x 1200 mm
Individual workstation work surface height760 mm
Per-station L-shaped work surface arm length1600 mm
Work surface depth at straight edge700 mm
Curved knee clearance opening width600 mm
Under-desk minimum knee clearance height650 mm
Privacy partition panel thickness40 mm
Partition solid lower panel height700 mm
Partition perforated upper panel height500 mm
Per-station drawer unit front width420 mm
Cable grommet diameter60 mm
Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Per-workstation static work surface load capacity120 kg
Total cluster net weight280 kg
Recommended maximum user weight per station110 kg
Work surface scratch resistance rating2000 cycles
Partition panel sound transmission class25 dB
Product warranty period5 years
Reference Static Load150 kg depending on category
Moving-part Durability ReferenceAcceptance target 50000 cycles
Recommended Procurement WarrantyStructure 5 years; hardware 3 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Work surface panels25mm thick E1-grade melamine-laminated particleboard
Lower solid partition panels18mm thick blue melamine laminated MDF
Upper perforated partition panelsPerforated steel sheet with powder-coated white finish
Partition framing1.2mm thick extruded aluminum profile with black powder coating
Drawer cabinet carcases16mm thick melamine laminated particleboard
Drawer slidesCold-rolled steel ball-bearing full-extension slides
Connector hardwareZinc-plated steel modular connecting brackets
Desk leveler feet30mm diameter nylon adjustable glides
Primary Connector SpecificationReference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Modular layout configurationCross-shaped 4 independent L-shaped workstations
Under-desk storage per stationFixed 3-drawer pedestal for office supplies
Cable management systemRecessed surface grommets with under-desk raceway
Seated privacy design1200mm total partition height
Curved knee cutoutRounded front work surface edge
Adjustable floor levelingThreaded glide feet at all base contact points
Surface accessory compatibilityPre-drilled partition mounting rails
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Packaging Volume0.8 m³/set
Reference Packaged Gross Weight120 kg/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open plan office work areasSuitable for 4 staff in general administrative, call center or design teams
Small to medium enterprise officesIdeal for startup and growing teams needing fast-deployable workstations
Staff training and team work zonesSupports adjacent seated positions with partial visual and acoustic separation
Government and institutional officesCompliant with standard office furniture dimensional requirements for public sector use
Recommended matching configurationPair with 4 mid-back mesh task chairs and cable management accessories
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Office work surface safety standardEN 527:2011
Office furniture mechanical durabilityEN 15372:2016
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

Office desk performance standardANSI/BIFMA X2021
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Office desk dimensional standardGB/T 3326
Particleboard furniture material standardGB/T 4897
Furniture environmental emission standardGB 18584
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. Office desk dimensional standard:GB/T 3326;
2. Particleboard furniture material standard:GB/T 4897;
3. Furniture environmental emission standard:GB 18584;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · CUB-X4-1200BLW

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · CUB-X4-1200BLW

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CUB-X4-1200BLW打开导出工具

页面快速操作

发布采购询价

产品描述

The 4-Person Cross-Shaped Modular Office Cubicle Workstation with Drawers, model CUB-X1200BLW, is an unbranded modern seating-focused workstation designed for shared office environments. It features a symmetrical cross layout that divides space into four independent L-shaped workstations, with 1200mm tall privacy partitions creating partial visual and acoustic separation between users. Each station’s work surface has a rounded front edge and curved knee cutout for comfortable access, with the partition structure combining solid lower blue melamine MDF panels and upper perforated white powder-coated steel panels framed in black powder-coated extruded aluminum. Construction uses durable, office-grade materials: 25mm thick E1-grade melamine-laminated particleboard for work surfaces, 16mm melamine-laminated particleboard for fixed drawer cabinet carcases, cold-rolled steel ball-bearing full-extension slides for smooth drawer operation, zinc-plated steel modular connecting brackets for structural stability, and 30mm diameter nylon adjustable glide feet to level the unit on uneven floors. All connector hardware uses M6-M10 fasteners with at least two fixing points at major joints. The complete cluster has an overall footprint of 2920 x 2920 x 1200 mm, with a 760mm work surface height, 650mm minimum under-desk knee clearance, 600mm curved knee opening width, 1600mm L-shaped work surface arm length, and 700mm work surface depth at the straight edge. Functional features support productive daily use: each station includes a fixed 3-drawer pedestal for office supply storage, recessed surface grommets paired with under-desk raceways for organized cable routing, and pre-drilled partition mounting rails compatible with common desk accessories. Each work surface supports a 120kg static load, with a recommended maximum user weight of 110kg per station. The 40mm thick partitions offer a 25dB sound transmission class rating, and the work surface carries a 2000-cycle scratch resistance rating. The workstation fits a range of spaces, including open-plan offices for administrative, call center, or design teams, small and medium enterprise and startup offices, collaborative staff training and team work zones, and government or institutional offices that meet standard public sector furniture dimensional requirements. It pairs optimally with four mid-back mesh task chairs and complementary cable management accessories. For procurement, note the unit ships as one set across two cartons, with a packaged gross weight of 120kg per set and 0.8m³ packaging volume. Assembly takes 40 minutes per set, and the product is covered by a 5-year warranty.
