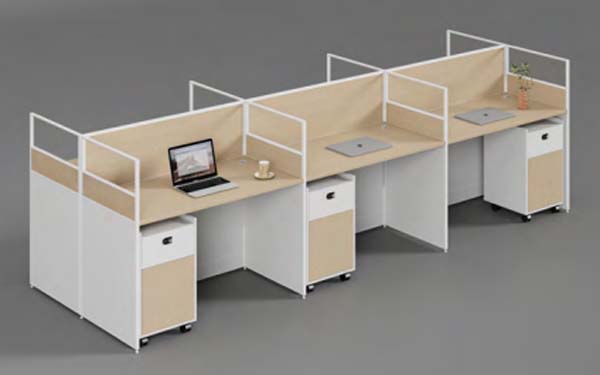

3-Person Modular Call Center Cubicle Workstation with Mobile Under-Desk Pedestals Specifications

CW-3P-BGWH-MP

代码:A8YL4UV1
获取供应商报价
2026-09-01 13:33人气: 20
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

CW-3P-BGWH-MP

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

overall dimensions4200 x 1400 x 1200 mm
per-seat desktop width1400 mm
per-seat desktop depth700 mm
worktop height from floor750 mm
privacy partition total height1200 mm
privacy partition panel thickness100 mm
desktop panel thickness25 mm
under-desk knee clearance height620 mm
under-desk knee clearance depth450 mm
mobile pedestal dimensions725 x 420 x 480 mm
pedestal caster diameter50 mm
upper metal rail height above worktop350 mm
Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

desktop static load capacity100 kg
overall workstation set weight240 kg
worktop surface abrasion resistance2000 cycles
maximum supported user weight per station120 kg
warranty period5 years
Reference Static Load150 kg depending on category
Moving-part Durability ReferenceAcceptance target 50000 cycles
Recommended Procurement WarrantyStructure 5 years; hardware 3 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

worktop surface25mm E0 grade melamine-faced particleboard
support frame1.2mm thick white powder-coated square steel tube
lower privacy panelFabric-wrapped MDF core panel in beige finish
lower modesty panel18mm melamine-faced MDF panel in white finish
upper partition railWhite powder-coated steel tube open frame
mobile pedestal body18mm melamine-faced MFC with beige and white finish
pedestal hardwareZinc-plated steel drawer slides with black plastic recessed handle
edge banding2mm thick PVC edge sealing on all exposed panel edges
caster wheelsBlack nylon swivel casters with metal mounting stems
Primary Connector SpecificationReference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

partition privacyPartial height fabric dividers with upper open rail reduce visual distraction while maintaining airflow
mobile storageLockable 1-drawer 1-door pedestals roll on 4 swivel casters for flexible under-desk positioning
cable managementIntegrated desk-level cable access grommets route power and data cords from work surface to floor
modular reconfigurationBolt-connected frame and panel system allows addition or removal of seats to adjust team size
work surface utilityScratch and stain resistant melamine top supports monitors, keyboards and daily office equipment
modesty protectionFull lower white panels block leg visibility between adjacent seated users
pedestal storage accessTop drawer holds small office supplies, lower compartment accommodates files and personal items
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

largest carton dimensions1450 x 750 x 120 mm
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Packaging Volume0.8 m³/set
Reference Packaged Gross Weight120 kg/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

call center open officesDedicated divided positions for high-density agent teams with low visual distraction
administrative staff zonesIndividual workspaces with integrated personal storage for general office staff
shared co-working spacesReconfigurable independent positions for flexible hot-desking assignments
back-office operation departmentsDurable work surfaces for daily data entry, documentation and computer work
small office startup spacesSpace-efficient 3-person cluster fits open plan offices without full wall construction
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Applicable to office worktable dimensions, strength and stability requirements
EN 1335-1:2020Applicable to ergonomic clearance dimensions for seated office work positions
EN 14073-2:2004Applicable to storage furniture strength and durability for office use
EN 717-1:2004Applicable to formaldehyde emission testing for wood-based panel materials
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Applicable to desk products structural performance and durability test standards
ANSI/BIFMA X5.6-2022Applicable to panel systems modular workstation performance requirements
ANSI/BIFMA X5.9-2019Applicable to storage units including mobile pedestal cabinets durability
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017Applicable to general technical requirements for wooden office furniture panels and finishes
GB/T 3325-2017Applicable to metal furniture structural strength and frame durability requirements
GB 18580-2017Applicable to formaldehyde emission limits for wood-based panel materials
GB/T 4897.3-2003Applicable to particleboard material performance requirements for furniture use
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:Applicable to general technical requirements for wooden office furniture panels and finishes;
2. GB/T 3325-2017:Applicable to metal furniture structural strength and frame durability requirements;
3. GB 18580-2017:Applicable to formaldehyde emission limits for wood-based panel materials;
4. GB/T 4897.3-2003:Applicable to particleboard material performance requirements for furniture use;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · CW-3P-BGWH-MP

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · CW-3P-BGWH-MP

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CW-3P-BGWH-MP打开导出工具

页面快速操作

发布采购询价

产品描述

The unbranded CW-3P-BGWH-MP 3-Person Modular Call Center Cubicle Workstation with Mobile Under-Desk Pedestals delivers a balanced, space-efficient partitioned work solution with a cohesive beige-white color scheme tailored to collaborative high-density office environments. Its layout arranges three equal work positions in a linear cluster, with partial-height beige fabric privacy dividers framed by an open white powder-coated upper rail that cuts visual distraction without restricting cross-workspace airflow. Full lower white modesty panels sit between adjacent seats to block leg visibility for seated users, creating defined individual work zones without the enclosed feel of full-height partitions. Each seat features a 1400 mm wide, 700 mm deep work surface set at a 750 mm worktop height, with 620 mm of under-desk knee clearance for comfortable seated use. The workstation is built for long-term commercial durability, starting with a 25 mm thick E0 grade melamine-faced particleboard worktop sealed with 2 mm PVC edge banding on all exposed edges to resist impact damage. The supporting structure uses 1.2 mm thick white powder-coated square steel tube framing, with privacy panels constructed from fabric-wrapped MDF cores and modesty panels made from 18 mm melamine-faced MDF. Each workstation ships with a matching mobile under-desk pedestal built from 18 mm melamine-faced MFC, fitted with zinc-plated steel drawer slides, black plastic recessed handles, and four black nylon swivel casters with metal mounting stems for smooth repositioning. The melamine worktop resists scratches and stains, supporting a 100 kg static load to hold monitors, keyboards, and routine office equipment, with a 120 kg maximum supported user weight per station and surface abrasion resistance rated for 2000 cycles. Integrated desk-level cable grommets route power and data cords neatly from the work surface to the floor to cut clutter. The lockable mobile pedestals include a top drawer for small office supplies and a lower compartment for files and personal items, rolling freely for flexible under-desk placement. The bolt-connected frame and panel system supports easy modular reconfiguration, allowing teams to add or remove seats to match shifting headcount needs. This workstation fits a range of commercial spaces, including high-density call center open offices requiring low-distraction divided positions for agent teams, administrative staff zones needing integrated personal storage, shared co-working spaces supporting flexible hot-desking, back-office operation departments handling daily data entry and documentation work, and small startup offices seeking space-efficient clustered seating without permanent wall construction. For procurement, note the unit comes in two cartons with 40 minutes of reference assembly time per set, carries a 5-year warranty, and has an overall set weight of 240 kg; plan layout space to accommodate the 4200 mm total length, 1400 mm total depth, and 1200 mm total partition height, and account for the modular design’s ability to scale with future team growth.
