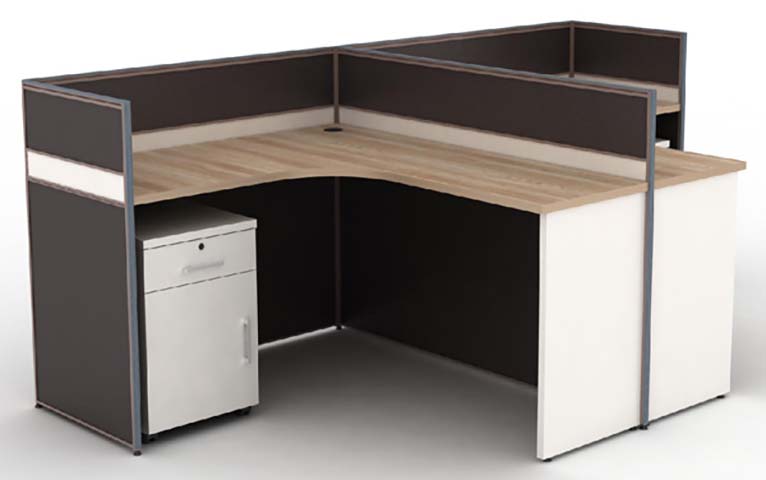

2-Person Back-to-Back L-Shaped Office Cubicle Workstation with Mobile Pedestal Specifications

CUB-L2-0AK2P

代码:ARPK5WV1
获取供应商报价
2026-08-21 15:22人气: 21
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

CUB-L2-0AK2P

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall unit footprint2880 x 1600 x 1200 mm
Work surface height from floor750 mm
Per-seat L-shaped work surface size1500 x 1500 mm
Work surface thickness25 mm
Privacy partition panel thickness60 mm
Under-desk knee clearance height650 mm
Knee well width at curved corner cutout800 mm
Mobile pedestal dimensions603 x 505 x 400 mm
Cable grommet diameter80 mm
Partition panel aluminum trim thickness1.2 mm
Leveling foot adjustment range15 mm
Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Work surface static load capacity120 kg
Work surface abrasion resistance2000 cycles
Partition tackable fabric holding strength0.5 kg per pin
Total unit net weight185 kg
Recommended user weight per seat136 kg
Product warranty period5 years
Reference Static Load150 kg depending on category
Moving-part Durability ReferenceAcceptance target 50000 cycles
Recommended Procurement WarrantyStructure 5 years; hardware 3 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Work surfaceE1-grade melamine-faced chipboard with 2mm PVC edge banding
Privacy panel coreHigh-density particleboard core with fabric overlay
Partition framingPowder-coated aluminum extrusion with grey finish
Mobile pedestal bodyWhite melamine-faced particleboard with steel hardware
Drawer slidesSteel ball-bearing full-extension slides
Cable grommetInjection-molded black ABS plastic
Base leveling feetNylon-padded steel adjustable feet
Pedestal castersHard nylon swivel casters, 2 with brake function
Panel surface fabricTackable polyester fabric in dark charcoal finish
Storage cabinet panelsWhite melamine-faced particleboard with matching PVC edge banding
Primary Connector SpecificationReference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Privacy partition layoutThree-sided 1200mm high dividers separating two back-to-back L-shaped workstations
Cable managementRound surface grommet routes power/data cables from desktop to under-desk raceway
Mobile pedestal storageLockable 1-box + 1-file drawer configuration fits fully under work surface
Floor levelingAdjustable feet at each panel base compensate for uneven floor surfaces up to 15mm
Drawer operationFull-extension steel slides allow 100% drawer access for filing supplies
Modular expansionAluminum framing system supports connection to additional adjacent workstation modules
Pedestal mobilityFour swivel casters allow pedestal repositioning under desk or to adjacent work areas
Locking mechanismCentral key lock secures both pedestal drawers to secure personal work items
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Assembly noteRequires 2 trained installers with basic hand tools for setup
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Packaging Volume0.8 m³/set
Reference Packaged Gross Weight120 kg/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open plan office spacesCreates divided private work zones for teams in open floor plan layouts
Call center and admin departmentsProvides separated work surfaces with storage for high-density task-based work
Corporate staff work areasMatches professional light oak/white/charcoal finish for standard office interiors
Small business office setups2-person configuration fits small floor plans without requiring full custom cubicle runs
Shared co-working spacesLockable mobile pedestal provides secure personal storage for rotating users
Recommanded seatingPairs with standard mid-back office task chairs with 600mm width base
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office worktables safety and strength requirements, applicable to work surface performance
EN 1335-1:2020Office furniture reference for ergonomic desk clearance dimensions
EN 1022:2018Furniture seating stability reference for adjacent workspace clearance planning
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk products standard for vertical load and durability testing
ANSI/BIFMA X5.9-2019Storage units standard applicable to mobile pedestal load and cycle testing
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to desk and cabinet components
GB/T 35607-2017Green product assessment standard for furniture, applicable for low-emission material verification
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to desk and cabinet components;
2. GB/T 35607-2017:Green product assessment standard for furniture, applicable for low-emission material verification;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · CUB-L2-0AK2P

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · CUB-L2-0AK2P

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CUB-L2-0AK2P打开导出工具

页面快速操作

发布采购询价

产品描述

The 2-Person Back-to-Back L-Shaped Office Cubicle Workstation with Mobile Pedestal, model CUB-L2AK2P, is an unbranded modular office cubicle workstation designed to deliver structured, private work zones in shared office environments. Its visual layout features two opposing L-shaped work positions, separated by three-sided 1200mm tall privacy dividers in dark charcoal tackable polyester fabric, framed by powder-coated grey aluminum extrusions. The worktop carries a light oak-compatible finish coordinated with white laminate storage and neutral framing, aligning with standard professional office interior palettes. Each per-seat L-shaped work surface measures 1500 x 1500 mm, with a 25mm thick E1-grade melamine-faced chipboard construction edged with 2mm PVC banding, set at a 750mm work surface height from the floor. The 60mm thick privacy panels have a high-density particleboard core, while structural connections use steel hardware, base supports feature nylon-padded steel adjustable leveling feet, and the integrated mobile pedestal uses white melamine-faced particleboard with steel ball-bearing full-extension drawer slides, hard nylon swivel casters (two with brake function), and black injection-molded ABS cable grommets. The work surface supports a 120kg static load, resists abrasion across 2000 cycles, and the partition fabric holds 0.5kg per pin, with a 5-year product warranty. Functionally, the system provides 650mm under-desk knee clearance and 800mm width at the curved corner knee well to pair with standard 600mm base mid-back task chairs. Round desktop cable grommets route power and data cords to under-desk raceways, while adjustable base feet compensate for uneven floors up to 15mm. The included lockable mobile pedestal, sized to fit fully under the work surface, offers one box drawer and one file drawer with full 100% extension access, with four casters enabling easy repositioning between work areas. The aluminum framing supports connection to additional matching modules for expanded layouts. This workstation suits open plan offices, call center and admin departments, corporate staff areas, small business offices, and shared co-working spaces, creating divided private zones even in high-density layouts while providing secure lockable storage for rotating users. For procurement, note that each unit ships in 2 cartons with 0.8m³ packaging volume and 120kg packaged gross weight; setup requires 2 trained installers with basic hand tools, with 40 minutes assembly time per set, and a total net weight of 185kg for the fully assembled unit.
