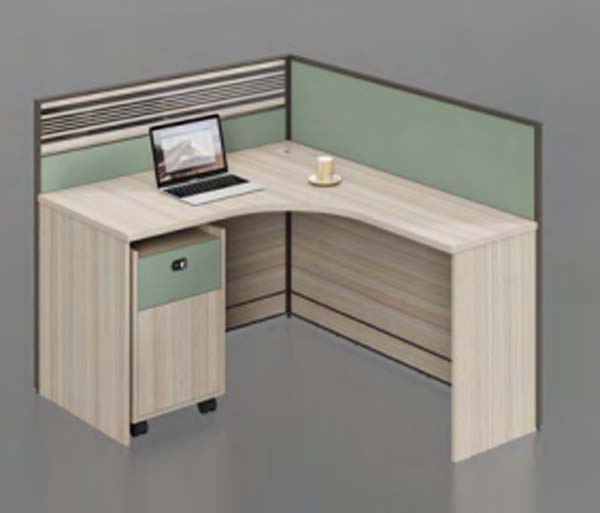

商品供应商Single-Person L-Shaped Curved Corner Cubicle Workstation Desk with Lockable Mobile Pedestal，High-density fiberboard, density 720 kg/m³
可联系供应商获取生产周期与报价。
PRODUCT MODULE 01 / 06
基础物理尺寸
mm / 英寸自动双单位换算 · 工程采购基础规格
数据来源：工厂资料结构化字段，最终以实测值为准
| 产品外部尺寸（宽 × 深 × 高） | 1600 × 1600 × 1200 mm | |
|---|---|---|
| Overall footprint | 1600 x 1600 x 1200 mm | |
| Desktop working height | 750 mm | |
| Desktop thickness | 25 mm | |
| Desktop segment depth | 700 mm | |
| Partition screen height | 1200 mm | |
| Partition frame profile thickness | 40 mm | |
| Knee clearance height under desktop | 670 mm | |
| Knee clearance width at corner opening | 800 mm | |
| Mobile pedestal dimensions | 420 x 460 x 650 mm | |
| Cable grommet diameter | 60 mm | |
| Modesty panel height | 600 mm | |
| Caster wheel diameter for pedestal | 50 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
重量、承重与性能参数
净重 / 最大承重 / 适用人数 / 耐久性能
数据来源：产品性能数据，采购前请核对具体测试口径
| Total workstation static load capacity | 150 kg | |
|---|---|---|
| Desktop surface abrasion resistance | 2000 cycles | |
| net product weight | 68 kg | |
| Recommended user weight capacity | 120 kg | |
| Drawer slide cycle durability | 50000 cycles | |
| Formaldehyde emission limit | 0.05 mg/m³ | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
材质与结构参数
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
数据来源：以工厂材质清单与验货报告为准
| Desktop substrate | High-density fiberboard, density 720 kg/m³ | |
|---|---|---|
| Desktop surface finish | Wear-resistant melamine laminate | |
| Desktop edge banding | 2 mm thick PVC edge banding | |
| Partition screen surface | Polyester fiber fabric upholstery | |
| Partition frame material | 1.8 mm thick aluminum alloy profile | |
| Desk support panels | 18 mm thick melamine-faced particleboard | |
| Mobile pedestal construction | 16 mm thick E1 grade wood-based panel | |
| Pedestal hardware | Cold-rolled steel lock and 3-section slides | |
| Support leg feet | Anti-slip nylon adjustable feet | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
功能与调节参数
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
数据来源：功能配置参数，以供应商正式规格为准
| Cable management | 60mm corner desktop grommet with partition base trunking | |
|---|---|---|
| Mobile storage pedestal | 3-drawer lockable unit on swivel casters | |
| Partition privacy screen | 1200mm high fabric panels on two sides | |
| Drawer operation | Soft-close full-extension steel slides | |
| Central locking system | One key locks all three pedestal drawers | |
| Modular connection design | Pre-drilled panel connection points | |
| Floor leveling adjustment | Adjustable feet on desk base panels | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
包装与物流参数
经核验的外箱 / 毛重 / 组装 / 装柜数据
数据来源：外贸报价与装柜测算参考
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
应用场景与使用方式
推荐空间 / 目标用户 / 使用方式
数据来源：依据产品结构与品类整理的推荐应用场景
| Open-plan office staff work areas | Single cubicle station for dedicated individual focused work | |
|---|---|---|
| Corporate administrative department zones | Standardized configuration for clerical and data entry roles | |
| Startup open office layouts | Modular design allows easy reconfiguration as team size changes | |
| Government and public institution offices | Durable construction meets high-volume public sector use requirements | |
| Medical and educational institution staff areas | Easy-clean laminate surfaces meet regular hygiene maintenance needs | |
| Small business office fit-outs | All-in-one workstation with storage reduces additional furniture purchase needs |
STANDARD S1
欧盟市场准入要求 * EN 标准
欧洲市场准入与化学品要求
| EN 527-1:2011 | Office worktables: safety and strength requirements, applicable to desk structure performance | |
|---|---|---|
| EN 1335-1:2020 | Office furniture: office work chair dimensions, referenced for matched knee clearance coordination | |
| EN 1022:2018 | Furniture: seating stability, referenced for mobile pedestal stability when extended | |
| EN 13986:2004 | Wood-based panels for construction, applicable to panel structural performance classification |
STANDARD S2
北美市场采购验货参考 * ANSI/BIFMA 标准
美国及加拿大家具标准
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.9 |
|---|
STANDARD S3
适用于中国市场项目的标准 * GB 标准
适用于中国市场项目的标准
| GB 18584-2017 | Indoor decoration material: formaldehyde emission limit for wood furniture, applicable to panel components | |
|---|---|---|
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to dimensional and structural quality | |
| GB 20286-2006 | Flame retardant requirements for public place furniture, applicable to partition fabric | |
| GB/T 35607-2017 | Green product assessment standard for furniture, applicable to environmental material selection |
招标文件标准化描述文本
本产品须满足以下技术参数要求： 1. GB 18584-2017：Indoor decoration material: formaldehyde emission limit for wood furniture, applicable to panel components； 2. GB/T 3324-2017：General technical requirements for wooden furniture, applicable to dimensional and structural quality； 3. GB 20286-2006：Flame retardant requirements for public place furniture, applicable to partition fabric； 4. GB/T 35607-2017：Green product assessment standard for furniture, applicable to environmental material selection； 最终交付参数、检测报告和验收标准以双方采购合同为准。
