mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall footprint | 3200 x 2800 x 1200 mm | |
|---|---|---|
| Work surface height | 750 mm | |
| Single workstation desktop width | 1400 mm | |
| Single workstation desktop depth | 700 mm | |
| Privacy partition total height | 1100 mm | |
| Work surface thickness | 25 mm | |
| Privacy partition panel thickness | 40 mm | |
| Knee clearance height under desk | 680 mm | |
| Knee clearance width at concave cutout | 700 mm | |
| Fixed storage pedestal size per station | 400 x 500 x 650 mm | |
| Metal support frame wall thickness | 1.5 mm | |
| PVC edge banding thickness | 2 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
净重 / 最大承重 / 适用人数 / 耐久性能
| Total unit net weight | 260 kg | |
|---|---|---|
| Work surface uniform static load capacity | 100 kg | |
| Recommended user capacity | 4 people | |
| Surface scratch resistance rating | 2000 cycles | |
| Board formaldehyde emission grade | E1 | |
| Product warranty period | 3 years | |
| Available finish color options | 60 | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Work surface panel | 25mm E1 grade particle board with melamine laminate finish | |
|---|---|---|
| Desk edge trim | 2mm thick PVC edge banding applied with hot melt adhesive | |
| Structural support frame | 1.5mm thick cold-rolled steel with powder-coated dark gray finish | |
| Upper privacy divider section | Frosted semi-translucent acrylic slat panel with metallic trim | |
| Lower privacy divider section | 18mm thick melamine-faced particle board dark gray panel | |
| Storage cabinet and drawer fronts | Two-tone melamine-faced particle board matching worktop and frame finish | |
| Drawer hardware | Three-section full-extension silent ball-bearing steel slides | |
| Cabinet door hardware | Concealed steel hinges with integrated keyed cabinet lock | |
| Leveling feet | Adjustable threaded nylon and steel glides | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

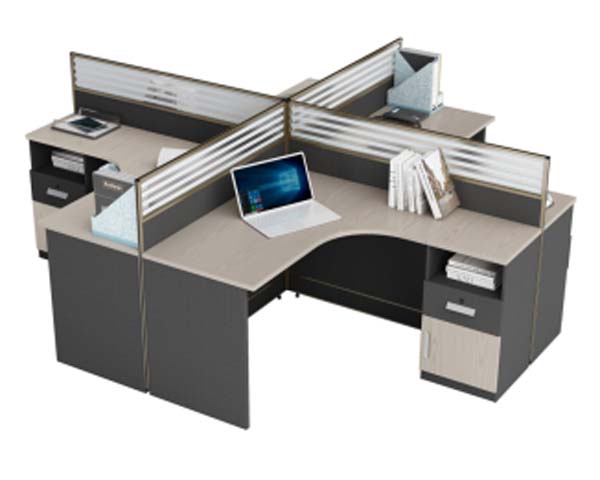

| Cross partition layout | Central X-shaped dividers separate four opposite-facing dedicated work positions | |
|---|---|---|
| Curved knee cutout | Concave front edge at each station creates unobstructed seated leg access | |
| Cable management routing | Built-in cable channels run along divider frames and desk undersides | |
| Adjustable floor leveling | Threaded glides at each frame leg adjust up to 15mm | |
| Keyed locking storage | Matching keys lock both drawer and cabinet door per workstation | |
| Modular connection design | Pre-drilled frame joints allow on-site assembly and reconfiguration | |
| Semi-transparent upper screen | Frosted upper slats block direct line of sight while allowing light transmission | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
推荐空间 / 目标用户 / 使用方式
| Open-plan office staff areas | Provides separated dedicated workspaces for teams in open office layouts | |
|---|---|---|
| Corporate back-office departments | Suitable for finance, administration and operations teams requiring document storage | |
| Call center and shared workspaces | Accommodates four shift or permanent staff in a compact footprint | |
| Startup and small business offices | Modular design fits flexible office layouts without permanent construction | |
| Government and institutional offices | Meets standard durability and emission requirements for public sector procurement | |
| Branch office work zones | Consistent two-tone finish matches standard commercial office design schemes |
欧洲市场准入与化学品要求
| EN 527-1:2011 | Office work tables safety and strength requirements, applicable to worktop load and structural stability | |
|---|---|---|
| EN 527-2:2016 | Office work tables dimensional safety requirements, applicable to work height and clearance dimensions | |
| EN 13986:2004 | Wood-based panels for structural use, applicable to particle board component performance |
美国及加拿大家具标准
| ANSI/BIFMA X5.5-2021 | Desk products standard, applicable to work surface load, durability and stability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard, applicable to drawer and cabinet load and cycle performance |
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel work surfaces and storage components | |
|---|---|---|
| GB/T 3327-2017 | Technical requirements for office desks and tables, applicable to work surface dimensions and load performance | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to all composite board components | |
| GB/T 28202-2011 | Hardware requirements for furniture, applicable to slides, hinges and locking mechanisms |
本产品须满足以下技术参数要求： 1. GB/T 3324-2017：General technical requirements for wooden furniture, applicable to panel work surfaces and storage components； 2. GB/T 3327-2017：Technical requirements for office desks and tables, applicable to work surface dimensions and load performance； 3. GB 18580-2017：Formaldehyde emission limits for wood-based panels, applicable to all composite board components； 4. GB/T 28202-2011：Hardware requirements for furniture, applicable to slides, hinges and locking mechanisms； 最终交付参数、检测报告和验收标准以双方采购合同为准。
