2-Person Curved Corner Modular Office Cubicle Workstation with Privacy Partitions and Mobile Lockable Storage Pedestal Specifications

CWS-2P-CRV-MP-LM/W

代码:BBTZYAV1
获取供应商报价
2026-09-01 17:00人气: 22
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

CWS-2P-CRV-MP-LM/W

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall footprint2400 x 1800 x 1200 mm
Work surface height (floor to desktop)750 mm
Work surface thickness30 mm
Individual work surface depth700 mm
Inner curved corner knee clearance width900 mm
Knee clearance height under work surface680 mm
Privacy partition height above work surface450 mm
Privacy partition panel thickness32 mm
Mobile pedestal dimensions400 x 500 x 650 mm
Cable grommet diameter60 mm
Partition frame tube thickness1.2 mm
Side support panel thickness25 mm
Caster diameter for mobile pedestal50 mm
Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Static distributed load per work surface150 kg
Mobile pedestal static drawer load30 kg per drawer
Total unit weight (fully assembled)185 kg
Recommended seating capacity2 users
Melamine surface abrasion resistance2000 cycles
Pedestal caster rolling durability10000 cycles
Recommended product warranty5 years
Available finish color options4
Reference Static Load150 kg depending on category
Moving-part Durability ReferenceAcceptance target 50000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Work surface substrateE1-grade low-emission melamine-faced chipboard
Work surface edge trim2mm thick impact-resistant PVC edge banding
Partition structural frame1.2mm thick white powder-coated steel tubing
Upper partition infill panelPinnable light-beige woven polyester fabric
Lower partition infill panelMelamine-faced particleboard matching worktop finish
Vertical support side panels25mm thick white melamine-faced chipboard
Mobile pedestal cabinet body18mm thick white melamine-faced board
Pedestal drawer and door frontTwo-tone light maple and white melamine panel
Pedestal castersBlack nylon swivel casters with brake locks
Hardware and fastenersZinc-plated steel assembly hardware
Primary Connector SpecificationReference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Curved corner shared workspaceTwo inward-facing curved work positions separated by central partition
Partial privacy partition system450mm high desk-mounted dividers block direct line of sight between users
Lockable mobile storage pedestalKey-locked rolling pedestal with 1 top drawer and 1 lower storage compartment
Integrated cable managementDesk-top cable grommets route power and data cords below work surface
Modular panel constructionPre-finished panels connect via cam-lock hardware for on-site assembly
Locking pedestal casters2 brake-equipped casters lock pedestal in place during use
Modesty panel coverageFull-height white panel under work surface conceals legs and under-desk wiring
Reversible configurationCorner unit can be installed left or right oriented to fit floorplans
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Packaging Volume0.8 m³/set
Reference Packaged Gross Weight120 kg/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open-plan office work zonesSuitable for 2 adjacent staff in corporate open offices, providing partial visual privacy without full enclosures
Shared administrative work areasIdeal for administrative, customer service or data entry teams requiring adjacent work positions and local document storage
Small business office fit-outsSpace-efficient corner layout maximizes usable floor area in compact office spaces without dedicated private offices
Co-working dedicated desk podsConfigurable as permanent dedicated desk pods with lockable personal storage for co-working members
Call center team clustersDividers reduce cross-talk distraction for staff taking frequent calls while allowing easy team communication
Modular office expansion projectsPanel-based design matches existing cubicle systems to expand workspace without replacing existing furniture
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office work tables safety, strength and durability requirements
EN 1335-1:2020Office furniture seating dimensions reference
EN 1022:2018Domestic and non-domestic seating stability test reference
EN 12521:2015Furniture strength, durability and safety for non-domestic tables
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk products performance standard
ANSI/BIFMA X5.9-2019Storage units performance standard
ANSI/BIFMA G1-2013Ergonomic guidelines for office furniture
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture
GB/T 17657-2013Test methods for evaluating surface physical and chemical properties of wood-based panels
GB 18580-2017Limits for formaldehyde emission from wood-based panels
GB/T 10357.1-2013Test methods for furniture mechanical performance, tables
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture;
2. GB/T 17657-2013:Test methods for evaluating surface physical and chemical properties of wood-based panels;
3. GB 18580-2017:Limits for formaldehyde emission from wood-based panels;
4. GB/T 10357.1-2013:Test methods for furniture mechanical performance, tables;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · CWS-2P-CRV-MP-LM/W

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · CWS-2P-CRV-MP-LM/W

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CWS-2P-CRV-MP-LM/W打开导出工具

页面快速操作

发布采购询价

产品描述

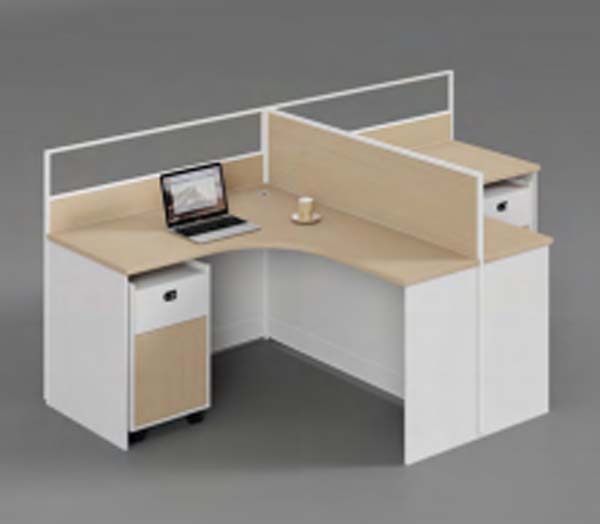

This unbranded 2-Person Curved Corner Modular Office Cubicle Workstation, model CWS-2P-CRV-MP-LM/W, is a space-efficient shared desk solution with a two-tone light maple and white finish. The curved corner layout places two inward-facing work positions around a gentle inner curve, with an overall footprint of 2400 x 1800 x 1200 mm. Partial-height privacy partitions rise 450 mm above the 750 mm high work surface, blocking direct line of sight between adjacent users while preserving open sightlines across the wider office space. Work surfaces are 30 mm thick E1-grade low-emission melamine-faced chipboard with light maple finish, trimmed with 2 mm impact-resistant PVC edge banding. Each individual work surface offers 700 mm depth, paired with 680 mm under-desk knee clearance and 900 mm of open width at the inner curved corner for comfortable seating. Partition frames are constructed from 1.2 mm thick white powder-coated steel tubing, with upper infill panels of pinnable light-beige woven polyester fabric and lower infill panels of white melamine-faced particleboard. Vertical support side panels and full-height modesty panels use 25 mm thick white melamine-faced chipboard, concealing under-desk wiring and user legs for a polished appearance. The included lockable mobile storage pedestal is built from 18 mm thick white melamine-faced board, with two-tone light maple and white drawer fronts. It features one top drawer and one lower storage compartment, secured with a key lock, and rides on black nylon swivel casters, two of which include brake locks to hold the unit in place during use. Integrated desktop cable grommets route power and data cords below the work surface to reduce surface clutter. The cam-lock connected pre-finished modular panel system supports straightforward on-site assembly, with a reference assembly time of 40 minutes per set. Each work surface supports a static distributed load of 150 kg, while each pedestal drawer holds a 30 kg static load; the melamine surface delivers 2000 cycles of abrasion resistance, and pedestal casters are rated for 10000 rolling cycles. The fully assembled unit weighs 185 kg, and comes packaged in two cartons with a packaged gross weight of 120 kg and packaging volume of 0.8 m³, backed by a 5-year recommended warranty. This workstation is well suited for open-plan corporate office zones, shared administrative or customer service work areas, small business fit-outs, co-working dedicated desk pods, call center team clusters, and phased modular office expansion projects. Procurement teams should note the corner placement requirement to maximize floor space efficiency, confirm alignment with existing modular cubicle systems for expansion use, and account for the 2-person seating capacity when planning workspace layouts.
