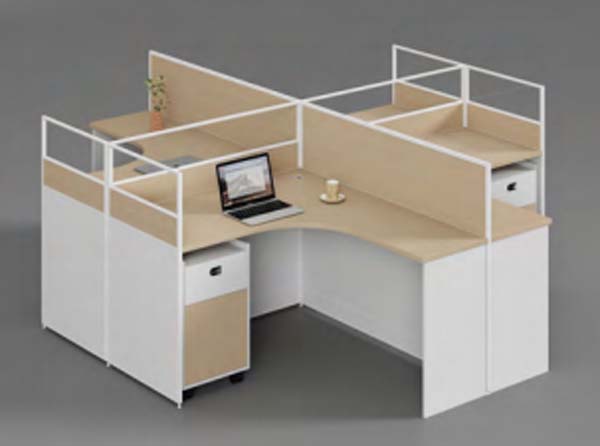

商品供应商4-Person Cross-Layout L-Shaped Office Cubicle Workstation with Mobile Storage Pedestals，E1-grade particleboard core with melamine laminate finish
可联系供应商获取生产周期与报价。
PRODUCT MODULE 01 / 06
基础物理尺寸
mm / 英寸自动双单位换算 · 工程采购基础规格
数据来源：工厂资料结构化字段，最终以实测值为准
| 产品外部尺寸（宽 × 深 × 高） | 2800 × 2800 × 1200 mm | |
|---|---|---|
| Overall 4-person cluster footprint | 2800 x 2800 x 1200 mm | |
| Single workstation arm surface width | 1400 mm | |
| Desktop work surface depth | 700 mm | |
| Standard work surface height above floor | 750 mm | |
| Curved concave corner knee clearance width | 600 mm | |
| Seated knee clearance height under desktop | 650 mm | |
| Lower solid partition panel height | 750 mm | |
| Upper open partition rail frame height | 450 mm | |
| Mobile under-desk pedestal dimensions | 400 x 500 x 600 mm | |
| Desktop panel thickness | 25 mm | |
| Steel partition frame tube wall thickness | 1.2 mm | |
| Partition panel total thickness | 32 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
重量、承重与性能参数
净重 / 最大承重 / 适用人数 / 耐久性能
数据来源：产品性能数据，采购前请核对具体测试口径
| Full 4-person set net weight | 280 kg | |
|---|---|---|
| Static desktop load capacity per station | 100 kg | |
| Caster rolling load rating per pedestal caster | 40 kg | |
| Surface scratch resistance rating | 2000 cycles | |
| Supported user count | 4 | |
| Commercial product warranty | 5 years | |
| Available finish color options | 6 | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
材质与结构参数
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
数据来源：以工厂材质清单与验货报告为准
| Desktop core material | E1-grade particleboard core with melamine laminate finish | |
|---|---|---|
| Desktop edge treatment | 2mm PVC edge banding with rounded safety corners | |
| Frame material | Powder-coated white steel tube frame for partitions and desk support | |
| Lower solid partition panels | Melamine-faced particleboard with white and beige two-tone finish | |
| Upper partition frame infill | Open white steel rail frame forming elevated shelf ledge | |
| Mobile pedestal construction | Melamine-faced particleboard drawer body with matching two-tone finish | |
| Pedestal mobility hardware | 50mm black nylon swivel casters, two with locking brakes | |
| Cable management grommets | ABS plastic desktop cable ports at each workstation corner | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
功能与调节参数
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
数据来源：功能配置参数，以供应商正式规格为准
| Workstation layout function | Four L-shaped workspaces arranged in cross formation for clustered team seating | |
|---|---|---|
| Storage function | One lockable mobile 3-drawer pedestal per station, fits fully under desktop for personal storage | |
| Partition privacy function | Lower solid panels block seated leg and torso visibility between adjacent users | |
| Cable management function | Integrated desktop grommets route power and data cables from surface to under-desk trays | |
| Upper shelf function | Top rail frame supports lightweight desk items such as plants or small accessories at partition height | |
| Mobility function for storage | Pedestals roll on lockable casters for flexible repositioning under the desk | |
| Modular assembly function | Knock-down panel and frame design allows reconfiguration or expansion of the workstation cluster | |
| Edge safety function | Rounded curved desktop corners eliminate sharp impact points at seated entry positions | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
包装与物流参数
经核验的外箱 / 毛重 / 组装 / 装柜数据
数据来源：外贸报价与装柜测算参考
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
应用场景与使用方式
推荐空间 / 目标用户 / 使用方式
数据来源：依据产品结构与品类整理的推荐应用场景
| Open plan office space | Suitable for 4-person team clusters in corporate open office layouts, balancing privacy and collaboration | |
|---|---|---|
| Call center and customer service zones | High-density layout maximizes seat count while providing personal partitioned workspaces | |
| Startup and co-working environments | Modular design allows flexible reconfiguration as team sizes change over time | |
| Small business office fit-outs | Neutral two-tone beige and white finish matches most modern office interior design schemes | |
| Government and institutional offices | Durable commercial-grade construction supports high-frequency daily use over long service life |
STANDARD S1
欧盟市场准入要求 * EN 标准
欧洲市场准入与化学品要求
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to desk structure performance | |
|---|---|---|
| EN 1335-1:2020 | Office furniture dimensional coordination for seated work, applicable to desk height and clearance | |
| EN 1022:2018 | Furniture seating stability test reference for adjacent workstation clearance |
STANDARD S2
北美市场采购验货参考 * ANSI/BIFMA 标准
美国及加拿大家具标准
| ANSI/BIFMA X5.5-2021 | Desk products standard for safety, durability and structural performance | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard applicable to mobile under-desk pedestal performance |
STANDARD S3
适用于中国市场项目的标准 * GB 标准
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desktops and cabinet components | |
|---|---|---|
| GB/T 3327-2020 | Performance testing standards for office desks and worktables, applicable to load and durability | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panel products, applicable to E1-grade board materials |
招标文件标准化描述文本
本产品须满足以下技术参数要求： 1. GB/T 3324-2017：General technical requirements for wooden furniture, applicable to desktops and cabinet components； 2. GB/T 3327-2020：Performance testing standards for office desks and worktables, applicable to load and durability； 3. GB 18580-2017：Formaldehyde emission limits for wood-based panel products, applicable to E1-grade board materials； 最终交付参数、检测报告和验收标准以双方采购合同为准。
