PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	2800 × 2800 × 1200 mm
Overall unit dimensions	2800 x 2800 x 1200 mm
Desktop working height	750 mm
Per-seat desktop arm length	1400 mm
Per-seat desktop depth	700 mm
Privacy partition solid panel height	900 mm
Knee clearance height under desktop	620 mm
Mobile pedestal dimensions	400 x 500 x 600 mm
Desktop thickness	25 mm
Partition upper open frame height	300 mm
Curved inner corner radius	150 mm
Steel frame tube thickness	1.2 mm
PVC/ABS edge banding thickness	2 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Per-station desktop static load capacity	120 kg
Mobile pedestal drawer static load	25 kg per drawer
Complete workstation total assembled weight	280 kg
Surface abrasion resistance	2000 cycles
Recommended maximum user weight per station	130 kg
Partition frame lateral stability load	30 kg
Color option count	60
Structural warranty period	5 years
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Desktop substrate	25mm E1 grade particleboard with melamine laminate surface
Workstation support frame	1.2mm thick powder-coated white steel tubing
Partition lower solid infill	beige fabric-faced laminate panel
Edge trim	2mm thick ABS/PVC rounded safety edge banding
Mobile pedestal body	18mm melamine-faced particleboard with white/beige two-tone finish
Mobile pedestal casters	50mm diameter nylon swivel casters with lock mechanism
Partition upper rail	white hollow steel rectangular tube frame with open infill
Fastening hardware	zinc-plated steel cam-lock and bolt connectors for knock-down assembly
Desktop surface finish	stain-resistant, water-repellent, scratch-resistant matte melamine
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Layout configuration	cross-shaped cluster forming 4 independent L-shaped workstations with center privacy partition cross
Work surface design	curved inner corner at each station for ergonomic seated elbow positioning without sharp edges
Storage provision	one 3-drawer wheeled mobile pedestal per station positioned under desktop for filing storage
Cable management	concealed central cable routing channel with desktop wire access grommets at each station
Privacy separation	900mm tall solid partition panels block seated line of sight between adjacent workers
Mobility of storage	lockable swivel casters on pedestals allow units to be pulled out for access or repositioning
Modular assembly	knock-down steel and panel construction supports reconfiguration of layout in future workspace changes
Accessory compatibility	partition top rails support mounting of monitor arms, pen trays, or desk divider accessories
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Total packed volume (CBM)	1.4 CBM
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Open plan office spaces	Creates private individual work zones without full-height wall construction for team layouts
Call center and customer service floors	Curved corners and partition height support focused screen work for seated agents
Startup and co-working spaces	Modular design allows rapid deployment and future reconfiguration of workspace counts
Administrative and back-office departments	Integrated mobile pedestals provide immediate personal document storage per user
Staff work areas requiring visual privacy	900mm solid panels reduce distraction while maintaining open upper airflow
4-person small team clusters	Cross layout supports adjacent team seating with equal desk space per member

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011	Office work tables safety and strength requirements for commercial use
EN 1335-1:2020	Office furniture dimensional coordination for seated work surface heights
EN 12521:2015	Furniture strength, durability and safety requirements for non-domestic seating desks

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021	Desk products standard for structural performance and durability testing
ANSI/BIFMA X7.1-2022	Formaldehyde emission standard for office furniture panel components

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to desktops and storage cabinets
GB/T 3327-2016	Office desk performance test methods, applicable to structural load verification
GB 18580-2017	Formaldehyde emission limit for wood-based panels, minimum E1 grade requirement
GB/T 24821-2009	Office panel partition workstation dimensional and structural requirements

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 3324-2017：General technical requirements for wooden furniture, applicable to desktops and storage cabinets；
2. GB/T 3327-2016：Office desk performance test methods, applicable to structural load verification；
3. GB 18580-2017：Formaldehyde emission limit for wood-based panels, minimum E1 grade requirement；
4. GB/T 24821-2009：Office panel partition workstation dimensional and structural requirements；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · CW-4P-CURV-1200

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · CW-4P-CURV-1200

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CW-4P-CURV-1200打开导出工具

页面快速操作

发布采购询价

产品描述

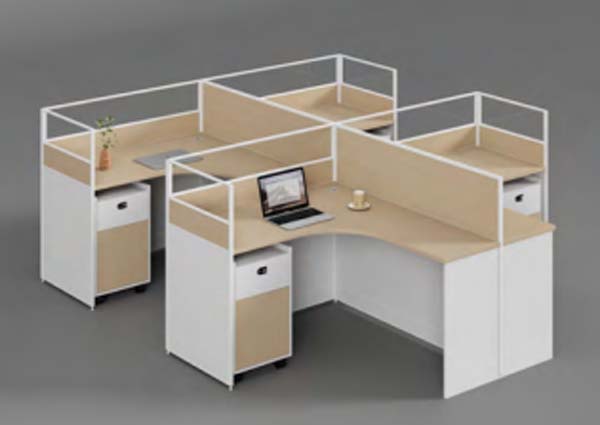

The 4-Person Cross-Shaped Curved Corner Office Cubicle Workstation with Mobile Pedestals (model CW-4P-CURV-1200, unbranded) is a modular partitioned cluster workstation designed for efficient, ergonomic shared workspaces. Its cross-shaped layout forms four equally sized independent L-shaped workstations arranged around a central privacy partition cross, with curved inner desktop corners at each seat to support natural, comfortable elbow positioning during seated work, free of sharp edges. Overall unit dimensions measure 2800 x 2800 x 1200 mm, with a 750 mm desktop working height, 620 mm under-desk knee clearance, 1400 mm per-seat desktop arm length, 700 mm per-seat desktop depth, and 900 mm tall solid partition panels that block seated line of sight between adjacent users to reduce distraction while preserving open upper airflow across the space. The workstation is built with durable, functional materials: a 25 mm thick desktop substrate of E1 grade particleboard finished with a stain-resistant, water-repellent, scratch-resistant matte melamine surface, trimmed with 2 mm thick rounded ABS/PVC safety edge banding. Support comes from a 1.2 mm thick powder-coated white steel tubing frame, paired with partition panels that feature a white hollow steel rectangular tube upper rail and beige fabric-faced laminate lower solid infill. Each seat is paired with a 400 x 500 x 600 mm mobile pedestal constructed from 18 mm melamine-faced particleboard in a white and beige two-tone finish, fitted with 50 mm diameter lockable nylon swivel casters for easy repositioning, and three drawers per unit for personal filing storage. A concealed central cable routing channel with desktop wire access grommets at each station keeps work surfaces tidy, while knock-down construction using zinc-plated steel cam-lock and bolt connectors supports future layout reconfiguration. Each desktop supports 120 kg of static load, with a 130 kg recommended maximum user weight per station; each mobile pedestal drawer holds 25 kg of static load, and the partition frame supports 30 kg of lateral stability load, with a melamine surface rated for 2000 cycles of abrasion resistance. The unit is offered in 60 color options to align with varied workspace design schemes. This workstation is ideal for open plan offices to create dedicated individual work zones without full-height wall construction, call center and customer service floors supporting focused screen-based work, startup and co-working spaces requiring rapid deployment and flexible layout adjustment, administrative back-office departments needing immediate per-user document storage, spaces prioritizing seated visual privacy to reduce distraction, and small four-person teams seeking equal, accessible desk space for all members. Procurement teams should note the knock-down assembly structure, which ships in two cartons per set with a 1.4 CBM total packed volume, 120 kg packaged gross weight, and 40-minute reference assembly time per set, allowing for straightforward delivery and on-site setup. The full assembled unit weighs 280 kg.

4-Person Cross-Shaped Curved Corner Office Cubicle Workstation with Mobile Pedestals Specifications
