PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	2800 × 1400 × 1350 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Total workstation weight	145 kg
Per-user static desktop load	80 kg
Pedestal top load	40 kg
Drawer static load	20 kg per drawer
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support
Reference Finish / Color Count	Recommended 6top finishes and 3frame colors

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

该模块暂无数据。

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

该市场暂无标准数据。

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

该市场暂无标准数据。

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. 技术标准与检测报告由供应商在投标或采购确认阶段提供；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · WS-CALL-2P-PP-MP

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · WS-CALL-2P-PP-MP

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · WS-CALL-2P-PP-MP打开导出工具

页面快速操作

发布采购询价

产品描述

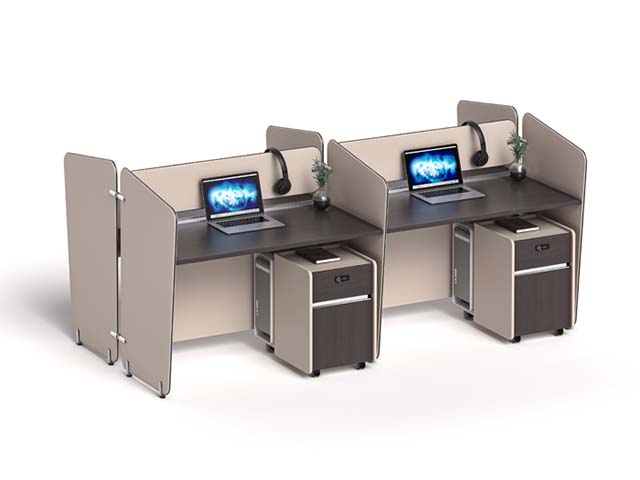

The Two-Person Modular Call Center Workstation with Privacy Panels and Mobile Pedestals is an unbranded office workstation designed for focused, side-by-side seating in call center and administrative environments. Its model code is WS-CALL-2P-PP-MP, and it falls within the office workstation and call center cubicle desk category. The layout provides two defined user positions separated by privacy panels, giving each person a dedicated work zone while retaining the compact efficiency of a shared modular bench. Dark woodgrain-toned melamine surfaces, fabric-laminated dividers, and frame finish options support a coordinated professional appearance. The recommended finish program includes six work surface finishes and three frame colors, allowing the system to align with different interior standards without changing its core configuration. The work surfaces and mobile pedestals use melamine-faced particleboard with plastic edge trim. Privacy panels are fabric-laminated, and the support structure is built from cold-rolled steel. Primary panel thickness is 25 mm, while a load-bearing top may use a 40 mm composite build-up. Edge banding is 2 mm thick, and the steel frame has a 2 mm wall. The finished top thickness is 50 mm. The 80 mm main support section uses M6 to M8 reference connectors, with at least two fixing points at each main support. The complete workstation weighs 145 kg. Each main seat position has 680 mm of effective knee clearance height and 900 mm of width. Static desktop capacity is 80 kg per user, with a 150 kg uniformly distributed top load reference. Pedestal tops support 40 kg, and each drawer has a 20 kg static load rating. Drawer slides are rated for 45 kg per pair and 50,000 cycles, while hinges have an 80,000-cycle acceptance target. Nylon casters allow the pedestals to move between storage and seated use. An 80 mm cable opening and 120 mm-deep tray support up to ten power or data cables, with a tray load of 10 kg. Main joints are intended for five controlled assembly cycles. This workstation is suitable for call centers, help desks, customer service floors, back-office teams, and shared service areas where acoustic screening, orderly cable routing, and personal storage are required. Buyers should review site access, floor load plans, electrical layout, and finish selections before purchase. Reference logistics list one set in two cartons, 40 minutes assembly time, 180 kg packaged gross weight in four cartons, and 1 cubic meter packaging volume; the main top package measures 2500 by 1050 by 350 mm, with return and pedestal packed separately.

Two-Person Modular Call Center Workstation with Privacy Panels and Mobile Pedestals Specifications
