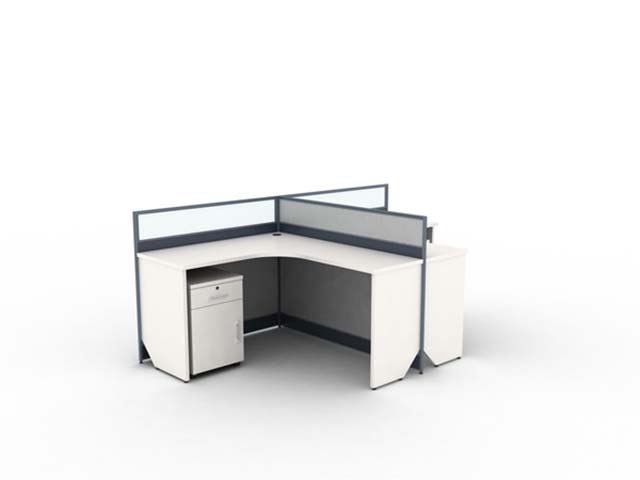

L-Shaped Curved Corner Modular Office Cubicle Workstation with Frosted Glass Privacy Partitions and Lockable 3-Drawer Mobile Pedestal Specifications

OFW-LCUB-1500G-PED

代码:F6EX9NV1
获取供应商报价
2026-08-21 15:07人气: 23
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

OFW-LCUB-1500G-PED

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall footprint (per workstation)1500 x 1500 x 1200 mm
Work surface height750 mm
Work surface depth (straight segments)600 mm
Curved corner work surface radius300 mm
Privacy partition total height1200 mm
Frosted glass panel height (partition upper section)400 mm
Fabric/steel lower partition panel height800 mm
Knee clearance height under work surface620 mm
Knee clearance width at corner opening800 mm
Mobile pedestal dimensions450 x 600 x 620 mm
Work surface thickness25 mm
Edge banding thickness2 mm
Cable grommet diameter80 mm
Partition frame profile wall thickness1.2 mm
Support leg steel wall thickness1.2 mm
Finished Top Thickness50 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Work surface static uniform load capacity150 kg
Drawer slide cycle rating50000 cycles
Partition frame static connection load100 kg
Recommended user weight capacity per station120 kg
Mobile pedestal caster rolling load rating (per caster)25 kg
Net weight per complete workstation with pedestal85 kg
Surface abrasion resistance rating2000 cycles
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Work surface substrateE0-grade high-density fiberboard, density 720 kg/m³
Work surface finishWear-resistant melamine laminate, matte white finish
Edge banding2mm thick PVC hot-melt edge banding
Partition frameAnodized aluminum alloy extruded profile, dark grey finish
Upper partition panel5mm thick frosted semi-transparent tempered safety glass
Lower partition panel18mm thick particleboard with fabric acoustic facing
Desk support structure1.2mm thick cold-rolled steel, white powder-coated finish
Mobile pedestal body0.8mm thick cold-rolled steel, white powder-coated finish
Drawer slides3-section full-extension ball-bearing steel slides, zinc plated
Cable management componentsABS plastic grommet + 0.8mm thick steel under-desk cable tray
Mobile pedestal casters50mm diameter nylon swivel casters, 2 with lock brakes
Hardware fastenersZinc alloy connectors and steel screws
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Modular cluster expansionAluminum profile connectors support linking into multi-seat pod layouts
Cable management systemCorner desktop grommet + under-desk tray routes power/data cords off surface
Mobile pedestal storage3 lockable drawers (2 stationery, 1 filing) rolls fully under desk
Privacy partition designDual-zone glass/fabric panels block seated sightlines while admitting light
Pedestal caster locking2 lockable casters fix pedestal position when in use
Leveling adjustmentAdjustable floor glides on desk legs compensate for uneven floor surfaces
Knock-down assemblyFlat-pack components allow on-site assembly with standard tools
Surface cleaning compatibilityNon-porous melamine finish supports wipe cleaning with common office disinfectants
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open plan office spacesSuitable for 100+ seat clustered staff work areas
Corporate administrative departmentsFor clerical, HR, finance and general admin staff use
Government and public institution officesMeets public procurement durability and low-emission requirements
Startup and co-working spacesReconfigurable modular layout supports flexible team scaling
Medical and educational back officesWipe-clean surfaces and lockable storage meet hygiene and security needs
Call center and customer service floorsMedium-height partitions reduce cross-talk distraction
Project team work zonesLinked clusters support adjacent team member collaboration
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-2:2002+A1:2019Office worktables safety and strength requirements
EN 1335-1:2020Office furniture ergonomic dimensions for work surfaces
EN 1022:2018Furniture stability test standard for seating and storage units
EN 13501-1:2018Fire classification of construction products, class B-s1,d0 for panels
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk products performance and safety standard
ANSI/BIFMA X5.9-2019Storage units performance standard, applicable to mobile pedestal
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to laminated work surfaces
GB 18580-2017Formaldehyde emission limit for wood-based panels, E0 grade ≤0.05 mg/m³
GB/T 3327-2016Technical requirements for office desks and workstations
GB 20286-2006Flame retardant requirements for public place furniture components
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to laminated work surfaces;
2. GB 18580-2017:Formaldehyde emission limit for wood-based panels, E0 grade ≤0.05 mg/m³;
3. GB/T 3327-2016:Technical requirements for office desks and workstations;
4. GB 20286-2006:Flame retardant requirements for public place furniture components;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · OFW-LCUB-1500G-PED

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · OFW-LCUB-1500G-PED

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · OFW-LCUB-1500G-PED打开导出工具

页面快速操作

发布采购询价

产品描述

This L-shaped curved corner modular office cubicle workstation blends streamlined modern styling with functional workspace design for a range of professional settings. Its layout features a continuous curved corner work surface that connects two straight desk segments, paired with medium-height privacy partitions that wrap the work area. The partition system uses a dual-zone design: a lower panel blocks direct seated sightlines to reduce distraction, while an upper frosted semi-transparent glass panel allows natural light to filter through the workspace, balancing privacy and open, bright atmosphere. The matching lockable 3-drawer mobile pedestal tucks fully under the work surface to keep storage within easy reach without cluttering leg space. Constructed for long-term commercial use, the work surface uses an E0-grade high-density fiberboard substrate finished with wear-resistant matte white melamine laminate, sealed with 2mm PVC hot-melt edge banding to resist daily wear. Partition frames are built from anodized dark grey aluminum alloy extrusions, with desk supports and hardware made from powder-coated cold-rolled steel for stable structural support. The mobile pedestal is constructed from powder-coated steel, fitted with 3-section full-extension zinc-plated ball-bearing slides, two lockable casters to hold it in place during use, and a lock system to secure stored contents. Additional functional details include an integrated cable management system with a corner desktop grommet and under-desk tray to route power and data cords out of sight, adjustable floor glides to compensate for uneven flooring, and modular aluminum connectors that allow individual workstations to be linked into multi-seat pod layouts. This workstation is well suited for open plan office spaces, corporate administrative departments, government and public institution offices, startup and co-working spaces, medical and educational back offices, as well as call center and customer service floors. For procurement planning, note that units ship as flat-pack components for on-site assembly using standard tools, with a standard assembly time per set. The modular design supports flexible reconfiguration as team sizes change, and the wipe-clean laminate surface supports easy routine maintenance. The lockable filing drawer and personal stationery storage address security needs for sensitive documents and personal work items, while the partition height reduces cross-talk and visual distraction in high-density work areas.
