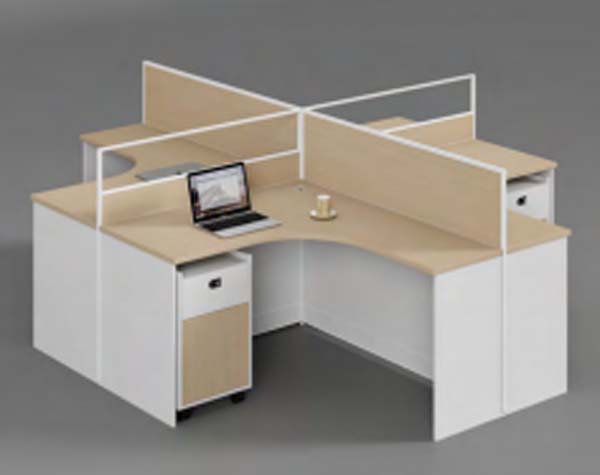

4-Person 120-Degree Cross Office Cubicle Workstation with Mobile Pedestals Specifications

CUB-120-4P-MP

代码:FHLMEDV1
获取供应商报价
2026-09-01 17:03人气: 20
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

CUB-120-4P-MP

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall footprint dimensions2830 x 2830 x 1200 mm
Individual work surface height750 mm
Single seat work surface size1200 x 600 mm
Desktop panel thickness25 mm
Privacy partition panel thickness30 mm
PVC edge banding thickness2.0 mm
Seated knee clearance height650 mm
Knee clearance depth under desktop450 mm
Mobile pedestal dimensions400 x 500 x 600 mm
Support leg steel section thickness1.2 mm
Cable grommet diameter60 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Desktop static uniform load capacity150 kg
Drawer slide cycle durability50000 cycles
Hinge cycle durability80000 cycles
Surface abrasion resistance2000 cycles
Product net weight (fully assembled)250 kg
Maximum seated user weight per station136 kg
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
Top Abrasion ReferenceAcceptance target ≥4,000 abrasion cycles or finish-system test
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Work surface coreE1-grade particle board substrate
Work surface finishThermally fused melamine laminate
Edge protection2.0mm thick PVC edge banding, color-matched
Partition framePowder-coated white steel tube frame
Partition infill panelBeige fabric-wrapped fiberboard panel
Structural support framePowder-coated square steel legs and rails
Mobile pedestal cabinet bodyMatching melamine-faced particle board
Pedestal casters30mm diameter PP swivel casters, two locking
Fasteners and hardwareZinc-plated corrosion-resistant steel hardware
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Cable management systemPartition-integrated separated strong/weak cable raceways
Mobile pedestal storageThree-drawer lockable rolling pedestal per seat
Modular assemblyKnock-down pre-drilled panels with connecting hardware
Privacy partition function1200mm tall central cross dividers
Curved work corner work surfaceErgonomic rounded 120° desktop edge
Grommet cable accessOne 60mm cable grommet per work surface
Pedestal mobilitySwivel casters with two lock positions per pedestal
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open plan office work areas4 dedicated private workstations for daily staff administrative and computer work
Startup and small business officesCompact cluster layout maximizes seat count without sacrificing privacy
Shared corporate work zonesModular design supports reconfiguration as team size changes
Administrative and clerical departmentsIntegrated under-desk storage keeps supplies organized at each seat
Call center and back-office operationsPrivacy dividers reduce visual distraction between adjacent operators
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-2:2002+A1:2019Office worktables - Safety and strength requirements
EN 1335-1:2020Office furniture - Office work chairs dimensions
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk Products - Safety and performance requirements
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2024General technical requirements for wooden furniture
GB 18580-2017Formaldehyde emission limits for wood-based panels
GB/T 15102-2017Specification for melamine-faced wood-based panels
GB 18584-2024Limit of harmful substances in wood furniture
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2024:General technical requirements for wooden furniture;
2. GB 18580-2017:Formaldehyde emission limits for wood-based panels;
3. GB/T 15102-2017:Specification for melamine-faced wood-based panels;
4. GB 18584-2024:Limit of harmful substances in wood furniture;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · CUB-120-4P-MP

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · CUB-120-4P-MP

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CUB-120-4P-MP打开导出工具

页面快速操作

发布采购询价

产品描述

This 4-person 120-degree cross office cubicle workstation is designed to balance collaborative proximity and individual focus, featuring a symmetric cross layout that arranges four dedicated workstations around a central divider core in a two-tone beige and white finish. The 1200mm tall fabric privacy dividers form a Y-shaped cross structure separating each work zone, with ergonomically rounded curved 120-degree desktop edges that sit at a standard 750mm work surface height, offering comfortable seated clearance for users. Each individual work surface provides ample space for daily tasks, with integrated cable access grommets that feed into partition-integrated raceways separating strong and weak electrical cables for clean, organized desk setups. The workstation is built for long-term commercial use, with a structural frame of powder-coated square steel legs and rails that support E1-grade particle board work surfaces clad in thermally fused melamine laminate. All panel edges are finished with color-matched 2.0mm thick PVC edge banding to resist impact and wear, while privacy dividers combine white powder-coated steel tube frames with beige fabric-wrapped fiberboard infill panels to dampen visual distraction. Each seat comes with a matching three-drawer lockable mobile pedestal, constructed from the same melamine-faced particle board as the work surfaces and fitted with PP swivel casters, two of which include locking mechanisms to keep storage stable when positioned under desks. Zinc-plated corrosion-resistant steel hardware connects knock-down pre-drilled panels for straightforward modular assembly. This cubicle system fits a range of commercial spaces, including open-plan office work areas, startup and small business offices, shared corporate work zones, administrative departments, call centers, and back-office operations. Its compact cluster layout maximizes seat count without compromising individual privacy, and its modular design supports reconfiguration as team sizes or space needs shift, while integrated under-desk storage keeps office supplies organized at each workstation to reduce surface clutter. For procurement, note that the set ships in multiple cartons, with a documented assembly time per set for trained facilities teams. Each work surface supports a 150kg uniform static load, with tested durability for drawer slides, hinges, and surface abrasion suited for daily high-traffic office use. The unbranded model is available as a complete set including one mobile pedestal per seat, with no additional accessories specified as standard, allowing teams to coordinate with existing seating and office decor as needed.
