PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	1800 × 1800 × 1100 mm
overall footprint	1800 x 1800 mm
desktop height	760 mm
total partition height	1100 mm
translucent upper partition panel height	305 mm
solid lower partition panel height	795 mm
worktop depth (main surface)	600 mm
worktop depth (return storage section)	450 mm
desktop thickness	25 mm
edge band thickness	2 mm
knee clearance height	670 mm
knee clearance width	800 mm
cabinet unit height	1100 mm
upper open shelf height (cabinet)	350 mm
cable grommet diameter	80 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

desktop static load capacity	91 kg
cabinet shelf static load	30 kg
recommended user weight capacity	136 kg
surface abrasion resistance	2000 cycles
unit net weight	120 kg
standard commercial warranty	5 years
available color options	4
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

desktop surface	25mm thick engineered wood with thermally fused melamine laminate
desktop edge	2mm thick PVC edge banding, impact-resistant
partition frame	1.2mm thick white powder-coated steel tubing
upper partition panel	5mm thick frosted translucent acrylic panel
lower partition panel	18mm thick melamine-faced engineered wood panel, dark blue finish
cabinet body	18mm thick melamine-faced engineered wood, white and dark blue finish
cabinet hardware	Zinc-alloy keyed cam locks, steel concealed hinges
cable management raceway	1mm thick powder-coated steel channel integrated under worktop
partition connectors	Die-cast zinc alloy corner and panel joining brackets
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

partition privacy screening	1100mm tall dividers block direct line of sight between seated adjacent workers
integrated side storage	Two lockable lower cabinet doors plus two upper open shelves for office supplies
cable management	80mm diameter desktop grommets paired with under-desk steel raceways route power and data cables
knock-down assembly	Panelized components join via steel brackets for on-site assembly without permanent welding
storage door locking	Keyed cam locks secure lower cabinet doors to secure personal or office items
seated work access	670mm high, 800mm wide central knee well provides unobstructed leg room for standard office chairs
work surface layout	L-shaped configuration provides two connected work zones for primary task and secondary document/device placement
panel replaceability	Modular partition panels can be swapped or reconfigured without replacing full frame structure
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

open plan office staff seating	Suitable for general administrative, clerical, and data entry staff in open office layouts
small studio workspace	Fits compact creative or startup offices where single users need dedicated work and storage space
call center workstations	Frosted upper panels reduce visual distraction while supporting easy supervisor access
government office work areas	Durable laminate surfaces and lockable storage meet public sector office durability requirements
temporary project office setup	Knock-down design allows easy disassembly and reconfiguration for short-term project spaces

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011	Office worktables safety and strength requirements, applicable to desktop and support structure
EN 1335-1:2020	Office furniture dimensional safety for seated work, applicable to knee clearance dimensions

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021	Desk products performance standard, applicable to desktop load and durability testing
ANSI/BIFMA X5.6-2022	Panel systems performance standard, applicable to partition strength and connector durability

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to laminate cabinet and worktop components
GB/T 3325-2017	Safety and performance requirements for metal office furniture, applicable to steel partition frames
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applicable to all engineered wood components

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 3324-2017：General technical requirements for wooden furniture, applicable to laminate cabinet and worktop components；
2. GB/T 3325-2017：Safety and performance requirements for metal office furniture, applicable to steel partition frames；
3. GB 18580-2017：Formaldehyde emission limits for wood-based panels, applicable to all engineered wood components；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · CUB-L1-STG-2D

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · CUB-L1-STG-2D

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CUB-L1-STG-2D打开导出工具

页面快速操作

发布采购询价

产品描述

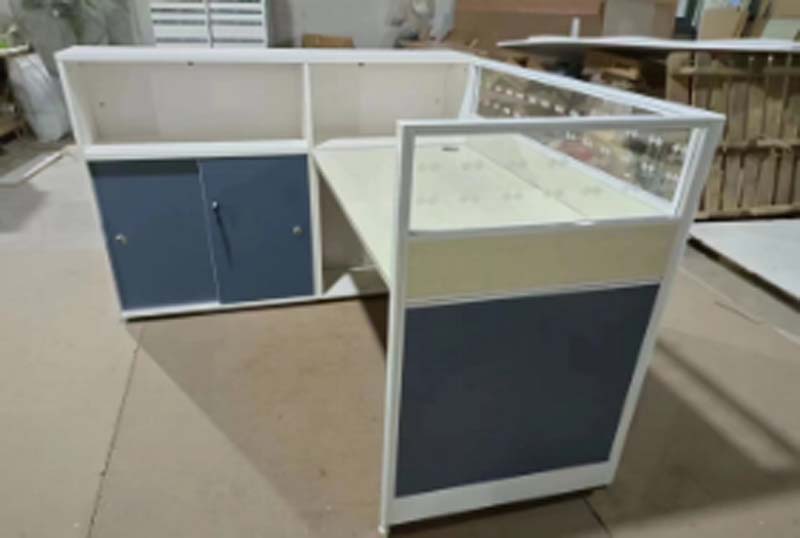

The Single-Person L-Shaped Office Cubicle Workstation with Attached 2-Door Storage Cabinet (model CUB-L1-STG-2D) delivers a partitioned, space-efficient dedicated work solution for individual users, blending streamlined modern aesthetics with integrated functional design. Its L-shaped layout creates two connected work zones, supported by an 1100mm tall partition system that pairs frosted translucent upper panels with solid dark blue lower panels, set within crisp white metal frames. The configuration balances visual privacy for seated users with subtle visual connection across open spaces, while the attached storage unit sits seamlessly along the return section of the work surface for a cohesive, uncluttered footprint. Built for consistent commercial use, the workstation features a 25mm thick engineered wood worktop finished with thermally fused melamine laminate, edged with impact-resistant 2mm PVC banding to withstand regular daily wear. Partition frames are constructed from powder-coated white steel tubing, joined with die-cast zinc alloy brackets for stable alignment, while lower partitions and cabinetry use durable melamine-faced engineered wood in a coordinated white and dark blue finish. The integrated storage unit includes two upper open shelves for frequently accessed supplies and two lower lockable doors fitted with zinc-alloy keyed cam locks and steel concealed hinges, secured to store personal or confidential office items. An integrated powder-coated steel cable management raceway runs beneath the worktop, paired with desktop grommets to route power and data cords out of sight, and a generously sized central knee well accommodates standard office chairs for comfortable seated access. This workstation suits a wide range of commercial and compact residential-style workspaces, including open plan office layouts for administrative, clerical and data entry staff, small startup or creative studios, call center floors, government office areas, and temporary project office setups. Its knock-down panelized design supports on-site assembly without permanent welding, and allows straightforward disassembly and reconfiguration as space needs change. Procurement teams should note the unit ships across multiple cartons, with defined assembly time per set, and is backed by a 5-year standard commercial warranty. Four color options are available to align with existing interior design schemes, and load ratings for the worktop, cabinet shelves and user weight capacity support standard office use cases. The frosted upper partition panels reduce cross-workstation visual distraction while still enabling easy supervisor access across team floors, making the unit a versatile choice for high-occupancy work environments.

Single-Person L-Shaped Office Cubicle Workstation with Attached 2-Door Storage Cabinet Specifications
