L-Shaped Office Cubicle Workstation Desk with Privacy Partition and Integrated Storage Specifications

WS-L1600-PART-CAB

代码:G4H6WGV1
获取供应商报价
2026-09-04 10:23人气: 10
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

WS-L1600-PART-CAB

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall workstation footprint1600 x 1600 x 1200 mm
Desktop height from floor750 mm
Worktop depth700 mm
Worktop thickness25 mm
Partition total height1200 mm
Partition panel thickness83 mm
Knee clearance height under worktop680 mm
Integrated storage unit dimensions800 x 400 x 1100 mm
Upper open cubby shelf height per compartment300 mm
Lower cabinet door height650 mm
Edge band thickness2 mm
Cable grommet diameter60 mm
Adjustable glide foot adjustment range15 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Desktop uniform static load capacity80 kg
Cabinet door hinge cycle rating50000 cycles
Unit total weight100 kg
Surface scratch resistance2H pencil hardness
Formaldehyde emission level0.124 mg/m³
Adjustable glide static load per foot80 kg
Product warranty period5 years
Available color options3
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Worktop surface25mm E1 grade melamine-faced engineered wood board
Worktop edge trim2mm thick PVC/ABS impact-resistant edge banding
Privacy partition frameBlack powder-coated aluminum alloy extruded profile
Partition upper sectionHorizontal slatted grille panel for partial ventilation and visibility
Partition mid band40mm thick gray solid melamine panel for seated privacy
Partition lower panelWhite solid melamine panel below gray privacy band
Storage cabinet doors18mm gray melamine-faced engineered wood with keyed locks
Open storage cubby panels18mm white melamine-faced engineered wood with clean edge finishing
Desk support legs40mm diameter powder-coated square steel tube
Leveling feetNylon base adjustable glides with metal threaded stem
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Locking lower cabinet storageTwo hinged doors with keyed lock to secure office documents and supplies
Open upper cubby storageTwo divided open shelves for frequently accessed files, stationery or desk accessories
Seated privacy screening1200mm high partition blocks cross-line sight between adjacent seated workers
Slatted upper partition ventilationHorizontal grille section at top of screen allows air circulation while maintaining privacy
Cable management pass-through60mm diameter grommet at worktop corner routes power and data cables off work surface
Floor leveling adjustment15mm height adjustment on each glide foot corrects uneven floor surfaces to keep worktop level
Modular cluster configurationDesk and partition can connect to adjacent units to form multi-staff cubicle banks
Stain-resistant work surfaceMelamine laminate finish resists common office spills and smudges for easy cleaning
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open-plan office staff work areasProvides individual privacy for daily admin, clerical and operational staff work
Small team department zonesCan be grouped into connected clusters to accommodate 8person teams
Startup and SME office fit-outsBalances private workspace and integrated storage to maximize limited floor space
Shared service center workspacesStandardized dimensions and storage support consistent high-volume staff deployments
Temporary office project setupsKnockdown design allows quick reconfiguration and relocation as team sizes change
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-2:2016Office worktables safety and strength requirements for worktop load and stability
EN 14073-2:2004Office storage furniture safety requirements for hinged cabinet door performance
EN 13722:2004Office furniture cubicle partition structural stability and strength requirements
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk products standard covering static load, impact and durability testing for work surfaces
ANSI/BIFMA X5.9-2019Office storage units standard for cabinet door and shelf load performance
ANSI/BIFMA X5.10-2017Panel systems standard for partition stability and component anchorage
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden office furniture, applicable to panel worktop and cabinet components
GB 18580-2017Formaldehyde emission limit for wood-based panels, ≤0.124mg/m³ for E1 grade panel acceptance
GB/T 4897.3-2015Particleboard specifications for furniture structural use, applicable to worktop core material
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden office furniture, applicable to panel worktop and cabinet components;
2. GB 18580-2017:Formaldehyde emission limit for wood-based panels, ≤0.124mg/m³ for E1 grade panel acceptance;
3. GB/T 4897.3-2015:Particleboard specifications for furniture structural use, applicable to worktop core material;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · WS-L1600-PART-CAB

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · WS-L1600-PART-CAB

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · WS-L1600-PART-CAB打开导出工具

页面快速操作

发布采购询价

产品描述

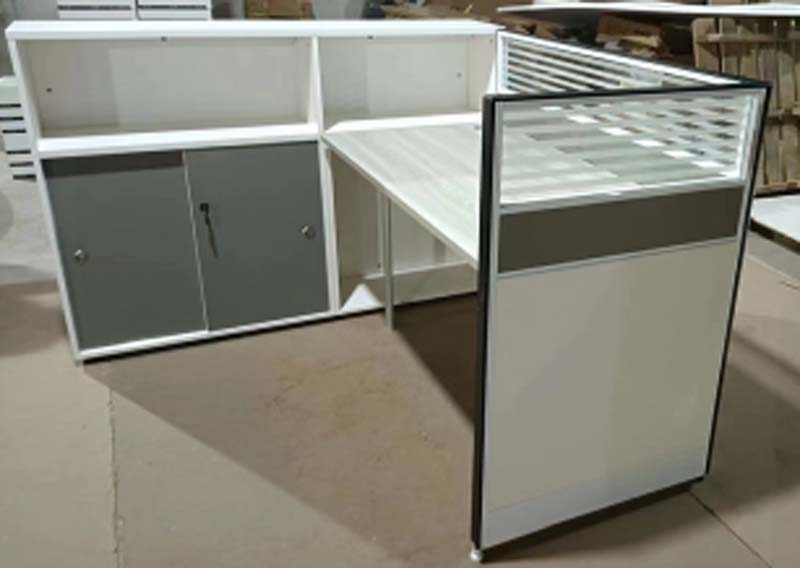

This L-shaped office cubicle workstation desk combines structured privacy, integrated storage, and modular flexibility to support focused individual work in shared environments. Presented in a clean two-tone white-gray finish, the unit forms a right-angle work surface anchored by a 1200mm tall privacy partition that runs along the inner junction of the L layout. The partition is zoned for balanced function: its lower section uses white solid melamine panels, a mid-height gray solid band blocks direct cross-sight lines between seated adjacent workers, and an upper horizontal slatted grille permits partial air circulation and soft visibility without compromising personal screening. Integrated storage sits seamlessly along one segment of the work surface, with open upper cubbies positioned within easy arm’s reach and a lower closed cabinet unit aligned to the desk base for a streamlined, uncluttered visual profile. The workstation is built for durable daily commercial use. Its 25mm thick worktop is constructed from E1 grade melamine-faced engineered wood, finished with impact-resistant PVC/ABS edge banding to resist wear from regular contact. Support comes from powder-coated square steel tube legs, while the partition frame uses black powder-coated aluminum alloy extrusions for rigid, long-lasting structure. Storage components use 18mm melamine-faced engineered wood, with gray finished cabinet doors and white finished open cubby panels matched to the unit’s cohesive color scheme. Each support foot includes adjustable glides to correct uneven floor surfaces and keep the worktop stable and level. Practical features are integrated directly into the design to support everyday office tasks. The lower cabinet includes two hinged, key-locking doors to secure confidential documents and personal work supplies, while the two divided open upper cubbies hold frequently accessed stationery, files, and desk accessories to reduce worktop clutter. A cable management grommet positioned at the worktop corner routes power and data cords out of sight, and the modular design allows individual units to connect to matching workstations to form connected cubicle banks. This workstation is well suited for open-plan office staff work areas, small team department zones, startup and small to medium enterprise office fit-outs, shared service center workspaces, and temporary office project setups where reconfiguration may be needed as team sizes shift. Its standardized dimensions and built-in storage help maximize usable floor space while delivering consistent, private workstations for high-volume deployments. When planning procurement, note that the unit ships knockdown across multiple cartons, with on-site assembly required. The design supports modular clustering, so teams can scale installations incrementally by adding matching connected units as headcount grows. The product includes a 5-year warranty, and its locking storage, level adjustment, and cable management features remove the need for separate add-on accessories to create functional individual workstations.
