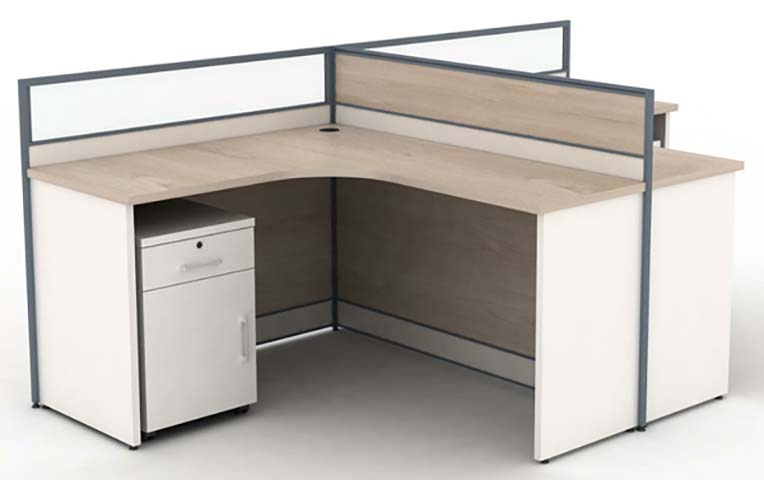

商品供应商L-Shaped Corner Office Cubicle Workstation Desk with Mobile Pedestal，E1 grade melamine-faced particleboard, 2mm ABS edge banding
可联系供应商获取生产周期与报价。
PRODUCT MODULE 01 / 06
基础物理尺寸
mm / 英寸自动双单位换算 · 工程采购基础规格
数据来源：工厂资料结构化字段，最终以实测值为准
| 产品外部尺寸（宽 × 深 × 高） | 1800 × 1800 × 1200 mm | |
|---|---|---|
| Overall footprint | 1800 x 1800 x 1200 mm | |
| Work surface height | 750 mm | |
| Work surface thickness | 25 mm | |
| Per-segment work surface depth | 800 mm | |
| Privacy divider height above desktop | 450 mm | |
| Divider panel thickness | 60 mm | |
| Curved knee clearance width | 900 mm | |
| Knee clearance height under work surface | 650 mm | |
| Cable grommet diameter | 60 mm | |
| Mobile pedestal dimensions | 400 x 550 x 600 mm | |
| Modesty panel height | 400 mm | |
| Frosted upper panel height | 200 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
重量、承重与性能参数
净重 / 最大承重 / 适用人数 / 耐久性能
数据来源：产品性能数据，采购前请核对具体测试口径
| Work surface static distributed load | 91 kg | |
|---|---|---|
| Drawer slide static load per drawer | 45 kg | |
| Mobile pedestal total static load | 100 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Leveler foot adjustment range | 15 mm | |
| Work surface scratch resistance rating | 2000 cycles | |
| Recommended seated user count | 1 | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
PRODUCT MODULE 03 / 06
材质与结构参数
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
数据来源：以工厂材质清单与验货报告为准
| Work surface | E1 grade melamine-faced particleboard, 2mm ABS edge banding | |
|---|---|---|
| Side support storage panels | 18mm melamine-faced particleboard, white finish | |
| Lower privacy divider panels | 16mm melamine-faced particleboard, light oak finish | |
| Upper divider panels | 5mm frosted translucent acrylic, diffused finish | |
| Divider frame | 1.2mm thick powder-coated dark gray aluminum | |
| Mobile pedestal body | 16mm melamine-faced particleboard, white finish, lockable aluminum handle | |
| Mobile pedestal casters | 50mm diameter hard plastic swivel casters, 2 lockable | |
| Adjustable leveler feet | Nylon base with steel threaded stem, black finish | |
| Cable grommet | 60mm diameter black HIPS plastic, removable cap | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel |
PRODUCT MODULE 04 / 06
功能与调节参数
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
数据来源：功能配置参数，以供应商正式规格为准
| Modular cluster configuration | Connects to adjacent matching workstations for multi-seat cubicle layouts | |
|---|---|---|
| Cable management | Desktop grommet routes power/data cords to under-desk space | |
| Lockable mobile storage | Lockable 3-drawer pedestal secures office supplies and files, rolls under desk | |
| Floor leveling adjustment | Threaded feet on all support bases compensate for uneven floor surfaces | |
| Partial visual privacy | Frosted upper and solid lower dividers block direct sightlines between workstations | |
| Ergonomic seated access | Curved front knee cutout provides unobstructed leg room for seated users | |
| Knock-down assembly | Modular flat-pack components allow on-site reconfiguration of cluster layouts | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
包装与物流参数
经核验的外箱 / 毛重 / 组装 / 装柜数据
数据来源：外贸报价与装柜测算参考
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
应用场景与使用方式
推荐空间 / 目标用户 / 使用方式
数据来源：依据产品结构与品类整理的推荐应用场景
| Open-plan office cubicle clusters | Suitable for dense open office layouts requiring individual visual privacy for staff | |
|---|---|---|
| Administrative staff workstations | Ergonomic desk height and storage support daily clerical and computer work | |
| Call center seating pods | Partial dividers reduce cross-talk distraction while allowing supervisor visibility | |
| Small business open offices | Compact L-shape maximizes corner floor space efficiency in small work areas | |
| Temporary project team workspaces | Knock-down construction allows easy reconfiguration as team needs change |
STANDARD S1
欧盟市场准入要求 * EN 标准
欧洲市场准入与化学品要求
| EN 527-1:2011 | Office work tables: safety and strength requirements | |
|---|---|---|
| EN 527-2:2016 | Office work tables: mechanical safety requirements | |
| EN 13986:2004 | Wood-based panels for construction: formaldehyde emission classes |
STANDARD S2
北美市场采购验货参考 * ANSI/BIFMA 标准
美国及加拿大家具标准
| ANSI/BIFMA X5.5-2021 | Desk products: safety and performance standard | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units: safety and performance | |
| ANSI/BIFMA e3-2019 | Furniture sustainability standard |
STANDARD S3
适用于中国市场项目的标准 * GB 标准
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden furniture for office use | |
|---|---|---|
| GB/T 3327-2016 | Office desks and tables | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels |
招标文件标准化描述文本
本产品须满足以下技术参数要求： 1. GB/T 3324-2017：General technical requirements for wooden furniture for office use； 2. GB/T 3327-2016：Office desks and tables； 3. GB 18580-2017：Formaldehyde emission limits for wood-based panels； 最终交付参数、检测报告和验收标准以双方采购合同为准。
