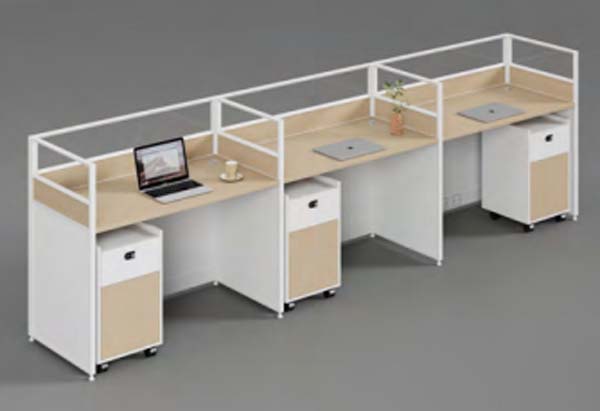

3-Person Linear Open Plan Office Cubicle Workstation with Mobile Pedestals Specifications

OFW-3P-LNR-001

代码:GL75W6V1
获取供应商报价
2026-09-01 17:36人气: 34
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

OFW-3P-LNR-001

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall assembled dimensions4200 x 1400 x 1200 mm
Individual work surface width per user1400 mm
Individual work surface depth700 mm
Fixed work surface height from floor750 mm
Upper partition/railing total height1200 mm
Under-desk knee clearance height650 mm
Knee clearance width per user1200 mm
Mobile pedestal dimensions400 x 500 x 600 mm
Cable grommet diameter80 mm
Steel frame tube thickness2.0 mm
Desk panel edge banding thickness2 mm
Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total product assembled weight220 kg
Static load capacity per work surface100 kg
Recommended users per workstation3 people
Surface scratch resistance rating2000 cycles
Standard product warranty3 years
Available color options60 colors
Caster rolling load per wheel25 kg
Reference Static Load150 kg depending on category
Moving-part Durability ReferenceAcceptance target 50000 cycles
Recommended Procurement WarrantyStructure 5 years; hardware 3 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Work surfaceE1 grade melamine-faced particleboard, light wood finish
Support frame and partition railing2.0mm cold-rolled steel, white powder-coated finish
Modesty and side panels18mm melamine-faced particleboard, white finish
Mobile pedestal body16mm melamine composite board, white and light beige accents
Desk edge protection2mm PVC/ABS edge banding, impact-resistant
Pedestal casters50mm hard nylon swivel casters, two with brake locks
Drawer hardwareZinc-plated steel drawer slides with integrated lock
Cable management portABS plastic grommet with brush insert, white finish
Leveling feetNylon base adjustable glides on frame legs
Primary Connector SpecificationReference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Modular linear connectionBolted puzzle-slot frame links 3 adjacent stations for fixed cluster layout
Cable routingRear frame cable tray and desk grommets route power/data cords off work surface
Mobile pedestal storage3-drawer rolling cabinets fit fully under each desk to save floor space
Privacy partitioningHalf-height modesty panels and upper open railing divide positions without blocking overhead light
Floor levelingAdjustable nylon feet on frame legs compensate for uneven office floors
Pedestal mobilitySwivel casters allow pedestals to be repositioned or accessed from seat side
Locking storageIntegrated key lock on each pedestal secures personal office supplies
Surface performanceMelamine work surface resists water, stains, and daily office wear
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Largest shipping carton dimensions1450 x 750 x 120 mm
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Packaging Volume0.8 m³/set
Reference Packaged Gross Weight120 kg/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open plan office areasLinear cluster fits 3 staff in compact open floor plans with shared infrastructure
Call center and admin departmentsDivided positions support focused task work for back-office and customer service teams
Startup and co-working spacesNeutral light wood/white finish matches flexible modern office interior schemes
Temporary project teamsModular construction allows reconfiguration as team headcount changes
Small business office fit-outsAll-inclusive set with desks, dividers and storage reduces specification work for small projects
Ergonomic seated workStandard 750mm desk height pairs with standard adjustable office chairs for healthy posture
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office work tables, safety and strength requirements for desk structural validation
EN 527-2:2016Office work tables, dimensional and ergonomic requirements for seated work positions
EN 13722:2004Office furniture storage units, performance requirements for mobile pedestals
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk Products standard, applicable to desk load, stability and durability testing
ANSI/BIFMA X5.9-2019Storage Units standard, applicable to mobile pedestal performance validation
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to desk panel components
GB/T 3327-2016Performance requirements for office desks and tables, applicable to work surface testing
GB 18580-2017Formaldehyde emission limits for wood-based panels, applicable to E1 grade board verification
GB/T 10357.1-2013Furniture mechanical test for tables, applicable to static load and stability testing
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to desk panel components;
2. GB/T 3327-2016:Performance requirements for office desks and tables, applicable to work surface testing;
3. GB 18580-2017:Formaldehyde emission limits for wood-based panels, applicable to E1 grade board verification;
4. GB/T 10357.1-2013:Furniture mechanical test for tables, applicable to static load and stability testing;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · OFW-3P-LNR-001

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · OFW-3P-LNR-001

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · OFW-3P-LNR-001打开导出工具

页面快速操作

发布采购询价

产品描述

The 3-Person Linear Open Plan Office Cubicle Workstation with Mobile Pedestals (model OFW-3P-LNR-001, unbranded) is a purpose-built open-plan desk cluster designed for balanced collaborative access and individual focus. Its linear layout arranges three adjacent workstations in a continuous, streamlined formation, anchored by half-height modesty panels and an open upper railing that defines personal work zones without blocking overhead ambient light. The light wood worktop paired with white finished panels and white powder-coated steel framing creates a neutral, modern visual profile that aligns with a wide range of contemporary interior design schemes. Constructed for lasting regular use, the workstation features E1 grade melamine-faced particleboard work surfaces with 2mm impact-resistant PVC/ABS edge banding, rated to withstand 2000 cycles of surface scratching. The 2.0mm cold-rolled steel support frame is finished with durable white powder coating, while modesty and side panels use 18mm white melamine-faced particleboard. Each position includes a castered mobile pedestal built from 16mm melamine composite board with white and light beige accents, fitted with 50mm hard nylon swivel casters (two with brake locks) and zinc-plated steel drawer slides with an integrated key lock. Frame legs are fitted with nylon base adjustable glides to compensate for uneven floors, and each work surface supports a 100kg static load, with caster wheels rated for 25kg rolling load each. Practical features are integrated throughout the design: a bolted puzzle-slot frame creates a stable fixed cluster that retains modular reconfiguration flexibility, while rear frame cable trays and white ABS cable grommets with brush inserts route power and data cords clear of work surfaces. The three-drawer mobile pedestals fit fully under each desk to conserve floor space, and can be repositioned or accessed directly from the seated position thanks to swivel casters, with integrated locks to secure personal supplies. The 750mm fixed work surface height aligns with standard adjustable office chairs to support ergonomic seated posture, with 650mm of under-desk knee clearance and 1200mm of knee clearance width per user. This workstation is well suited for open plan office areas that need to accommodate three staff in a compact footprint, as well as call center and administrative departments where divided positions support focused task work. It also fits startup and co-working spaces with flexible design needs, temporary project teams that require adaptable layout options, and small business office fit-outs where the all-inclusive desk, divider, and storage set simplifies specification planning. For procurement, note the product offers 60 available color options to match existing interior palettes, ships in 2 cartons per set with a 40-minute reference assembly time per unit, and is covered by a 3-year standard warranty. The fully assembled unit reaches a total weight of 220kg, so installation teams should plan for appropriate handling support during setup.
