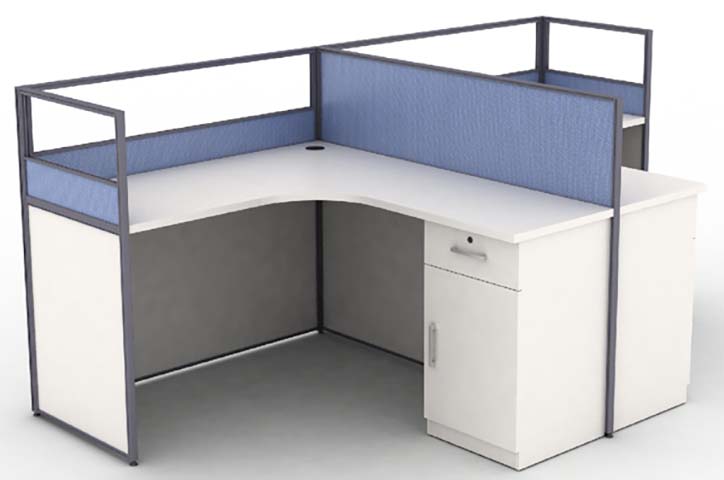

Two-Seat L-Shaped Corner Office Cubicle Workstation with Blue Fabric Partitions and Integrated Lockable Storage Pedestals Specifications

CUB-L1400-2S-BFP

代码:HXPBBXV1
获取供应商报价
2026-08-21 16:02人气: 36
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

CUB-L1400-2S-BFP

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall workstation footprint2800 x 1400 x 1200 mm
Work surface height750 mm
Single L-segment worktop length1400 mm
Worktop thickness25 mm
Partition height above floor1200 mm
Partition frame profile width40 mm
Knee clearance height under worktop650 mm
Knee clearance width at curved cutout700 mm
Integrated pedestal unit dimensions440 x 600 x 690 mm
Modesty panel height under left worktop600 mm
Cable grommet diameter60 mm
Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total workstation net weight180 kg
Desktop uniform static load capacity91 kg
Recommended user weight per seat136 kg
Surface abrasion resistance rating2000 cycles
Leveler foot vertical adjustment range15 mm
Recommended service life10 years
Reference Static Load150 kg depending on category
Moving-part Durability ReferenceAcceptance target 50000 cycles
Recommended Procurement WarrantyStructure 5 years; hardware 3 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Worktop coreE1 grade melamine-faced particleboard
Worktop finishThermally fused scratch-resistant melamine veneer
Partition framePowder-coated dark gray steel profile
Privacy panel facingWoven blue fabric over hardboard backing
Storage cabinet bodyMelamine-laminated particleboard with white finish
Modesty panelSolid gray laminate hardboard
Drawer hardwareFull-extension ball-bearing steel slides
Leveler feetNylon-tipped steel adjustable glides
Cable grommetABS plastic round wire port
Primary Connector SpecificationReference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seated visual privacy partition1200mm tall blue fabric screen blocks direct sightline between adjacent workers
Integrated under-desk storageFixed pedestal with 1 lockable upper drawer and lower hinged door cabinet
Desktop cable managementCorner round grommet routes power and data cables from surface to under-desk space
Leveler foot adjustment15mm vertical adjustment per foot compensates for uneven office flooring
Ergonomic curved knee accessConcave front worktop cutout provides 700mm wide seated entry for office chairs
Drawer locking mechanismKeyed lock secures upper drawer for personal item storage
Modular connection systemSteel frame connectors support L-shaped corner layout configuration
Solid modesty panelFull-height under-desk panel blocks view of user legs from outside cubicle
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Packaging Volume0.8 m³/set
Reference Packaged Gross Weight120 kg/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open plan office work zonesTwo-seat cubicle provides semi-private workspaces for staff in open offices
Small business administrative officesCompact L-shaped footprint fits 2 workers in limited floor space
Call center and customer service floorsSeated-height partitions reduce visual distraction during extended screen work
Government and corporate back-office areasDurable commercial construction meets daily heavy use requirements
Temporary project team work areasModular frame allows reconfiguration as team sizes change
Startup and co-working shared spacesNeutral white and blue finish matches flexible modern office interiors
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Office furniture ergonomic standardEN 527:2011
Office furniture surface durabilityEN 14372:2004
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

北美市场选型与验收ANSI/BIFMA X5.5 办公桌及桌类产品
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Office desk dimensional standardGB/T 3326
Furniture environmental standardGB 18584
Metal furniture coating standardGB/T 3323
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. Office desk dimensional standard:GB/T 3326;
2. Furniture environmental standard:GB 18584;
3. Metal furniture coating standard:GB/T 3323;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · CUB-L1400-2S-BFP

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · CUB-L1400-2S-BFP

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CUB-L1400-2S-BFP打开导出工具

页面快速操作

发布采购询价

产品描述

The two-seat L-shaped corner office cubicle workstation is a functional, space-efficient partial-height work unit designed to balance shared accessibility and individual privacy for seated work. Its L-form layout positions two connected work segments at a right angle, with 1200mm tall blue woven fabric privacy panels mounted on a dark gray powder-coated steel frame, creating a soft visual barrier between adjacent work positions without fully enclosing the space. The workstation features clean, understated finishes, with white melamine storage components, gray modesty panels, and dark gray framing paired with cool blue partition panels to complement modern flexible interior schemes. Construction relies on durable commercial-grade materials: worktops and storage bodies use E1 grade melamine-faced particleboard, topped with a thermally fused scratch-resistant melamine veneer for daily use resilience. The supporting frame is powder-coated steel, with nylon-tipped steel adjustable leveler feet to accommodate uneven flooring. Fabric privacy panels are fitted over hardboard backing, while the lockable under-desk pedestal operates on full-extension ball-bearing steel drawer slides, and desktop cable routing uses round ABS plastic grommets. Core practical functions support focused, organized work: the partial-height fabric partitions block direct cross-sightlines between users to reduce visual distraction during extended screen tasks. Each unit integrates a fixed under-desk storage pedestal with a key-locking upper drawer for personal item security and a lower hinged-door cabinet for shared or bulk supplies. A corner cable grommet neatly routes power and data cords from the work surface to under-desk wiring channels, and a concave curved cutout at each work position provides ergonomic seated entry for standard office chairs. The modular steel frame connection system supports easy reconfiguration to adapt to shifting team needs. This workstation is well suited for a range of commercial spaces, including open-plan office work zones, small business administrative offices with limited floor area, call center and customer service floors, corporate and government back-office departments, temporary project team work areas, and startup or co-working shared spaces. For procurement, note that each unit ships in two cartons, with an 40-minute per-set assembly time. Buyers should confirm floor load compatibility, plan for assembly coordination, and account for the fixed L-shaped footprint when allocating floor space to ensure alignment with facility layout plans.
