Name: L-Shaped Corner Office Cubicle Workstation with Frosted Glass Privacy Screens and Mobile File Pedestal
Brand: aibi furniture
SKU: JU0CTG

纠错时间

修改字段

原参数

修改后参数

说明 / 状态

暂无参数纠错记录，发现错误可点击行末旗标提交

PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	1500 × 1500 × 1200 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Desktop uniform static load capacity	80 kg
Drawer slide cycle durability	50000 open/close cycles
Formaldehyde emission level	0.124 mg/m³
Unit net weight reference	90 kg
Color option count	4
Product warranty period	5 years
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Work surface panels	25mm E1 grade melamine-faced particleboard, scratch-resistant matte finish
Partition frames	1.5mm wall thickness powder-coated aluminum alloy
Upper partition panels	5mm frosted semi-transparent tempered glass, anti-glare 50% light transmittance
Mid partition infill panels	Fabric-wrapped 0.8mm cold-rolled steel panels, sound-dampening
Desk support panels	18mm E1 grade melamine particleboard with 2mm rounded PVC edge banding
Mobile pedestal body	18mm E1 grade melamine particleboard with matching white finish, 4 swivel casters
Drawer hardware	Three-section silent steel ball-bearing slides, central 3-point lock system
Leveling feet	Adjustable injection-molded nylon feet with 10mm height adjustment range
Underside modesty panel	16mm dark grey melamine particleboard, mounted below work surface
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Cable management system	60mm corner desktop grommet plus under-screen cable tray, 300mm separation for power/data lines
Mobile pedestal storage	Top utility drawer plus lower filing compartment secured by single central lock
Modular screen connection	Pre-drilled frame connectors allow joining to adjacent matching workstations for multi-seat layouts
Floor leveling adjustment	Turnable nylon feet compensate for uneven floors with 10mm vertical adjustment
Privacy screen function	1200mm total height blocks direct line of sight between seated adjacent workers while allowing overhead light transmission
Drawer operation	Soft-closing ball-bearing slides extend fully for complete access to stored contents
Configuration customization	Screen panels can be swapped for full fabric, full steel or full glass options to match office design
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Open plan office staff work areas	Modular design creates defined individual workspaces for administrative, clerical and operational staff
Corporate departmental work zones	Connectable units can be grouped into team clusters for finance, HR, operations or customer service teams
Startup and co-working flexible spaces	Reconfigurable screens allow rapid layout changes as team size and seating needs evolve
Government and institutional offices	Meets standard procurement specifications for public sector office furniture fit-outs
Call center and shared service centers	1200mm screen height balances privacy for focused phone work and visibility for team supervision

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011	Office work tables safety and strength requirements, applicable to desk static load and stability testing
EN 1335-1:2020	Office furniture work surface dimensional ergonomics, applicable to knee clearance and work height validation
EN 1022:2018	Furniture seating and table stability test methods, applicable to workstation anti-tip assessment

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021	Desk products performance standard, applicable to desk load, durability and stability testing
ANSI/BIFMA X5.9-2019	Storage units performance standard, applicable to mobile pedestal load and slide cycle testing

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB 18580-2017	Formaldehyde emission limits for wood-based panels used in interior decoration, applicable to all engineered wood components
GB/T 3324-2017	General technical requirements for wooden furniture, applicable to structural performance and finish durability
GB 20286-2006	Flame retardant requirements for public seating and office furniture, B1 grade flame spread rating recommended for panel components

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB 18580-2017：Formaldehyde emission limits for wood-based panels used in interior decoration, applicable to all engineered wood components；
2. GB/T 3324-2017：General technical requirements for wooden furniture, applicable to structural performance and finish durability；
3. GB 20286-2006：Flame retardant requirements for public seating and office furniture, B1 grade flame spread rating recommended for panel components；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · L-CUB-1515-WG

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · L-CUB-1515-WG

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · L-CUB-1515-WG打开导出工具

页面快速操作

发布采购询价

产品描述

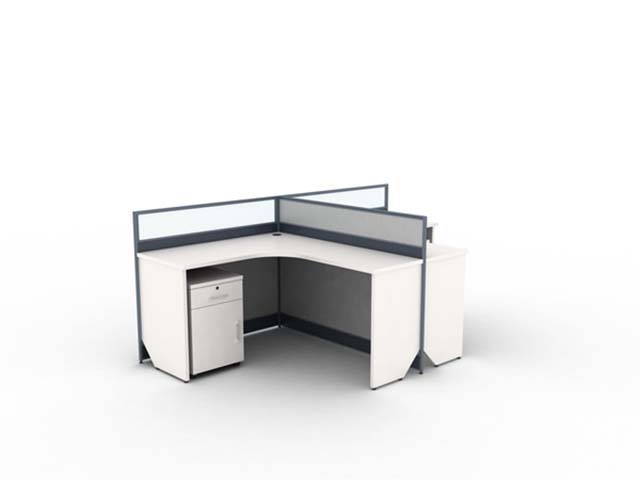

The L-CUB-1515-WG L-shaped corner office cubicle workstation from aibi furniture delivers a balanced blend of personal privacy and open-office connectivity, built to support long-term daily use across diverse work environments. Its clean, structured layout pairs a generous corner work surface with 1200mm tall partition screens that block direct line of sight between seated adjacent workers, while 5mm frosted semi-transparent tempered glass upper panels with anti-glare 50% light transmittance allow overhead light to filter through, reducing the closed-in feel of traditional high-walled cubicles. Mid-partition sections use fabric-wrapped cold-rolled steel panels to dampen cross-station sound, framed by 1.5mm thick powder-coated aluminum alloy for consistent structural alignment across connected units. Primary work surfaces use 25mm E1 grade melamine-faced particleboard with a scratch-resistant matte finish, supported by 18mm E1 grade melamine particleboard panels finished with 2mm rounded PVC edge banding, plus a 16mm dark grey melamine modesty panel mounted beneath the desk to conceal under-desk items and wiring. All structural load-bearing components meet a 40mm thickness specification, with 5mm operating clearance for all moving hardware parts. The 25mm work surface supports 80kg of uniform static load, with an overall category reference static load of 150kg. An integrated cable management system features a 60mm corner desktop grommet and under-screen cable tray with 300mm separation between power and data line pathways to reduce cord clutter and interference. The included mobile file pedestal sits on four swivel casters, with a top utility drawer and lower filing compartment secured by a central 3-point lock, running on three-section silent soft-closing steel ball-bearing slides rated for 50,000 open/close cycles that extend fully for unobstructed access to stored contents. Adjustable injection-molded nylon leveling feet provide 10mm of vertical adjustment to compensate for uneven flooring, and pre-drilled frame connectors allow seamless joining to matching units for multi-seat layouts. Screen panels can be swapped for full fabric, full steel, or full glass configurations to align with varying office design schemes, with four total color options available to match existing interior palettes. The workstation has a measured formaldehyde emission level of 0.124 mg/m³, carries a 5-year product warranty, and ships as one set across two cartons with a packaged gross weight of 120kg and packaging volume of 0.8 cubic meters, requiring 40 minutes of assembly per unit. This model is suited for open-plan office staff work areas, where it creates defined individual workspaces for administrative, clerical, and operational staff. Its connectable modular design supports grouped team clusters for corporate finance, HR, operations, and customer service departments, while reconfigurable panels suit rapidly changing startup and co-working spaces where seating needs shift with team size. It also aligns with standard public sector procurement specifications for government and institutional office fit-outs, and its screen height strikes a functional balance between privacy for focused call center work and visibility for team supervision. For procurement planning, teams should account for the 90kg unit net weight, modular joinery requirements for multi-station layouts, and panel customization options to align with long-term space flexibility needs.

L-Shaped Corner Office Cubicle Workstation with Frosted Glass Privacy Screens and Mobile File Pedestal Specifications
