6-Person Cross-Shaped Modular Office Cubicle Workstation Cluster Specifications

CUB-6P-CROSS-001

代码:KH716YV1
获取供应商报价
2026-09-03 18:13人气: 26
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

CUB-6P-CROSS-001

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall cluster dimensions3600 x 2400 x 1200 mm
Per-seat curved work surface dimensions1200 x 600 x 25 mm
Fixed work surface height750 mm
Privacy partition overall height1200 mm
Partition panel thickness83 mm
Per-station under-desk 3-drawer pedestal dimensions430 x 500 x 730 mm
Seated knee clearance height under worksurface700 mm
Knee well opening width per station600 mm
PVC edge banding thickness2 mm
Aluminum partition frame profile thickness1.2 mm
Frosted upper divider panel height500 mm
Solid navy lower divider panel height700 mm
Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total set net weight320 kg
Per-workstation static load capacity150 kg
Total workstation user capacity6 people
Worksurface surface abrasion resistance2000 cycles
Product warranty for normal commercial use3 years
Available standard color options30 variants
Reference Static Load150 kg depending on category
Moving-part Durability ReferenceAcceptance target 50000 cycles
Recommended Procurement WarrantyStructure 5 years; hardware 3 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Worksurface substrate25mm thick E1 grade melamine-faced particle board
Worksurface edge treatment2mm thick heat-resistant PVC edge banding
Upper privacy panel5mm thick frosted semi-transparent acrylic/glass panel
Lower privacy panelNavy blue fabric-wrapped tackable fiberboard panel
Partition frame structure1.2mm thick powder-coated black aluminum alloy extrusion
Support leg and underframe1.5mm thick powder-coated steel tubing
Pedestal cabinet construction18mm thick melamine-faced particle board with matching navy drawer fronts
Drawer hardwareCold-rolled steel drawer slides with integrated keyed locks
Desk leveling feetNylon-padded adjustable steel glides
Cable management grommetsABS plastic circular desk grommets
Primary Connector SpecificationReference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Modular connection systemInterlocking aluminum junction posts at central cluster corners
Pedestal drawer function3 lockable drawers per station including 1 filing drawer and 2 supply drawers
Cable routing functionRecessed desk grommets feed power/data cables from worksurface to under-desk channels
Privacy divider functionSplit frosted/solid panels block direct line of sight between seated users
Floor leveling adjustmentThreaded steel glides adjust up to 15mm to compensate for uneven floors
Knock-down assembly designAll components ship flat for efficient transport and on-site assembly
Tackable panel functionFabric lower divider surface supports pinned documents, notes and notices
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Packaging Volume0.8 m³/set
Reference Packaged Gross Weight120 kg/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open-plan office staff zonesDense clustered layout fits 6 staff in minimal floor space for general admin, finance and operations teams
Call center and shared service work areasPartial privacy dividers reduce visual distraction between adjacent agents during phone and screen-based tasks
Startup and co-working flexible spacesModular design supports future reconfiguration as team size and layout needs change
Training and temporary project team spacesKnock-down design allows disassembly and relocation to different floor areas as project teams form and disband
Small business open office layoutsAll-in-one cluster includes worksurfaces, partitions and storage for plug-and-play office setup
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office worktables safety and strength requirements
EN 1335-1:2020Office work chair dimensions for seated clearance coordination
EN 1023-1:2019Office storage furniture safety requirements
EN 13986:2004+A1:2015Wood-based panels for furniture formaldehyde emission limits
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk products performance and safety standard
ANSI/BIFMA X5.9-2019Storage units performance standard
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden office furniture
GB/T 3327-2017Performance requirements for office desks and workstations
GB 18580-2017Formaldehyde emission limits for wood-based panels
GB/T 4897.3-2008Performance requirements for particle board for furniture use
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden office furniture;
2. GB/T 3327-2017:Performance requirements for office desks and workstations;
3. GB 18580-2017:Formaldehyde emission limits for wood-based panels;
4. GB/T 4897.3-2008:Performance requirements for particle board for furniture use;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · CUB-6P-CROSS-001

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · CUB-6P-CROSS-001

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CUB-6P-CROSS-001打开导出工具

页面快速操作

发布采购询价

产品描述

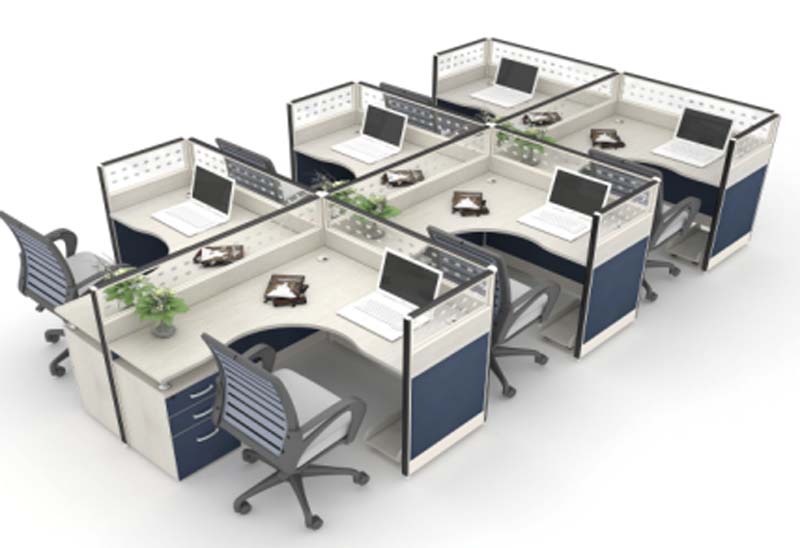

The 6-Person Cross-Shaped Modular Office Cubicle Workstation Cluster (model CUB-6P-CROSS-001) is an unbranded modular office furniture solution designed for efficient shared work environments. Its signature cross-shaped layout arranges six individual workstations around a central interlocking aluminum junction, with each station featuring a curved ergonomic work corner that creates a cohesive, space-efficient footprint. The cluster’s privacy dividers stand at full partition height, combining frosted semi-transparent upper panels set in powder-coated black aluminum frames with navy fabric-wrapped lower panels, balancing visual separation between seated users with subtle ambient light transmission. Each work surface uses 25mm thick E1 grade melamine-faced particle board finished with heat-resistant PVC edge banding, supported by a sturdy powder-coated steel tubing underframe. Nylon-padded adjustable steel glides at the base of each support leg compensate for uneven floors, while per-station under-desk pedestals are constructed from matching melamine-faced particle board with navy drawer fronts, fitted with cold-rolled steel slides and integrated keyed locks. Built for practical daily use, each station includes three lockable drawers—one filing drawer and two supply drawers—for secure personal and document storage. Recessed desk grommets route power and data cables from the work surface to concealed under-desk channels to reduce cord clutter, while the fabric-covered lower divider panels provide a tackable surface for pinned notes, documents and notices. The split privacy panels block direct line of sight between adjacent seated users to cut down on visual distractions, and the interlocking modular connection system supports straightforward future reconfiguration. The workstation cluster ships flat in knock-down form for efficient transport, with on-site assembly taking minimal time per set. This configuration is well suited for open-plan office staff zones housing general admin, finance and operations teams, as it seats six users within a compact floor footprint. It also fits call center and shared service work areas, where partial privacy reduces disruption during phone and screen-based tasks, as well as startup and co-working spaces that require flexible layouts adaptable to shifting team sizes. Its disassembly-friendly design makes it a strong fit for temporary project team spaces and training areas that need to be repositioned as needs change, while its all-in-one design supporting plug-and-play setup works effectively for small business open office layouts. For procurement, teams can select from 30 standard color variants to align with existing interior design schemes. The product carries a 3-year warranty for normal commercial use, supports a static load per workstation, and includes integrated storage, partitions and work surfaces to reduce the need for separate add-on furniture purchases. The adjustable glides and modular construction support long-term use across evolving space needs, making it a versatile choice for organizations prioritizing space efficiency and functional flexibility.
