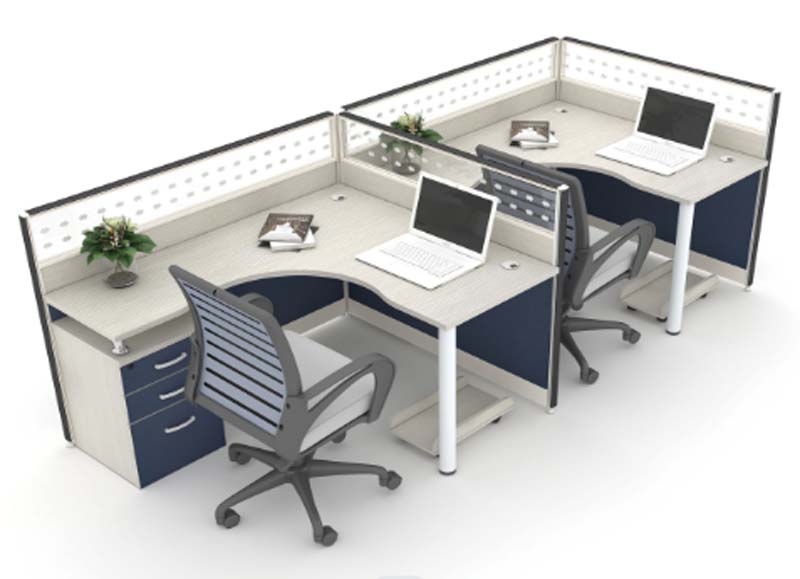

2-Person Back-to-Back L-Shaped Cubicle Office Workstation with Partitions and Storage Specifications

WS-2L-CURV-NAVY-LW

代码:L39XA3V1
获取供应商报价
2026-09-04 09:59人气: 14
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

WS-2L-CURV-NAVY-LW

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall workstation dimensions3000 x 2800 x 1200 mm
Per-station L-shaped work surface size1500 x 1200 x 25 mm
Standard work surface height750 mm
Total privacy partition height1200 mm
Upper translucent partition section height300 mm
Under-desk knee clearance height680 mm
Integrated 3-drawer pedestal dimensions400 x 500 x 650 mm
Under-desk CPU shelf dimensions300 x 500 x 150 mm
Cable grommet diameter60 mm
Support leg diameter60 mm
Curved front work edge radius600 mm
Office chair seat height450 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Per work surface static load capacity150 kg
Recommended maximum user weight per chair120 kg
Work surface finish abrasion resistance2000 cycles
Chair caster rolling durability50000 cycles
Pedestal drawer slide cycle rating50000 cycles
Total workstation net weight125 kg
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
Top Abrasion ReferenceAcceptance target ≥4,000 abrasion cycles or finish-system test
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Work surface25mm thick melamine-faced MFC board
Edge banding2mm thick PVC edging on all work surface edges
Support frame and legs1.2mm thick powder-coated steel cylindrical legs
Lower privacy panelFabric-wrapped 18mm MDF board in navy blue finish
Upper privacy partitionPerforated metal frame with frosted translucent acrylic insert
Drawer pedestal body18mm thick melamine-faced MDF matching work surface finish
Chair frame and baseGlass-filled nylon five-star base and armrest frame
Chair upholsteryBreathable mesh backrest, 40mm density foam padded seat
Chair casters50mm diameter hard floor nylon casters
Hardware componentsZinc-plated steel cam locks and connector bolts
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Cable managementTwo 60mm diameter cable grommets per work surface
Integrated storageThree lockable drawers per workstation at the return end
CPU storageRolling under-desk shelf per station for desktop computer towers
Privacy separation1200mm tall partitions block cross-desk line of sight
Chair adjustability360-degree swivel, 100mm gas lift height adjustment
Chair movementSmooth-rolling casters for repositioning on hard office floors
Modular assemblyPanel-mounted metal connectors allow future layout reconfiguration
Knee clearance accessOpen unobstructed 680mm high leg opening per seat position
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open plan office spacesIdeal for small team work zones providing individual privacy without full wall separation
Call center and administrative work areasDual work positions support high-density seated staff deployment
Small business and startup officesAll-in-one set includes work surfaces, partitions and storage for fast space setup
Back office and administrative departmentsDurable construction suited for daily 8-hour commercial office use
Shared hot-desking environmentsModular design supports easy reconfiguration as team size changes
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office work tables safety and strength requirements, applicable to work surface and frame performance
EN 1335-1:2020Office work chairs dimensional and safety requirements, applicable to included task chair design
EN 14073-2:2004Office storage furniture safety requirements, applicable to integrated drawer pedestal units
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017Office chair safety and durability standard, recommended for task chair performance verification
ANSI/BIFMA X5.5-2021Desk products performance standard, recommended for work surface load and stability verification
ANSI/BIFMA X5.9-2019Office storage units performance standard, recommended for drawer pedestal durability verification
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden office furniture, applicable to work surfaces and storage pedestals
GB/T 3326-2016Desk, chair and bench dimensional standards, applicable to ergonomic work surface clearance heights
GB 18584-2001Indoor decoration material limit of formaldehyde emission for wood furniture, required for indoor office use
GB/T 10357.1-2013Furniture mechanical performance test for tables, applicable to work surface load rating verification
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden office furniture, applicable to work surfaces and storage pedestals;
2. GB/T 3326-2016:Desk, chair and bench dimensional standards, applicable to ergonomic work surface clearance heights;
3. GB 18584-2001:Indoor decoration material limit of formaldehyde emission for wood furniture, required for indoor office use;
4. GB/T 10357.1-2013:Furniture mechanical performance test for tables, applicable to work surface load rating verification;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · WS-2L-CURV-NAVY-LW

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · WS-2L-CURV-NAVY-LW

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · WS-2L-CURV-NAVY-LW打开导出工具

页面快速操作

发布采购询价

产品描述

The 2-Person Back-to-Back L-Shaped Cubicle Office Workstation with Partitions and Storage is a modular commercial office furniture solution designed to balance individual privacy and collaborative workspace efficiency. Its back-to-back L-shaped layout creates two distinct, dedicated work positions facing opposite directions, with the entire unit measuring 3000 x 2800 x 1200 mm. Privacy partitions stand 1200 mm tall, with a 300 mm frosted translucent acrylic upper section set in a perforated metal frame that blocks direct cross-desk line of sight while allowing diffused light to pass through; the lower partition sections are wrapped in navy blue fabric for a soft, professional visual finish. Each L-shaped work surface measures 1500 x 1200 mm at a standard 750 mm work height, with 680 mm of under-desk knee clearance for comfortable seated use. Work surfaces are constructed from 25 mm thick melamine-faced engineered wood, finished with 2 mm PVC edge banding on all exposed edges to resist impact damage, and supported by 1.2 mm thick powder-coated steel cylindrical legs for stable structural support. The workstation delivers practical, user-centric functions tailored to daily office use. Each station is fitted with two 60 mm diameter cable grommets to route power and data cords neatly off work surfaces, paired with a rolling under-desk CPU shelf sized to hold standard desktop computer towers. An integrated 3-drawer lockable pedestal is positioned at the return end of each work surface for secured personal or work document storage. The set includes matching office chairs with breathable mesh backrests, 40 mm density foam padded seats, glass-filled nylon five-star bases, and smooth-rolling 50 mm nylon casters suited for hard office floors; chairs support 360-degree swivel and 100 mm gas lift height adjustment for customized user positioning. Work surfaces support 150 kg of uniformly distributed static load, while chair components are rated for a maximum 120 kg user weight, with durable performance ratings for surface abrasion resistance, caster rolling, and drawer slide operation suitable for regular commercial use. This workstation is ideal for open-plan office small team zones, call center and administrative work areas supporting high-density seated staff, small business and startup offices requiring fast, all-in-one space setup, back office departments with daily 8-hour use, and shared hot-desking environments that need flexible layout adjustments. For procurement, note the unit ships in multiple cartons with a total packaged gross weight of 180 kg per set, requires 40 minutes of assembly time per set, and uses panel-mounted metal connectors that allow future reconfiguration to adapt to changing team needs. The all-inclusive set removes the need to source separate work surfaces, partitions, storage, and seating for two-person work zones.
