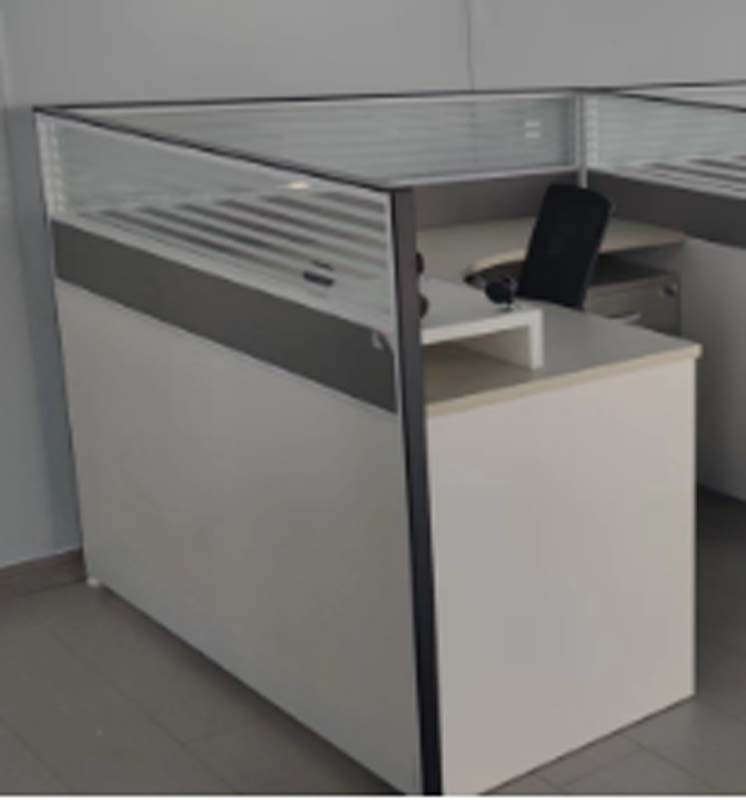

商品供应商L-Shaped Modular Open-Plan Office Cubicle Workstation,Particle‑board (PB)
可联系供应商获取生产周期与报价。
| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
暂无参数纠错记录,发现错误可点击行末旗标提交 | ||||
mm / 英寸自动双单位换算 · 工程采购基础规格
| Primary Component Thickness | 40 mm according to load-bearing role | |
|---|---|---|
| Hardware / Moving-part Clearance | 5 mm operating clearance |
净重 / 最大承重 / 适用人数 / 耐久性能
| Work surface uniform static load capacity | 80 kg | |
|---|---|---|
| Drawer slide open/close cycle rating | 50000 cycles | |
| Melamine surface scratch resistance | 3H | |
| Formaldehyde emission limit | 0.124 mg/m³ | |
| Single station net weight | 60 kg | |
| Standard structural warranty | 5 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Work surface | 25mm E1 grade melamine laminated particleboard | |
|---|---|---|
| Work surface edging | 2mm rounded PVC edge banding | |
| Upper partition panel | 5mm ribbed frosted tempered glass | |
| Lower partition panel | 18mm E1 grade melamine particleboard | |
| Partition frame | Powder-coated dark grey aluminum alloy | |
| Partition base raceway | Steel channel with integrated cable routing cutouts | |
| Drawer slides | 3-section full-extension silent ball-bearing steel slides | |
| Structural support brackets | 1.5mm thick powder-coated steel connectors | |
| Support feet | Adjustable nylon leveling feet | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Modular interconnection | Interlocking metal connectors support 8person banked layouts | |
|---|---|---|
| Cable management | Base partition raceways and pre-drilled desk grommets route power/data cables | |
| Drawer storage | 3-drawer pedestal with central keyed lock secures office supplies | |
| Privacy screening | 1200mm 3/4 height partitions block seated cross-line of sight | |
| Leveling adjustment | 15mm height adjustment range on support feet stabilize unit on uneven floors | |
| Surface resistance | Melamine finish resists water, stains and scuffs from daily office use | |
| Work surface accessory fit | Standard monitor arms, keyboard trays and CPU holders mount via pre-drilled points | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
推荐空间 / 目标用户 / 使用方式
| Open-plan corporate office zones | Modular banked configuration creates dedicated private workspaces in high-density offices | |
|---|---|---|
| Government and institutional staff areas | Durable commercial construction meets public sector procurement durability requirements | |
| Call center and shared service centers | Seated privacy partitions reduce visual distraction for focused task work | |
| Startup and co-working flexible spaces | Reconfigurable modular design adapts to changing team sizes and layout needs | |
| Administrative back-office departments | Integrated lockable storage secures documents and personal work items securely |
欧洲市场准入与化学品要求
| EN 527-1:2011 | Office worktables dimensional, safety and strength requirements for commercial workstations | |
|---|---|---|
| EN 527-2:2016 | Office worktables mechanical safety, stability and durability test methods | |
| EN 13986:2004+A1:2015 | Wood-based panels performance requirements for use in furniture construction | |
| EN 12600:2002 | Tempered glass pendulum impact resistance classification for partition glazing |
美国及加拿大家具标准
| ANSI/BIFMA X5.5-2021 | Office desk static load, stability and durability performance requirements | |
|---|---|---|
| ANSI/BIFMA X5.6-2021 | Office panel systems partition strength, stability and modular connection requirements | |
| ANSI/BIFMA X5.9-2019 | Storage pedestals and drawer unit load and cycle durability requirements | |
| ANSI/BIFMA e3-2019 | Furniture sustainability criteria for material emissions and recyclability |
适用于中国市场项目的标准
| GB 18580-2017 | Formaldehyde emission limit ≤0.124mg/m³ for wood-based panels used in indoor office furniture | |
|---|---|---|
| GB/T 3324-2017 | General technical requirements for wooden office furniture dimensional stability and durability | |
| GB/T 3327-2016 | Performance and test methods for office desks and workstations for commercial use | |
| GB 6566-2010 | Radionuclide limit requirements for building and furniture materials used in occupied spaces |
本产品须满足以下技术参数要求: 1. GB 18580-2017:Formaldehyde emission limit ≤0.124mg/m³ for wood-based panels used in indoor office furniture; 2. GB/T 3324-2017:General technical requirements for wooden office furniture dimensional stability and durability; 3. GB/T 3327-2016:Performance and test methods for office desks and workstations for commercial use; 4. GB 6566-2010:Radionuclide limit requirements for building and furniture materials used in occupied spaces; 最终交付参数、检测报告和验收标准以双方采购合同为准。
