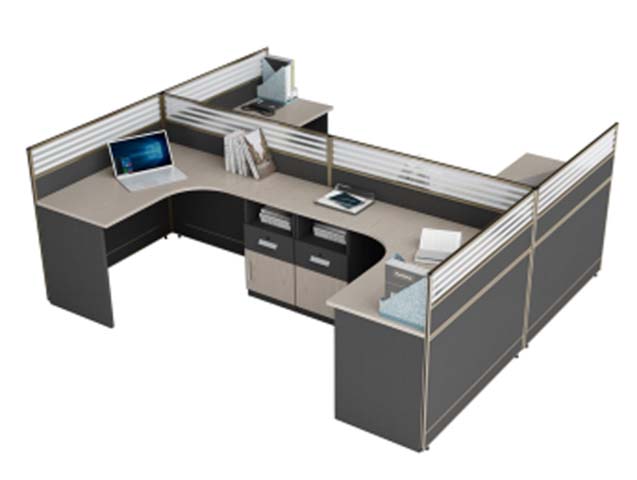

3-Person L-Shaped Modular Office Cubicle Workstation with Central Storage Specifications

CUB-L3-2824-TCH

代码:MAJ3ZEV1
获取供应商报价
2026-08-13 16:58人气: 67
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

CUB-L3-2824-TCH

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall unit dimensions2800 x 2400 x 1200 mm
Work surface height from floor760 mm
Individual work surface depth600 mm
Privacy partition total height1200 mm
Central storage unit dimensions800 x 550 x 725 mm
Desktop panel thickness25 mm
Seated knee clearance height under desktop700 mm
Curved knee opening radius300 mm
PVC edge banding thickness2 mm
End return work surface width600 mm
Slatted partition upper translucent slat gap15 mm
Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Uniform desktop static load capacity80 kg
Drawer slide cycle life50000 operations
Total unit gross weight125 kg
Maximum supported user count3 people
Surface abrasion resistance2000 cycles
Product warranty period5 years
Reference Static Load150 kg depending on category
Moving-part Durability ReferenceAcceptance target 50000 cycles
Recommended Procurement WarrantyStructure 5 years; hardware 3 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Work surface panel25mm E1-grade melamine-faced MFC with light taupe finish
Lower modesty and cabinet panels18mm dark charcoal melamine-faced MFC
Privacy partition framePowder-coated aluminum alloy with metallic trim
Upper partition slatsSemi-translucent frosted rigid slat panels
Edge protection2mm thick impact-resistant PVC edge banding on all exposed panel edges
Drawer slidesThree-section silent cold-rolled steel ball-bearing slides
Cabinet door hingesCold-rolled steel concealed adjustable hinges
Leveling feetNylon-base height-adjustable floor glides
Drawer pullsIntegrated recessed silver-toned metallic handles
Primary Connector SpecificationReference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seated work positionsThree separated curved knee-well positions for individual seated office work
Central integrated storageTwo pull-out file drawers and two lower closed cabinet doors at the L-bend
Privacy partitioningSemi-height slatted dividers separate adjacent workstations to reduce visual distraction
Cable management accessDesk surface grommets and under-partition cable trays route power and data cables
Floor leveling adjustmentIndividual base glides adjust to compensate for uneven office flooring
Modular expandabilityConnectable panel system allows reconfiguration to add or remove workstations
Drawer lockingCentral linked lock secures all storage drawers and cabinet doors for personal items
Quiet drawer operationSilent ball-bearing slides reduce operational noise during drawer opening and closing
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Packaging Volume0.8 m³/set
Reference Packaged Gross Weight120 kg/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open-plan office areasSuitable for 3-person team clusters in corporate open offices, providing individual privacy without full enclosure
Administrative and clerical departmentsIdeal for admin, finance or data entry teams requiring dedicated work surface and nearby file storage
Startup and co-working spacesModular design allows flexible layout changes for growing teams and shared work environments
Call center and customer service zonesSemi-height partitions reduce cross-talk distraction while maintaining supervisor visibility across the team
Government and public institution officesDurable commercial-grade construction meets high-volume daily use requirements for public sector workspaces
Recommended matching seatingPair with mid-back ergonomic task chairs with 500 mm adjustable seat height for proper ergonomic alignment
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Office work surface safety and strength requirementEN 527:2002+A1:2019
Office storage unit safety requirementEN 14073:2004
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

Office desk performance standardANSI/BIFMA X2021
Office panel system performance standardANSI/BIFMA X2016
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Formaldehyde emission limit for wood panelsGB 18580E1 grade, emission ≤0.124mg/m³
Office desk dimensional and strength requirementGB/T 3326
Office furniture durability test for storage unitsGB/T 10357.5
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. Formaldehyde emission limit for wood panels:GB 18580E1 grade, emission ≤0.124mg/m³;
2. Office desk dimensional and strength requirement:GB/T 3326;
3. Office furniture durability test for storage units:GB/T 10357.5;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · CUB-L3-2824-TCH

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · CUB-L3-2824-TCH

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CUB-L3-2824-TCH打开导出工具

页面快速操作

发布采购询价

产品描述

This 3-Person L-Shaped Modular Office Cubicle Workstation with Central Storage is a partitioned commercial-grade workstation configured in an L-shaped layout to support three independent seated work positions. Its visual design balances warmth and professional polish: the work surfaces carry a light taupe finish, while lower modesty and cabinet panels use a dark charcoal finish, complemented by metallic trim on privacy partition frames and integrated recessed silver-toned metallic drawer pulls. Semi-translucent frosted rigid slats form the upper section of semi-height privacy partitions, creating an open but visually separated workspace without creating a fully enclosed feel. The L-bend hosts a centralized integrated storage unit, anchoring the layout and putting shared storage within easy reach of all three users. Constructed with durable panel build, the workstation uses 25mm E1-grade melamine-faced MFC for work surfaces, with 2mm thick impact-resistant PVC edge banding protecting all exposed panel edges against daily wear. Privacy partitions feature powder-coated aluminum alloy frames, while lower cabinetry and modesty panels use 18mm melamine-faced MFC. Storage components are fitted with three-section silent cold-rolled steel ball-bearing drawer slides, cold-rolled steel concealed adjustable hinges, and nylon-base height-adjustable floor glides for stable placement. Practical functions are tailored to collaborative but focused office work: three separated curved knee-well positions deliver comfortable individual workspaces, while the central storage unit includes two pull-out file drawers and two lower closed cabinet doors secured by a central linked lock to protect personal items and work materials. Semi-height slatted dividers reduce visual distraction between adjacent seats, desk surface grommets and under-partition cable trays route power and data cords neatly, and individual base glides adjust to compensate for uneven flooring. The connectable modular panel system supports flexible reconfiguration, allowing users to add or remove workstations as team needs evolve. This workstation is well suited for a wide range of commercial spaces, including 3-person team clusters in corporate open-plan offices, administrative and clerical departments such as finance or data entry teams, growing startup and co-working spaces, call center and customer service zones where supervisor visibility is needed alongside reduced distraction, and government or public institution offices that require durable furnishings for high-volume daily use. It pairs optimally with mid-back ergonomic task chairs with adjustable seat height to support proper ergonomic alignment. For procurement, teams should note the product comes unbranded, includes a 5-year warranty, ships as one set across two cartons, and requires assembly before use. It is built to support the static load, abrasion resistance, and hardware cycle life standards expected of commercial office furniture, making it a reliable choice for long-term workspace deployments. Total gross weight and packaging volume should be accounted for in delivery and installation planning. The modular design also allows teams to scale workstation setups incrementally rather than committing to fixed, non-adjustable layouts, supporting long-term workspace flexibility.
