3-Person Curved Modular Office Cubicle Workstation Cluster Specifications

WKS-3P-CURV-1200

代码:MEWF7DV1
获取供应商报价
2026-09-03 18:04人气: 18
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

WKS-3P-CURV-1200

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

overall cluster footprint3600 x 1400 x 1200 mm
individual work surface height750 mm
per-station work surface size1200 x 1400 mm
work surface thickness25 mm
total partition height1200 mm
lower solid partition panel height700 mm
upper glass partition panel height500 mm
seated knee clearance height680 mm
knee clearance width per station600 mm
mobile pedestal dimensions per station400 x 500 x 600 mm
desktop cable grommet diameter60 mm
edge banding thickness2 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

distributed static desktop load per station150 kg
drawer slide static load per drawer25 kg
drawer slide cycle rating50000 cycles
hinge cycle rating80000 cycles
surface scratch resistance2000 revolutions
upper partition glass thickness8 mm
partition frame wall thickness1.5 mm
applicable user count3
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

work surface25mm melamine-faced MFC panel with 2mm PVC edge banding
partition frame1.5mm thick powder-coated aluminum alloy extrusion
lower partition panelB1 fire-rated melamine-faced particleboard, navy and light gray finish
upper partition panel8mm frosted perforated tempered glass
mobile pedestal body18mm melamine-faced MDF/particleboard with 3 drawer fronts
drawer slidesCold-rolled steel ball-bearing full-extension slides
leveling feetChrome-plated steel adjustable leveling glides
cable trunkingPowder-coated steel under-desk cable management tray
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
Primary Connector SpecificationReference M6-M8 with at least 2 fixing points per main support
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

workstation layoutLinear 3-position cluster with concave curved work surfaces for individual seated use
privacy partition designDual-layer divider with solid lower panel for noise reduction and glass upper panel for light transmission
storage configurationOne lockable 3-drawer mobile pedestal per station for personal document and supply storage
cable management systemOne 60mm desktop grommet per station paired with under-desk steel cable tray for wire routing
modular assemblyBolt-connected aluminum frame brackets allowing reconfiguration or individual station replacement
under-desk shelfIntegrated CPU/footrest shelf at each inner divider position
pedestal mobility4 swivel casters per mobile pedestal allowing easy repositioning under the desk
leveling adjustmentAdjustable steel glides to compensate for uneven floor surfaces across the cluster
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

open plan office spaceLinear cluster fits open office layouts to create defined individual work zones without full walls
small to medium business offices3-person unit provides compact dedicated workstations for startup and department teams
temporary or modular office fit-outsKnock-down design and modular connections allow fast installation and future reconfiguration
staff renovation projectsTwo-tone navy and light gray finish matches modern commercial office interior design schemes
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office work tables safety and strength requirements, applicable to work surface performance
EN 1335-1:2020Office work chair dimensional reference for matching seated clearance requirements
EN 1022:2018Furniture seating stability requirements for complementary task chair use
EN 12521:2015Furniture strength durability safety for domestic and non-domestic storage components
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk products performance standard for load, durability and stability testing
ANSI/BIFMA X5.9-2019Storage units performance standard for drawer pedestals and cabinet components
ANSI/BIFMA X7.1-2020Formaldehyde and TVOC emissions standard for low-emission panel materials
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to desk and panel components
GB/T 3325-2017Metal furniture general technical requirements, applicable to frame and hardware components
GB 8624-2012Reaction to fire classification for partition panels, B1 grade recommended for commercial office use
GB/T 4897.3-2015Particleboard requirements for dry-condition use, applicable to desk and pedestal panels
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to desk and panel components;
2. GB/T 3325-2017:Metal furniture general technical requirements, applicable to frame and hardware components;
3. GB 8624-2012:Reaction to fire classification for partition panels, B1 grade recommended for commercial office use;
4. GB/T 4897.3-2015:Particleboard requirements for dry-condition use, applicable to desk and pedestal panels;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · WKS-3P-CURV-1200

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · WKS-3P-CURV-1200

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · WKS-3P-CURV-1200打开导出工具

页面快速操作

发布采购询价

产品描述

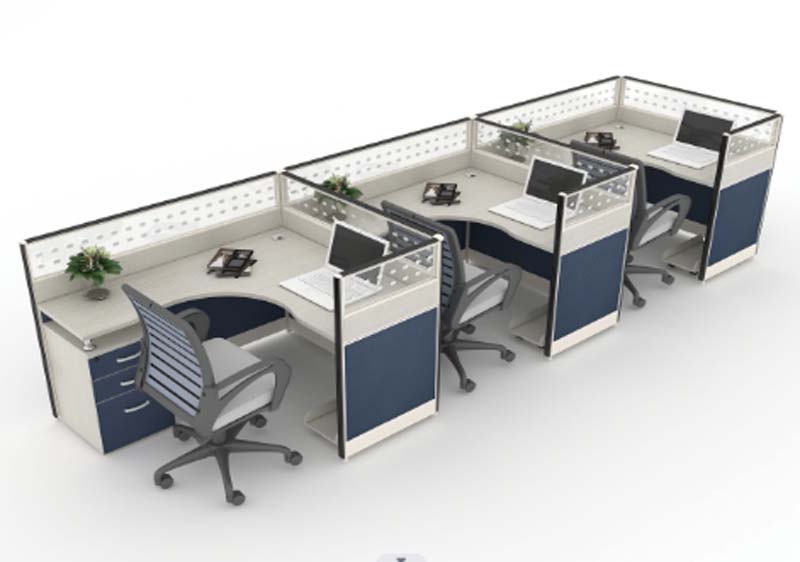

The KANAITE WKS-3P-CURV-1200 is a 3-person curved modular office cubicle workstation cluster designed to balance private, dedicated work space with open-plan connectivity. Visually, it forms a linear three-position cluster with concave curved work surfaces, paired with partial-height dual-layer privacy dividers that feature a two-tone navy and light gray solid lower section and a frosted perforated tempered glass upper section, lending a modern, streamlined aesthetic that supports both visual separation and shared ambient light. Each station is evenly spaced along the cluster, creating distinct individual work zones without the isolation of full-height wall partitions. The workstation is built for durable daily commercial use. Work surfaces are constructed from 25mm melamine-faced MFC panels with 2mm PVC edge banding, with load-bearing sections using a 40mm composite build-up for added stability. Partition frames use 1.5mm thick powder-coated aluminum alloy extrusions, connected via bolted brackets that enable modular reconfiguration. Lower divider panels are B1 fire-rated melamine-faced particleboard, while upper dividers use 8mm frosted perforated tempered glass. Each station includes a lockable 3-drawer mobile pedestal built from 18mm melamine-faced MDF and particleboard, fitted with cold-rolled steel ball-bearing full-extension slides and four swivel casters for easy repositioning. Additional structural details include chrome-plated steel adjustable leveling glides for uneven floors, and powder-coated steel under-desk cable management trays paired with desktop grommets for organized wire routing. Each position also includes an integrated under-desk shelf that doubles as a CPU rest and footrest. Functional design supports focused, convenient work: the 750mm work surface height provides standard seated ergonomic clearance, while the dual-layer dividers reduce cross-station noise through the solid lower panel and allow natural light transmission through the upper glass. Each mobile pedestal offers secure personal storage for documents and supplies, and the cable management system keeps power and data cords tucked out of sight. The bolt-together modular frame allows teams to reconfigure the layout or replace individual stations as needs change, without full unit replacement. This cluster is ideally suited for open-plan office spaces, where it creates defined individual work zones without permanent structural changes. It fits small to medium business offices and startup teams seeking compact dedicated workstations, as well as temporary or modular office fit-outs that require fast installation and flexible future adjustment. Its neutral two-tone finish also aligns with modern commercial interiors during staff area renovation projects. For procurement, note that each set ships with knock-down packaging, requires on-site assembly, and includes adjustable leveling feet to accommodate varied floor conditions. Buyers should plan for appropriate delivery handling to support the packaged unit weight, and confirm layout compatibility with the cluster’s linear footprint prior to ordering, as the modular connections support reconfiguration but require aligned adjacent units for secure installation.
