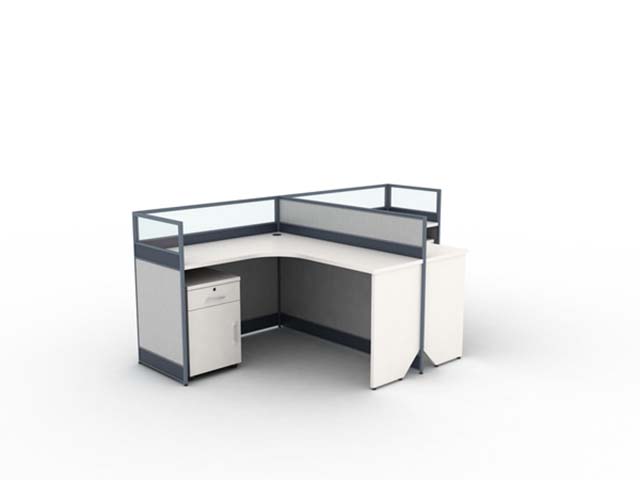

Two-Person L-Shaped Office Cubicle Workstation with Glass Privacy Partitions and Mobile Storage Pedestal Specifications

L2-CUB-GLS-01

代码:MHPGV8V1
获取供应商报价
2026-08-21 15:40人气: 28
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

L2-CUB-GLS-01

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions2840 x 1440 x 1200 mm
Work surface height750 mm
Single work surface depth600 mm
Single L work surface side length1500 mm
Work surface thickness25 mm
Partition panel thickness83 mm
Upper glass partition height350 mm
Lower privacy panel height650 mm
Knee well clearance height600 mm
Mobile pedestal dimensions400 x 500 x 600 mm
Cable grommet diameter80 mm
Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Individual work surface static load capacity150 kg
Product net weight125 kg
Recommended user count2
Surface abrasion resistance2000 cycles
Warranty period5 years
Leveler adjustment range15 mm
Reference Static Load150 kg depending on category
Moving-part Durability ReferenceAcceptance target 50000 cycles
Recommended Procurement WarrantyStructure 5 years; hardware 3 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Work surface substrateE1 grade melamine-faced particleboard
Work surface edge treatment2mm thick PVC edge banding
Partition frame materialPowder-coated dark gray aluminum alloy
Upper partition panel5mm thick clear tempered glass
Lower partition panelFrosted opaque melamine composite panel
Pedestal constructionWhite melamine-faced steel body with lockable drawers
Hardware connectorsZinc-plated steel modular joint brackets
Cable management componentsABS plastic grommets and under-desk raceways
Foot pads and levelersNylon base with adjustable steel screw
Primary Connector SpecificationReference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Cable management systemCorner surface grommet + under-desk raceway routes power and data cables
Mobile pedestal storageLockable top pencil drawer + lower file cabinet on 360-degree casters
Partition privacy designDual-height panels block seated sightlines while allowing overhead light transmission
Floor leveling functionAdjustable foot pads on all legs and partition bases compensate for uneven floors
Modular configuration compatibilityPanels connect to 2/3/4 person L/T/cross layout expansions
Knock-down assemblyFlat-pack components connect with included hardware without specialized tools
Pedestal mobilityFour swivel casters allow pedestal movement between work positions as needed
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Packaging Volume0.8 m³/set
Reference Packaged Gross Weight120 kg/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open plan office staff zonesCreates defined individual workspaces without full wall construction for 2 employees
Call center and customer service areasLow partitions reduce distraction while maintaining team visibility
Small startup team officesCompact L-shaped footprint fits 2 users in limited floor space
Administrative and back-office departmentsIntegrated storage and cable management supports daily document and device use
Temporary project team spacesModular design allows reconfiguration as team size or layout changes
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office work tables safety and strength requirements, applicable to work surface performance
EN 1023-1:1998Office storage furniture safety requirements, applicable to mobile pedestal units
EN 1335-1:2020Office furniture ergonomic reference for seated work surface dimensions
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk products performance standard for load and durability testing
ANSI/BIFMA X5.9-2019Storage units performance standard for mobile pedestal load and cycle testing
ANSI/BIFMA X7.1-2020Formaldehyde emission standard for low-emission office furniture materials
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to desk surface and cabinet components
GB/T 3327-2018Technical requirements for office desks, applicable to work surface dimensions and load ratings
GB 18580-2017Formaldehyde emission limits for wood-based panels, required for E1 grade substrate verification
GB/T 28007-2011Office furniture panel partition systems, applicable to partition structural performance
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to desk surface and cabinet components;
2. GB/T 3327-2018:Technical requirements for office desks, applicable to work surface dimensions and load ratings;
3. GB 18580-2017:Formaldehyde emission limits for wood-based panels, required for E1 grade substrate verification;
4. GB/T 28007-2011:Office furniture panel partition systems, applicable to partition structural performance;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · L2-CUB-GLS-01

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · L2-CUB-GLS-01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · L2-CUB-GLS-01打开导出工具

页面快速操作

发布采购询价

产品描述

The L2-CUB-GLS-01 is an unbranded two-person L-shaped office cubicle workstation designed to balance privacy, collaboration, and spatial efficiency for modern work environments. Visually, the unit features a structured dual-height partition system: dark gray powder-coated aluminum frames support 350mm tall clear tempered glass upper panels paired with 650mm tall frosted opaque melamine composite lower panels, creating a clean, open aesthetic that blocks seated sightlines to reduce distraction while allowing overhead light to filter across the workspace. The overall L-shaped layout forms two dedicated work positions, each with a 1500mm long, 600mm deep, 25mm thick work surface set at a standard 750mm desk height, finished in a neutral white tone that complements professional office interiors. Construction uses durable, commercial-grade materials: E1 grade melamine-faced particleboard forms the work surfaces, edged with 2mm thick PVC edge banding to resist impact and wear. Partition frames are built from powder-coated dark gray aluminum alloy, with zinc-plated steel modular joint brackets for structural stability, and nylon foot pads with adjustable steel screws at every leg and partition base. The included mobile storage pedestal features a white melamine-faced steel body, while cable management components are constructed from smooth, long-wearing ABS plastic. Each individual work surface supports a 150kg static load, with surface abrasion resistance rated for 2000 cycles of regular use. Practical functional features streamline daily work operations: integrated corner grommets and under-desk raceways neatly route power and data cables to reduce surface clutter. The lockable mobile pedestal includes a top pencil drawer and lower file cabinet mounted on 360-degree swivel casters, so it can move between work positions as needed. Adjustable foot pads offer 15mm of leveling travel to compensate for uneven floors, and the knock-down flat-pack design assembles in 40 minutes per set using included hardware, with no specialized tools required. The modular panel system is compatible with expansions to 2, 3, or 4-person L, T, or cross-shaped layouts to adapt to changing space needs. This workstation is well-suited for open-plan office staff zones, where it creates defined individual workspaces without permanent wall construction; call center and customer service areas, where its low partitions reduce distraction while retaining team visibility; small startup offices, where its compact L-shaped footprint fits two users in limited floor space; administrative and back-office departments, where integrated storage and cable management support daily document and device use; and temporary project team spaces that require flexible reconfiguration. For procurement, note the product ships as one set across two cartons, with a 5-year warranty covering manufacturing defects. When planning installations, account for the fixed overall footprint and ensure floor surfaces can support the unit’s 125kg net weight, plus the weight of stored items and equipment across the two work positions. The modular compatibility allows for bulk purchasing to scale workstations across large or growing teams, with consistent finish and connection standards across compatible units.
