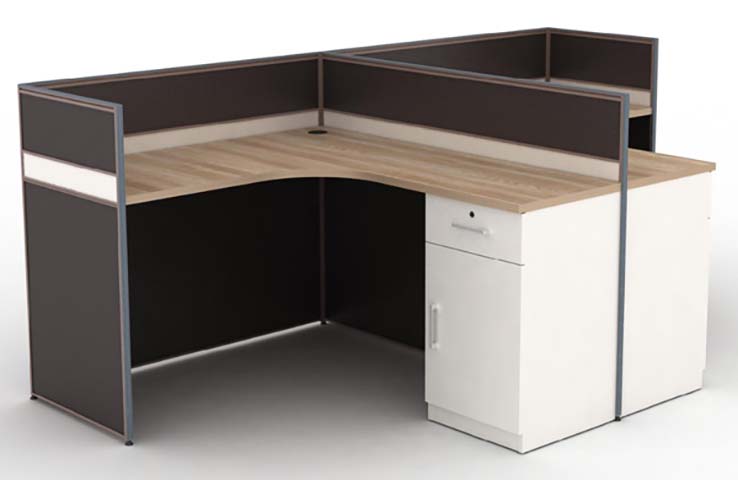

Single-Seat L-Shaped Curved Corner Office Cubicle Workstation with Low Dividers and Fixed Storage Pedestal Specifications

CW-L1412-LP-LD

代码:MTRBNBV1
获取供应商报价
2026-08-21 15:03人气: 23
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

CW-L1412-LP-LD

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall footprint (L-shaped)1400 x 1200 x 1100 mm
Work surface height above floor750 mm
Worktop thickness25 mm
Privacy partition height above worktop350 mm
Partition panel thickness83 mm
Seated knee well clearance height680 mm
Knee well width at curved corner800 mm
Storage pedestal depth600 mm
Storage pedestal width450 mm
Worktop grommet diameter60 mm
Modesty panel height under worktop400 mm
Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Worktop static uniform load capacity100 kg
Recommended user weight limit (seated use)150 kg
Unit net weight (assembled)95 kg
Melamine surface abrasion resistance2000 cycles
Leveling foot adjustment range15 mm
Reference Static Load150 kg depending on category
Moving-part Durability ReferenceAcceptance target 50000 cycles
Recommended Procurement WarrantyStructure 5 years; hardware 3 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Work surface25mm melamine-faced chipboard (MFC) with anti-scratch, water-resistant finish
Partition framePowder-coated aluminum alloy profile
Partition panelFabric-wrapped particleboard core, dark charcoal finish
Storage cabinet carcass18mm melamine-faced particleboard, off-white finish
Drawer front and cabinet door18mm melamine-faced MDF, matching off-white finish
Drawer and cabinet handlesChrome-plated steel pull handles
Drawer lockZinc alloy keyed cam lock
Partition leveling feetNylon base with steel threaded stem
Desk modesty panel15mm melamine-faced particleboard, dark finish
Cable grommetABS plastic round desk grommet
Primary Connector SpecificationReference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Three-sided low privacy dividersFrame-mounted panels separate individual work zone from adjacent stations without blocking overhead visibility
Fixed right-side storage pedestalIntegrated under-desk unit with 1 top lockable drawer and 1 lower hinged door cabinet for office supplies
Desktop cable managementRound recessed grommet routes monitor and power cables from work surface to under-desk area
Modular connection capabilityAluminum partition frames designed to connect to adjacent identical workstations for multi-seat office layouts
Adjustable leveling feetThreaded feet at partition bases adjust to stabilize unit on uneven commercial flooring
Keyed drawer lockSingle cam lock secures top drawer for personal item storage
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Packaging Volume0.8 m³/set
Reference Packaged Gross Weight120 kg/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open-plan office staff work areasLow dividers balance privacy and collaborative visibility for team-based office environments
Administrative and clerical workstationsL-shaped surface provides separate zones for computer work and document processing
Call center and shared office spacesModular design allows fast reconfiguration of seating layouts to match team size changes
Small business office setupsIntegrated storage reduces need for separate filing cabinets in compact office footprints
Temporary project team work zonesKnock-down design supports quick assembly and relocation for short-term project spaces
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office work tables safety and strength requirements, applicable to structural performance verification
EN 527-2:2016Office work tables mechanical safety test methods, applicable to stability and load testing
EN 13722:2004Office furniture storage units safety and strength requirements, applicable to pedestal cabinet verification
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Standard for desk products, applicable to worktop load, durability and stability verification
ANSI/BIFMA X5.9-2019Standard for storage units, applicable to pedestal drawer and cabinet performance testing
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to worktop and storage cabinet quality verification
GB/T 3327-2020Performance test for office desks, applicable to worktop load and stability testing
GB 18584-2001Indoor decoration material limit of harmful substances for wood-based furniture, applicable to formaldehyde emission verification
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to worktop and storage cabinet quality verification;
2. GB/T 3327-2020:Performance test for office desks, applicable to worktop load and stability testing;
3. GB 18584-2001:Indoor decoration material limit of harmful substances for wood-based furniture, applicable to formaldehyde emission verification;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · CW-L1412-LP-LD

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · CW-L1412-LP-LD

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CW-L1412-LP-LD打开导出工具

页面快速操作

发布采购询价

产品描述

The CW-L1412-LP-LD L-shaped single-seat curved corner office cubicle workstation from aibi furniture is a thoughtfully designed modular work solution tailored to balance personal focus, collaborative access, and space efficiency. The unit features a smooth curved L-shaped footprint, with three-sided low privacy dividers mounted to its powder-coated aluminum alloy partition frames. These dark charcoal fabric-wrapped particleboard panels sit above the work surface to define an individual work zone without blocking overhead visibility, supporting both focused task work and easy cross-team interaction. The workstation uses a coordinated two-tone finish, with a dark modesty panel and off-white integrated storage elements creating a polished, professional visual profile suited to modern work environments. Constructed from durable, functional materials, the work surface is made of 25mm melamine-faced chipboard with an anti-scratch, water-resistant finish, sized to deliver a comfortable 750mm work height with ample seated knee clearance. The fixed right-side under-desk storage pedestal is built from melamine-faced particleboard and MDF, fitted with chrome-plated steel pull handles and a zinc alloy keyed cam lock to secure the top drawer for personal items, while the lower hinged door cabinet offers dedicated space for office supplies, eliminating the need for separate auxiliary storage in compact layouts. Additional construction details include nylon-base leveling feet with steel threaded stems to stabilize the unit on uneven commercial flooring, and a round recessed desktop cable grommet that routes power and monitor cords neatly to the under-desk area to reduce surface clutter. This workstation is well suited for a range of commercial spaces, including open-plan office staff work areas where low dividers balance privacy and collaborative visibility, administrative and clerical zones where the L-shaped surface supports separate areas for computer work and document processing, call centers and shared offices where modular connections between identical units allow fast layout reconfiguration to match shifting team sizes, small business offices where integrated storage saves limited square footage, and temporary project work zones where its knock-down design supports quick assembly and relocation. For procurement teams, key considerations include noting the unit ships in two cartons per set, with a reference assembly time of 40 minutes per station; the modular aluminum frames are purpose-built to connect to matching units for scaled multi-seat layouts, so teams planning phased office expansions can standardize on this model for consistent, flexible workspace design. The fixed storage configuration and low partition height should be aligned with workspace privacy needs and storage requirements prior to order placement to ensure the unit matches intended use cases.
