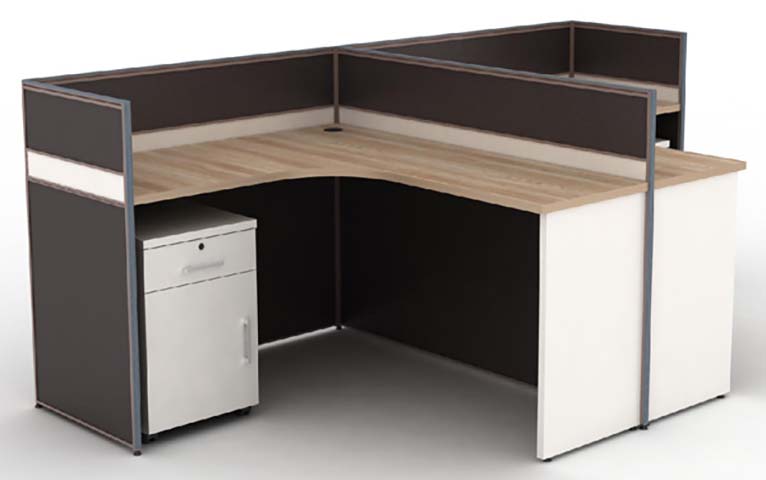

Modular L-Shaped Corner Office Cubicle Workstation with Lockable Mobile Pedestal Specifications

CUB-L1400-WKSTN

代码:PTHCH5V1
获取供应商报价
2026-08-21 14:56人气: 24
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

CUB-L1400-WKSTN

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall station dimensions1600 x 1400 x 1200 mm
Desk work surface height750 mm
Worktop thickness25 mm
PVC edge banding thickness2 mm
Privacy divider panel thickness60 mm
Aluminum divider frame thickness1.5 mm
Seated knee clearance width800 mm
Seated knee clearance height620 mm
Mobile pedestal dimensions400 x 500 x 600 mm
Cable grommet diameter80 mm
Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Work surface static load capacity150 kg
Fabric panel noise reduction coefficient0.8
Work surface abrasion resistance2000 cycles
Unit net weight85 kg
Recommended user weight capacity120 kg
Structural warranty8 years
Reference Static Load150 kg depending on category
Moving-part Durability ReferenceAcceptance target 50000 cycles
Recommended Procurement WarrantyStructure 5 years; hardware 3 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Work surfaceE1 grade particleboard with wood-grain melamine laminate
Divider framePowder-coated aluminum alloy extrusions
Privacy panel infillDark fabric-upholstered tackable composite board
Edge trim2mm thick PVC edge banding
Mobile pedestalWhite melamine-finish engineered wood with steel lock core
Pedestal casters50mm diameter nylon swivel casters with brake
Support feetAdjustable nylon glide feet
Hardware fastenersZinc-plated steel cam lock and bolt fittings
Cable grommetABS plastic cable port
Primary Connector SpecificationReference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Cable managementSurface-mounted grommet routes power and data cables from worktop to floor
Mobile pedestal storageLockable 2-drawer cabinet rolls under desk for flexible file and supply storage
Modular partition connectionAluminum frame joins adjacent workstations for multi-seat open office layouts
Seated privacy screening1200mm tall fabric dividers block seated line of sight between adjacent users
Adjustable levelingGlide feet adjust by 15mm to stabilize desk on uneven flooring
Tackable panel surfaceFabric divider panels accept push pins for posting documents and notes
Knock-down assemblyFlat-pack design allows on-site assembly with standard hand tools
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Packaging Volume0.8 m³/set
Reference Packaged Gross Weight120 kg/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open plan office staff work areasModular connected units create structured individual work zones with acoustic and visual privacy
Call center and administrative departmentsPartial-height dividers reduce distraction while maintaining supervisor sightlines
Educational institution faculty officesDurable construction and integrated storage suit daily document processing work
Small business startup officesScalable modular design supports incremental workstation expansion as headcount grows
Government agency workspacesNeutral wood/white/charcoal color scheme matches standard office furnishing requirements
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office worktables safety and strength requirements, applicable for work surface load and stability verification
EN 13986:2004+A1:2015Wood-based panels for structural use, applicable for worktop and partition panel performance validation
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk products safety and performance standard, applicable for structural load and durability validation
ANSI/BIFMA X5.9-2019Storage units performance standard, applicable for mobile pedestal drawer load and lock testing
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable for worktop and storage panel performance verification
GB/T 18580-2017Formaldehyde emission limits for wood-based panels, required for E1 grade board compliance verification
GB/T 35607-2017Green product assessment standard for furniture, applicable for environmental specification validation
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable for worktop and storage panel performance verification;
2. GB/T 18580-2017:Formaldehyde emission limits for wood-based panels, required for E1 grade board compliance verification;
3. GB/T 35607-2017:Green product assessment standard for furniture, applicable for environmental specification validation;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · CUB-L1400-WKSTN

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · CUB-L1400-WKSTN

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CUB-L1400-WKSTN打开导出工具

页面快速操作

发布采购询价

产品描述

The Modular L-Shaped Corner Office Cubicle Workstation with Lockable Mobile Pedestal from aibi furniture, model CUB-L1400-WKSTN, delivers a structured, space-efficient corner work solution designed to balance open-plan collaboration needs with individual user privacy. Its L-shaped layout fits neatly into corner floor positions, anchored by 1200mm tall dark fabric-upholstered privacy dividers mounted on powder-coated aluminum alloy extrusion frames. The dividers block seated line of sight between adjacent users to reduce distraction, while their tackable composite infill accepts push pins for posting documents, notes, and quick reference materials. The work surface is constructed from E1 grade particleboard finished with wood-grain melamine laminate, edged with 2mm thick PVC banding to resist impact damage, and supported by zinc-plated steel cam lock and bolt fittings for structural rigidity. Adjustable nylon glide feet allow 15mm of height adjustment to stabilize the unit on uneven flooring, while a surface-mounted ABS plastic cable grommet routes power and data cables neatly from the worktop down to floor level to eliminate cord clutter. Included with the workstation is a lockable 2-drawer mobile pedestal, built from white melamine-finish engineered wood with a steel lock core, mounted on 50mm diameter nylon swivel casters with brakes that allow the unit to roll smoothly under the desk for flexible, secure storage of files and office supplies. The fabric privacy panels deliver a noise reduction coefficient of 0.8 to dampen cross-station ambient sound, supporting focused work in busy shared spaces. The work surface supports a 150kg static load, with 25mm thickness, 750mm standard work height, and 800mm width, 620mm height seated knee clearance to accommodate comfortable long-duration use. The unit is delivered as a flat-pack set across two cartons, with assembly taking 40 minutes per set using standard hand tools; adjacent units connect via the aluminum divider frame to scale into multi-seat layouts for open plan staff work areas, call centers, and administrative departments where partial-height dividers maintain supervisor sightlines while cutting down on distraction. It is equally well suited for educational institution faculty offices, small business startup spaces that need scalable furnishing as headcount grows, and government agency workspaces, as its neutral wood, white, and charcoal color palette aligns with standard office furnishing guidelines. Procurement teams should note the unit’s 85kg net weight, 120kg packaged gross weight, 0.8 cubic meter packaging volume per set, 120kg recommended user weight capacity, 2000-cycle work surface abrasion resistance, and 8-year structural warranty when planning deployment and layout adjustments.
